Description

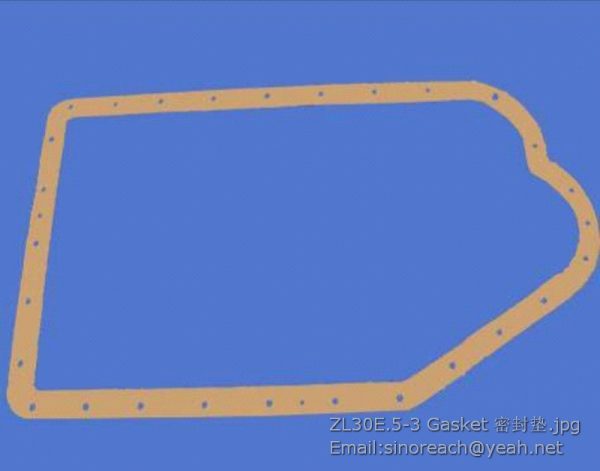

LONKING ZL30E.5-3 Gasket

LG853.03.01.07 倒挡一挡主动片总成 Reverse gearⅠ driving disc assembly 8 403012-013
LG853.03.01-007 倒挡一挡从动片 Reverse gearⅠ driven disc 8 403011
GB/T893.1 挡圈 90 Sprag 90 1
LG853.03.01-008 固定板 Fixing board 1 403023
LG853.03.01.08 摩擦片隔离架总成 Friction plate separating frame assembly 1 403014-015
LG853.03.01-009 圆柱销 Column pin 1 403022
LG853.03.01-010 弹簧销轴 Spring pin 15 403016
LG853.03.01-011 弹簧 Spring 15 403017
LG853.03.01.09 倒挡活塞总成 Reverse gear piston assembly 1 403018A-020A
LG853.03.01-012 密封垫片 Seal gasket 1set 403021
LG853.03.01.10 变速泵总成 Transmission pump assembly 1 403600
LG853.03.01-013 转向泵驱动齿轮 Steering pump drive gear 1 403056
GB/T894.1 挡圈90 Sprag 90 1
LG853.03.01-014 转向油泵驱动轴 Steering pump drive shaft 2 403055D
GB/T1096 键14×36 Key 14×36 1
GB/T276 球轴承6210N Ball bearing 6210N 1 55×100×21
LG853.03.01-015 轴承套 Shaft sleeve 1 403057
GB/T276 球轴承 6211 Ball bearing 6211 1 55×100×21
LG853.03.01-016 密封垫 Gasket 1set 403058
GB/T93 垫圈12 Washer 12 8
GB/T6170 螺母M12 Nut M12 8
GB/T898 双头螺栓M12×30 Stud M12×30 8

LG855.03.01-002 制动盘 Brake disc 1 LG50F.09004A
GB/T5786 螺栓M16×1.5×45 Bolt M16×1.5×45 8
GB/T93 垫圈 16 Washer 16 8
GB/T97.1 垫圈 16 Washer 16 8
LG855.03.01.03 钳式制动器 Disc brake 1 TC5Z(A)

GB/T5782 螺栓18×40 Bolt 18×40 8
GB/T93 垫圈 18 Washer 18 8
LG853.03.01.11 连接座总成 Connecting support assembly 2 403032-034
GB/T825 吊环螺钉M18 Lifting eye bolt M18 2
GB/T119 销10s7×30 Pin 10s7×30 2
LG853.03.01.12 透气阀总成 Vent valve assembly 1 ZL30E.5.20
LG853.02.01-011 螺塞 Plug screw 1 402223
LG853.03.01-017 圆柱堵塞 Column stopper 1 403028
GB/T5782 螺栓M10×70 Bolt M10×70 13
LG853.03.01.13 变速操纵阀总成 Speed control valve assembly 1 403700
LG853.03.01-018 密封垫 gasket 1 403029
13050-010 检油塞Z1/4 Oil-check plug Z1/4 2
GB1235-76 O型密封圈φ45×3.5 O-ringφ45×3.5 1
LG855.03.01.02 加油管总成 Oil filling pipe assembly 1 403059-064D
LG853.03.01-019 压板 Press plate 1set 407021A
LG853.02.01-004 铜垫圈 Copper washer 2 402106
LG853.02.01-005 管接头 Pipe connector 2 402111A
LG853.03.01-020 铭牌 Name plate 1 403063
