Description

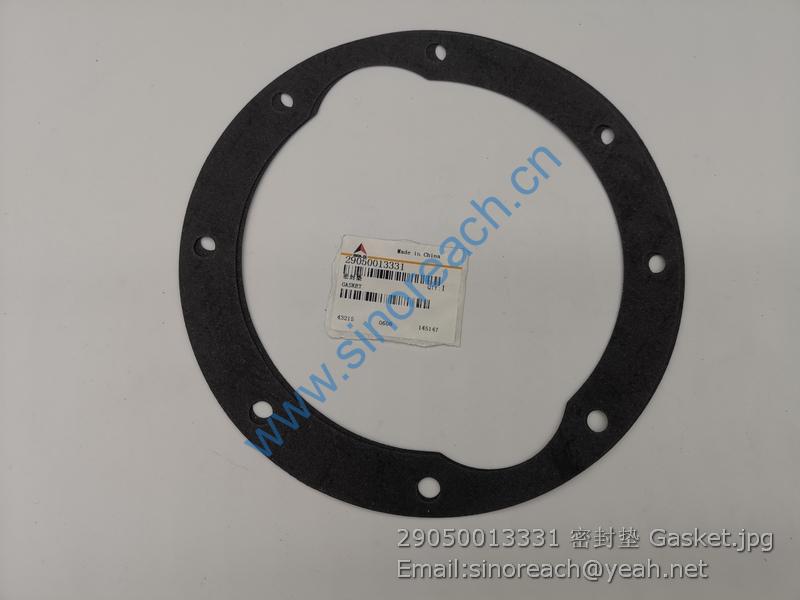

29050013331 Gasket

1 4120001739080 内钳体FY10754M.00001 Pliers N 1
2 4120001739081 活塞FY10754B.00004 Piston Y 4
3 4120001739082 矩形密封圈FY10754B.00007 Gasket Y 4
4 4120001739096 防尘罩FY50.05 Sealing ring Y 4
5 4120001739084 外钳体FY10754M.00002 Brake caliper N 1
6 4120001739085 O型圈19.5X3.5 O-ring Y 2
7 4120001739086 螺栓M22X110 Screw Y 4
8 4015000087 垫圈GB93-22-65Mn Spring washer Y 4
9 4120001739087 组合垫圈14 Washer Y 2
10 4120001739088 放气嘴座FY10754M.00003 Support N 2
11 4120001740 放气嘴 Nipple Y 2
12 4120001739089 制动片FY10754B.01000 Brake plate N 2
13 4120001739090 销子FY10754M.00006 Pin Y 2
14 4120001739091 开口销GB91-3.2*25EpZn-Q235A Split pin Y 2
15 4120001739092 放气座堵塞FY10754M.00008 Plug N 2
16 4120001739093 堵塞FY10754M.00007 Plug N 1

1 4011000568 螺栓GB5786-M12*1.25*40EpZn-10.9 Bolt Y 24
2 4013000072 螺母GB889.2-M12*1.25EpZn-10 Lock nut Y 24
3 4110001980 前传动轴 Propeller shaft Y 1
4 4110000487 中间支承 Bearing Y 1
5 4011000241 螺栓GB5785-M14*1.5*55EpZn-8.8 Bolt Y 4
6 4013000073 螺母GB889.2-M14*1.5EpZn-8 Lock nut Y 4
7 4015000177 垫圈GB97.1-14EpZn-300HV Washer Y 4
8 4110001050 中间传动轴CDZP-663 Propeller shaft Y 1
9 4011000957 螺栓GB5786-M14*1.5*35EpZn-10.9 Screw Y 8
10 4015000027 垫圈GB93-14-65Mn Spring washer Y 8
11 4011000431 螺栓GB5785-M12*1.25*50EpZn-8.8 Bolt Y 8
12 4015000026 垫圈GB93-12-65Mn Spring washer Y 8
13 4110000851 后传动轴CDZK-524.7 Propeller shaft Y 1
14 4110002066001 突缘叉1491.707-2201062-I Link yoke Y 2
15 4110002086003 油杯M6 JB/T7940.1-1995 Grease cup N 1
16 4110002515002 卡簧1491.707-2201063 Lock ring Y 8
17 4110002097001 万向节十字轴0125-52133 Spider N 2
18 4110000850001 突缘叉1491.707-2201062-A30 Link yoke Y 1
19 4120003178016 油杯M6 GB1152-89 Lubricating nipple Y 1
20 4110001950008 螺栓 1/2″20UNF Screw Y 8
21 4120001054234 垫圈GB93-87 12 Washer Y 8
22 2908000753001 万向节十字轴总成G5-7126 Spider Y 2

1 29070000021 车轮总成 Wheel assembly N 2
2 4190000237 轮辋LG19.50/2.5-25 Rim Y 2
3 4110000006 轮胎GB2980-23.5-25 Tire N 2
4 29090008461 A510后驱动桥总成 Rear axle Y 1
5 29090001031 后桥螺栓 Screw Y 8
6 4013000064 螺母GB889.2-M30*2EpZn-8 Lock nut Y 8

1 29090009151 轮边减速器 Hub reduction N 2
2 4120001739 制动钳 Brake caliper Y 4
3 4120001740 放气嘴 Nipple Y 8
4 29090008481 半轴 Shaft half Y 2
5 4110000818 透气嘴 Nozzle Y 1
6 4011000126 螺栓GB5786-M16*1.5*40EpZn-8.8 Bolt Y 14
7 4015000098 垫圈GB93-16-65Mn Spring washer Y 14
8 29090008491 后主传动总成 Final drive Y 1
9 29090007651 后桥壳总成 Axle casing Y 1
10 4015000030 垫圈GB93-20-65Mn Spring washer Y 36
11 29070000101 螺栓 Bolt Y 16
12 29070001071 制动盘 Brake disc Y 2
13 29070000081 轮辋螺母 Nut Y 20
14 4011000130 螺栓GB5786-M20*1.5*50EpZn-8.8 Bolt Y 20
15 29070012481 磁性螺塞 Plug Y 2
16 29090008531 后桥标牌 Name plate N 1
17 4019000012 铆钉GB827-3*5-BL2 Rivet Y 4
