Description

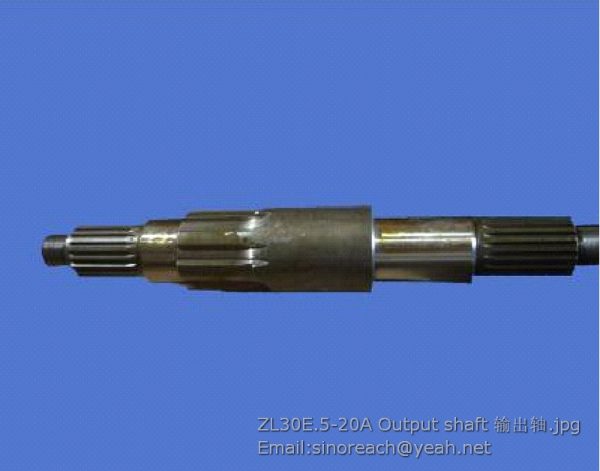

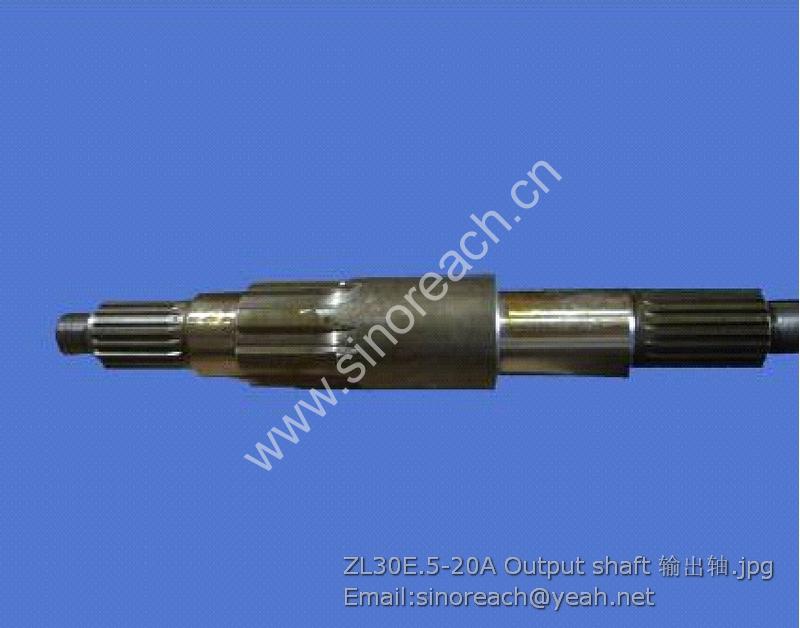

LONKING ZL30E.5-20A Output shaft

GB/T5783 螺栓M10×30 Bolt M10×30 4
GB/T93 垫圈10 Washer 10 24
GB/T97.1 垫圈10 Washer 10 4
LG856.06I.02 全液压转向机 Hydraulic steering gear 1
LG853.06-003 转向机接头体 Steering gear adapter 4 506001C
JB1002-77 垫圈20 Washer 20 4
LG853.06-004 压板 Press plate 1
GB/T5783 螺栓M10×42 Bolt M10×42 2
90F-F/25/28-2S-L940 优先阀分流胶管 Priority valve distributing hose 1
GB1235-76 O形圈38×3.5 O-ring 38×3.5 1
90H-F(32)/25/28-2S-
L570 优先阀进油胶管 Priority valve oil inlet hose 1
GB1235-76 O形圈45×3.5 O-ring 45×3.5 3
LG853.07-007 压板 Press plate 3
GB/T5783 螺栓M10×35 Bolt M10×35 20
P5100-F80NL457.97G 转向泵 Steering pump 1
LG853.06-001 密封垫 Gasket 1
H-H/19/18-I-L3600 转向机至冷却器胶管 Hose from steering gear to cooler 1
H-H/19/18-I-L2300 冷却器回油胶管 Cooler oil return hose 1
LG855.02.02-001 接头体 Adapter 2 306016D
JB1002-77 垫圈27 Washer 27 2
GB/T93 垫圈12 Washer 12 12
GB/T97.1 垫圈12 Washer 12 4

GB/T6170 螺母M12 Nut M12 8
GB/T3452.1-1992 O形圈46.2×3.55 O-ring 46.2×3.55 1
GB/T5783 螺栓M12×40 Bolt M12×40 4
LG855.06.01 转向泵进油钢管 Steering pump oil inlet pipe 1 506002-003C
LG855.06.02 转向泵出油钢管 Steering pump oil outlet pipe 1 506004-004C
φ51×4-L520 吸油胶管 Oil suction hose 1
JB/T8870-1999 喉箍(φ55—71) Hoop (φ55—71) 2
LG855.06.04 后车架转向过渡钢管 Rear frame turning transition pipe 1 506005-006C(long)
LG855.06.05 后车架转向过渡钢管 Rear frame turning transition pipe 1 506005-006C(short)
LG853.06-005 后车架转向过渡接头压板 Rear frame turning transition connector press plate 2 506007C
H-H/19/18-II-L1252 转向机AB口出油胶管 Steering gear port A,B oil outlet hose 2
H-H/19/18-II-L1152 转向油缸进油胶管 Steering cylinder oil inlet hose 2
90H-H-8/8-Ⅱ-L800 (M14×1.5) 转向传感/优先阀泄漏胶管 Steering sensing/priority valve leakage hose 2
LG855.06.06 右转向油缸小腔钢管 Right steering cylinder small chamber pipe 1 LG50F.06004-004A
JB999-77 管接头用铰接螺栓M22×1.5×48 Articulating bolt for pipe connector M22×1.5×48 4
JB1002-77 垫圈22 Washer 22 8
LG856.06.15 左转向油缸 Left steering cylinder 2
H-H/19/18-II-L685 转向油缸间胶管 Hose between steering cylinder 4
LG855.06.07 右转向油缸大腔钢管 Right steering cylinder big chamber pipe 1 LG50F.06001-003A
