Description
LONKING ZL30E.5.1-7 Seal ring
JB982-77 组合垫圈10 Combined washer 10
ZL30E.5.12A 倒退挡油管 Reverse gear oil pipe
ZL30E.5.14A 二挡油管 Gear Ⅱ oil pipe
ZL30E.5.15A 一挡油管 Gear Ⅰ oil pipe
ZL30E.5.16A 倒挡润滑油管 Reverse gear lubrication oil tube
GB5626.2-85 接头体A8 Adapter A8
ZL30E.5G.21 回油控制阀 Oil-return control valve
ZL30E.5-18 接头 Connector
GB/T5782-2000 螺栓M16×40 Bolt M16×40
GB/T93-1987 垫圈16 Washer 16
ZL30E.5.18A 一轴润滑油管 Shaft Ⅰ lubrication oil pipe
GB5629.2-85 接头体A10 Adapter A10
ZL30E.5.19A 三轴润滑油管 Shaft Ⅲ lubrication oil pipe
ZL30E.5.6 支架 Bracket
ZL30E.5.13 加油管总成 Oil-filling assembly
ZL30E.5-22 制动支座 Brake bracket
ZL30E.5-21 制动立支座 Vertical brake bracket
ZL30E.5-32 密封垫 Seal gasket
ZL30E.5-29 调整垫圈 Adjusting washer
HG4-339-66 骨架油封55×80×12 Frame oil seal 55×80×12
ZL30E.5-25 垫圈 Washer
ZL30E.5-30 密封垫 Seal gasket
JB980-80 尼龙锁紧螺母M24×1.5 Nylon lock nut M24×1.5
ZL30E.5-27 输入法兰 Input flange
ZL30E.5-28 油封盖 Oil seal cover
ZL30E.5-17A 端盖 End cover
ZL30E.5-23 后轴承端盖 Rear bearing end cover
HG4-339-66 骨架油封60×85×12 Frame oil seal 60×85×12
ZL30E.5-24 后输出法兰 Rear output flange
ZL30E.5-20A 输出轴 Output shaft
ZL30E.5.7(ZL30E.5B1.2) 滤清器总成 Filter assembly
GB/T5782-2000 螺栓 M10×40 Bolt M10×40
402223 螺塞Z3/4″ 1″ Plug Z3/4″ 1″
T305C-010 检油塞Z1/4″ 2″ Oil check Z1/4″ 2″
ZL30E.5.1-9 丝堵 Plug
ZL30E.5.22A 三档油管 Gear Ⅲ oil pipe
GB/T276-94 轴承6209 Bearing 6209 4 φ45×φ85×19
ZL30E.5.1-1 一轴前进挡齿轮 Shaft Ⅰ forward gear 1
GB893.1-86 挡圈85 Spacer 85 4
ZL30E.5.1-2 轴套 Shaft sleeve 2
GB894.1-86 挡圈52 Spacer 52 2
ZL30E.5.1-3 压板 Press plate 2
GB893.1-86 挡圈150 Spacer 150 2
ZL30E.5.1-8 离合器活塞压板 Clutch piston press plate 2
ZL30E.5.1-13 离合器被动片 Clutch driven plate 12 ZL30E.10.5.1-6
ZL30E.5.1-12 离合器主动片 Clutch driving plate 12 ZL30E.10.5.1-3
ZL30E.5.1-4 回位弹簧 Return spring 2
ZL30E.5.1.1 活塞组件 Piston components 2
ZL30E.5.1.2 一轴离合器毂体 Shaft Ⅰ clutch hub body 1
ZL30E.5.1-5 一轴倒挡齿轮 Shaft Ⅰ reverse gear 1
ZL30E.5.1-6 轴套 Shaft sleeve 1
ZL30E.5.1-10 调整垫圈 Adjusting washer 1set
GB/T283-94 轴承NF308 Bearing NF308 2 φ40×φ90×23

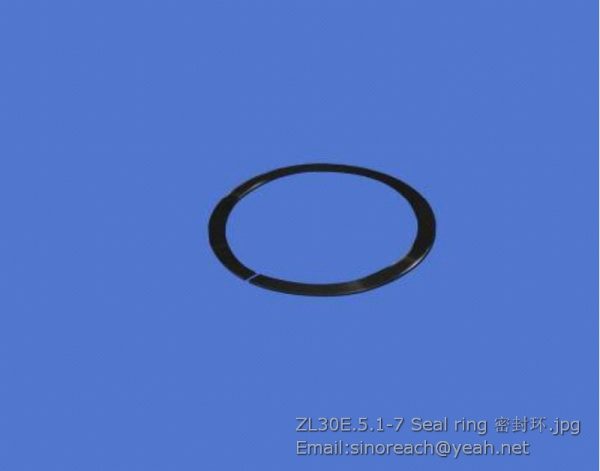

ZL30E.5.1-7 密封环 Seal ring 3
ZL30E.5.1-9 丝堵 Plug 2
ZL30E.5.1-11 轴套 Shaft sleeve 1
