Description

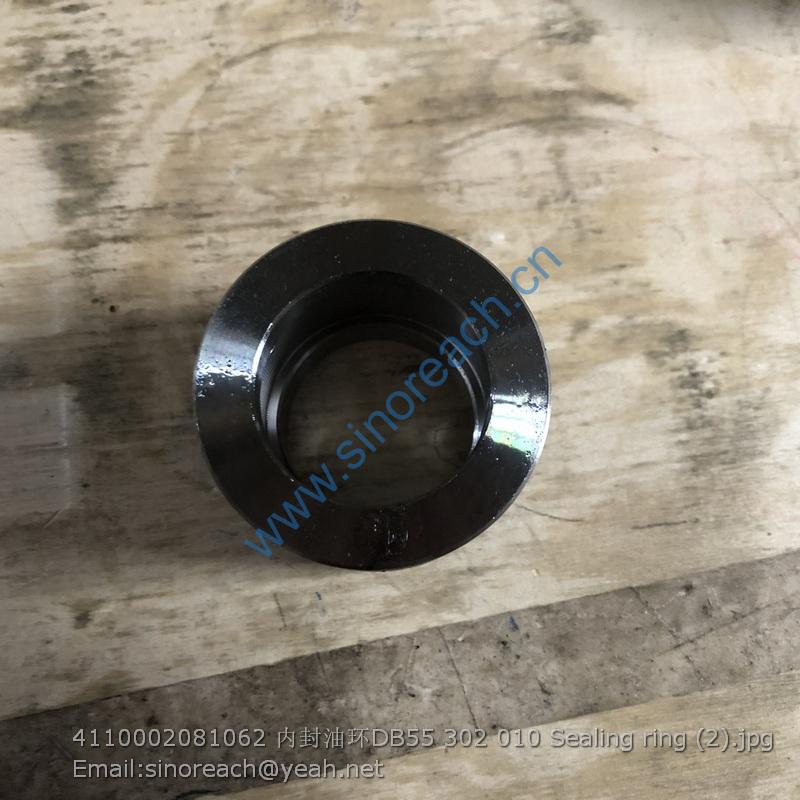

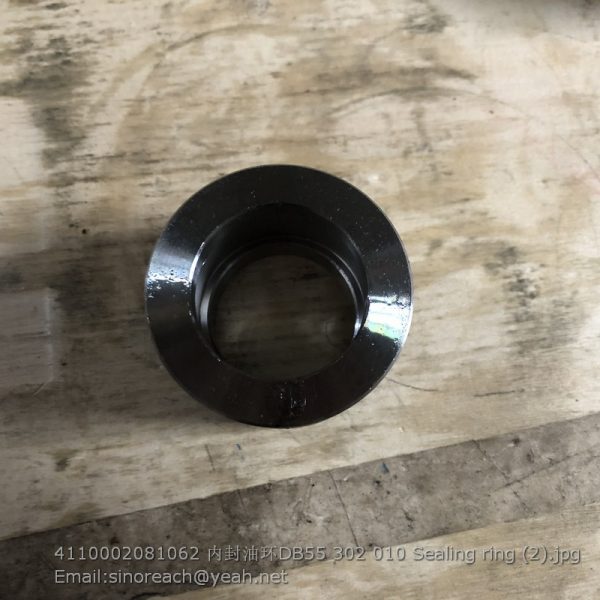

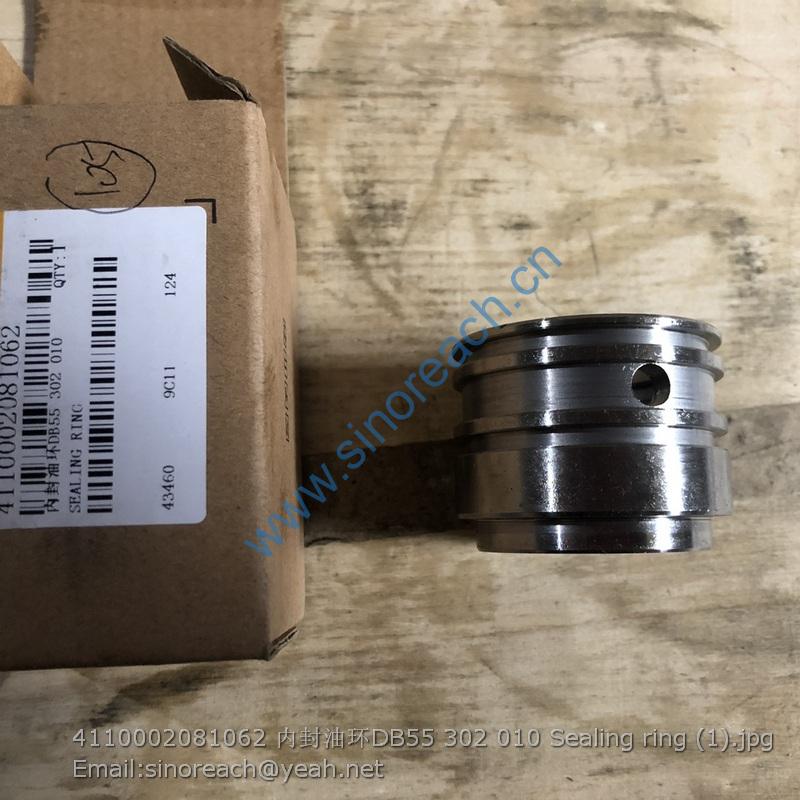

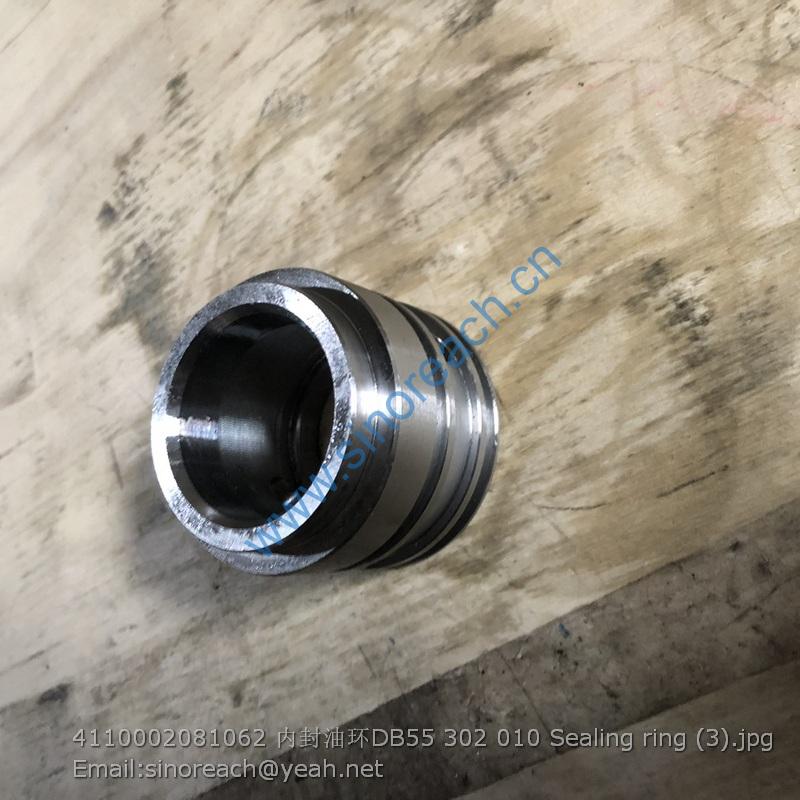

4110002081062 Sealing ring DB55 302 010 FOR SDLG LOADER PARTS

1 4013000190 螺母GB6173-M14*1.5EpZn-05 Nut Y 2
2 4015000027 垫圈GB93-14-65Mn Spring washer Y 2
3 4015000479 P-垫圈GB848-14EpZn-300HV Washer Y 2
4 4120000365020 双头螺栓M14X1.5X273-DL20-8.00 Stud N 1
5 4013000137 螺母GB6173-M12*1.25EpZn-05 Nut Y 4
6 4015000026 垫圈GB93-12-65Mn Spring washer Y 4
7 4015000004 垫圈GB848-12EpZn-300HV Washer Y 4
8 4120000365022 双头螺栓M12X1.25X273-DL20-9.00 Stud N 2
9 4120000365103 进油阀体DL20-1.01a Valve body N 1
10 4030000024 O形圈GB3452.1-26.5*2.65G O-ring Y 3
11 4120000365104 螺塞DL20-7.03 Plug Y 2
12 4120000365105 内六角堵头4WN-14WD M14x1.5 Plug Y 1
13 4120000365106 螺塞DL20-7.03a Plug Y 1
14 4120000365107 安全阀XDYF25-01 Safety valve Y 1
15 4030001223 P-O形圈GB3452.1-87.5*3.55G O-ring Y 4
16 4014000058 螺钉GB70.1-M6*20EpZn-8.8 Screw Y 24
17 4015000480 P-垫圈GB859-6-65Mn Washer Y 24
18 4120001964001 定位端盖DL20-U2.06 Valve cover Y 4
19 4030001267 P-O形圈GB3452.1-34.5*2.65G O-ring Y 6
20 4120000365109 定位螺钉DL20-2.05 Screw Y 4
21 4120001964002 弹簧座DL20-U2.03 Spring seat Y 8
22 4120001964003 弹簧DL20-U2.04-Φ32 XΦ3.7 X42 Spring Y 4
23 4120000365115 二次溢流阀XDYF20-02 Relief valve Y 2
24 4120001964004 阀体DL20-U2.07 Valve body Y 1
25 4120000365043 O型滑阀DL20-2.08a-01 Valve N 2
26 4120000365117 单向阀DL20-2.02 Non-return valve Y 3
27 4120000365118 弹簧DL20-2.01 Φ11.2 *Φ0.7 *32 Spring Y 3
28 4120001964005 定位端盖ⅠDL20-U3.01 Valve cover Y 1
29 4120001964006 定位螺钉DL20-U3.03 Screw Y 2
30 4120001964007 弹簧座ⅠDL20-U3.02 Spring seat Y 2

31 4120001964008 弹簧DL20-U3.04-Φ31.7 XΦ3.9 X48.5 Spring Y 2
32 4120001964009 弹簧座ⅡDL20-U3.07 Spring seat Y 2
33 4120001964010 阀体DL20-U3.05 Valve body Y 1
34 4120001964011 Q型阀杆DL20-U3.06 Valve rod Y 1
35 4120001964012 定位端盖ⅡDL20-U3.08 Valve cover Y 1
36 4120001964013 阀体DL20-U2.07b Valve body Y 1
37 4120001964014 回油阀体DL20-7.01c Valve body Y 1
38 4120000365128 螺塞DL20-7.02 Plug Y 1
39 4030000097 O形圈GB3452.1-23.6*2.65G O-ring Y 1

1 4120002027005 顺序阀座DXS-18-01 Valve seat Y 2
2 4120002027006 计量阀座DXS-16-04 Valve seat Y 3
3 4120002027007 O型圈18X1.8GB3452.1-82 O-ring Y 3
4 4120002027008 O型圈12.5X1.8GB3452.1-82 O-ring Y 3
5 4120002027009 弹簧DXS-16-01 Spring Y 3
6 4120002027010 阀芯座DXS-16-02 Seat Y 3
7 4120002027011 计量阀芯DXS-16-03 Valve rod Y 3
8 4120002027012 销φ2.5X12GB879-86 Pin Y 4
9 4120002027013 R1/8螺堵DXS-22 Plug Y 4
10 4120002027014 弹簧座DXS-10-05 Spring seat Y 4
11 4120002027015 弹簧DXS-17 Spring Y 4
12 4120002027016 计量弹簧DXS-10-04 Spring Y 4
13 4120002027017 弹簧座DXS-10-06 Spring seat Y 4
14 4120002027018 钢丝挡圈DXS-10-03 Retaining ring Y 4
15 4120002027019 弹性圆柱销φ2X10GB879-86 Pin Y 4
16 4120002027020 O型圈22.4X2.8GB3452.1-82 O-ring Y 4
17 4120002027021 盖DXS-10-02-01 Cover Y 4
18 4120002027022 塑料塞DXS-10-02-02 Plastic plug Y 4
19 4120002027001 C1型密封件10X16X6 C1 10 Sealing ring Y 4
20 4120002027023 密封圈盖DXS-10-07 Sealing cover Y 4
21 4120002027024 弹性挡圈17GB893.1-86 Retaining ring Y 4
22 4120006641001 电磁铁DXS-13d Magnet Y 3
23 4120002027025 压销DXS-05-01 Pin Y 4
24 4120002027026 钢球9/32”GB308-84 Ball Y 4
25 4120000370018 轴套DXS-11 Bushing Y 1
26 4120002027027 螺塞DXS-21 Plug Y 1
27 4120002027028 导向套DXS-19 Guide ring Y 1
28 4120002027029 弹簧DXS-20 Spring Y 1
29 4120002027031 弹簧座DXS-18-03 Spring seat Y 1
30 4120002027032 顺序阀芯DXS-18-02 Valve spindle Y 1

31 4120000370013 阀体DXS-08 Valve body Y 1
32 4120002027034 O型圈16X1.8GB3452.1-82 O-ring Y 2
33 4120002027033 O型圈20X1.8GB3452.1-82 O-ring Y 2
34 4120002027035 O型圈11.8X1.8GB3452.1-82 O-ring Y 1
35 4120002432424 螺塞DXS-18-04 Plug Y 1
36 4120002027002 手柄组件DXS-01 Control kit Y 1
37 4120000370014 橡胶罩DXS-09 Cover Y 1
38 4120000370005 手柄接头DXS-02 Nipple Y 1
39 4120002027036 螺母M12GB6170-86 Nut Y 1
40 4120002027037 小垫圈-20-140HVGB848-85 Washer Y 1
41 4120002027038 铰座DXS-07-01 Seat N 1
42 4120002027048 长销DXS-07-06 Pin Y 1
43 4120002027040 铰接DXS-07-02 Attaching link N 1
44 4120004305001 铰座DXS-07-07 Bracket Y 1
45 4110001321160 螺母GB6170-86 M6 DIN934 8 0637 Nut N 4
46 4120002027042 压销DXS-03-01 Pin N 4
47 4120002027043 挡圈8GB895.1-86 Retaining ring N 4
48 4120002027044 压销座DXS-03-03 Pin N 4
49 4120002027045 压板DXS-03-02 Cover Y 4
50 4120000370009 固定板DXS-04 Plate Y 1
51 4120004305002 安装板DXS-07-03b Fixation plate Y 1
52 4120002027047 短销DXS-07-04 Pin N 2
53 2810000357004 螺母M20-04（GB6172-86） Nut Y 1
54 4110001321157 弹性圆柱销GB879-86 6×30 DIN1481 Spring pin Y 1
55 4120002027049 压杆1DXS-10-01 Plate Y 2
56 4120002027050 压杆2DXS-12-01 Plate Y 2

1 4120001153 动臂油缸HSGL-90*50*640-965 Lifting cylinder Y 2
2 29130006521 左动臂缸小腔钢管 Pipe Y 1
3 29130006531 左动臂缸大腔钢管 Pipe Y 1
4 4030000242 O形圈GB3452.1-12.5*1.80G O-ring Y 4
5 29130006541 右动臂腔小腔钢管 Pipe Y 1
6 29130006551 右动臂缸大腔钢管 Pipe Y 1
7 29130008271 动臂联三通钢管 Pipe Y 1
8 4030000501 O形圈GB3452.1-15.0*1.80G O-ring Y 2
9 4041000582 直接头LGB120-02630 Nipple Y 2
10 4041000685 O形圈LGB168-12631 O-ring Y 2
11 4041000827 软管LGB128-406080 Hose assembly Y 2
12 4041001375 软管LGB128－406070 Hose assembly Y 2
13 29130006561 动臂联三通钢管 Pipe Y 1
14 29130009681 管夹 Clamp Y 2
15 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 4
16 29130006571 动臂联大腔二通钢管 Pipe Y 2
17 29130006581 动臂联小腔二通钢管 Pipe Y 2
18 4041001225 U形螺栓LGB159-11826 U-bolt Y 4
19 4041001226 底板LGB160-1826 Bracket Y 4
20 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 8
21 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 8
22 4011000455 螺栓GB16674-M8*25EpZn-8.8 Bolt Y 2
23 29130006591 动臂缸胶管 Hose assembly Y 4
