Description

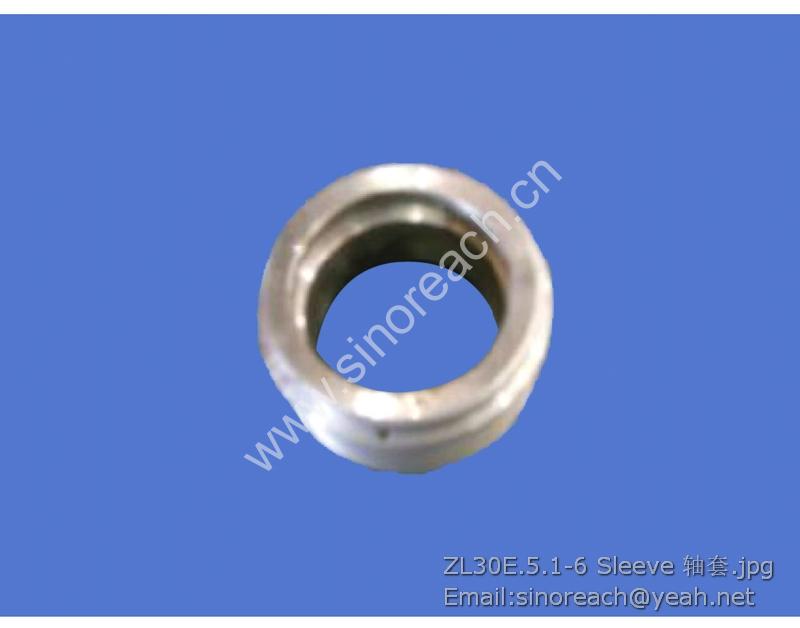

LONKING ZL30E.5.1-6 Sleeve

LG380F.03.01 变速箱总成 Transmission assembly 1 ZL30E.5G
GB/T97.1 垫圈 16 Washer 16 8
GB/T890 螺母M16 Nut M16 4
GB/T5783 螺栓M16×50 Bolt M16×50 4
LG380F.03.02 制动器 Brake 1 ZL1615.2A

ZL30E.5G-1 箱体 Transmission case 1
GB/T119-2000 圆柱销 Cylindrical pin 2
ZL30E.5-2A 箱盖 Transmission cover 1
ZL30E.5-3 密封垫 Seal gasket 1
ZL30E.5.1 一轴离合器总成 Shaft Ⅰ clutch assembly 1
ZL30E.5.3 二轴离合器总成 Shaft Ⅱ clutch assembly 1
ZL30E.5.4 三轴离合器总成 Shaft Ⅲ clutch assembly 1
ZL30E.5-4 倒挡齿轮 Reverse gear 1
GB893.1-86 挡圈90 Spacer 90 3
GB/T276-94 轴承 6308 Bearing 6308 1 40×90×28
ZL30E.5-7 轴套 Shaft sleeve 1
GB894.1-86 挡圈40 Spacer 40 1
ZL30E.5-5 轴套 Shaft sleeve 1
ZL30E.5-6 倒挡齿轮轴 Reverse gear shaft 1
GB3452.1-82 O型圈45×2.65 O-ring 45×2.65 1
ZL30E.5-26A 密封垫 Seal gasket 1
GB93.1-87 垫圈10 Washer 10 47
GB/T5782-2000 螺栓M10×30 Bolt M10×30 15
ZL30E.5.2 一轴端盖总成 Shaft Ⅰ end cover assembly 1
ZL30E.5-8 密封垫 Seal gasket 2
GB93.1-87 垫圈12 Washer 12 35
GB5782-2000 螺栓M12×35 Bolt M12×35 29
ZL30E.5.9A 二轴端盖总成 Shaft Ⅱ end cover assembly 1

ZL30E.5.5A 三轴端盖总成 Shaft Ⅲ end cover assembly 1
ZL30E.5-10 密封垫 Seal gasket 1
ZL1615.2A 制动器 Brake 1
ZL30E.5-16 前轴承盖 Front bearing cover 1
ZL30E.5-13 调整垫圈 Adjusting washer 1set
GB/T276-94 轴承 6312 Bearing 6312 2 60×130×31
ZL30E.5-12 轴套 Shaft sleeve 1
ZL30E.5-11 压板 Press plate 2
ZL30E.5-31 垫片 Gasket 1
JB980-80 尼龙锁紧螺母M33×1.5 Nylon lock nut M33×1.5 2
GB3452.1-82 O型圈42.5×5.3 O-ring 42.5×5.3 1
HG4-339-66 骨架油封65×90×12 Frame oil seal 65×90×12 2
ZL30E.5B.17 前输出法兰总成 Front output flange assembly 1
ZL30E.5-15 密封垫 Seal gasket 2
ZL30E.5-19 轴套 Shaft sleeve 1
ZL30E.5-14A 输出被动齿轮 Output driven gear 1
GB/T5782-2000 螺栓M10×35 Bolt M10×35 28
GB/T 825-1988 吊环螺钉M16×28 Eye screw M16×28 1
ZL30E.5.20 透气阀总成 Vent assembly 1
GB/T5782-2000 螺栓M12×100 Bolt M12×100 6
ZL30E.5.8 控制阀 Control valve 1
ZL30E.5.11A 前进挡油管 Forward gear oil pipe 1
ZL30E.5-33 接头体 Adapter 10
