Description

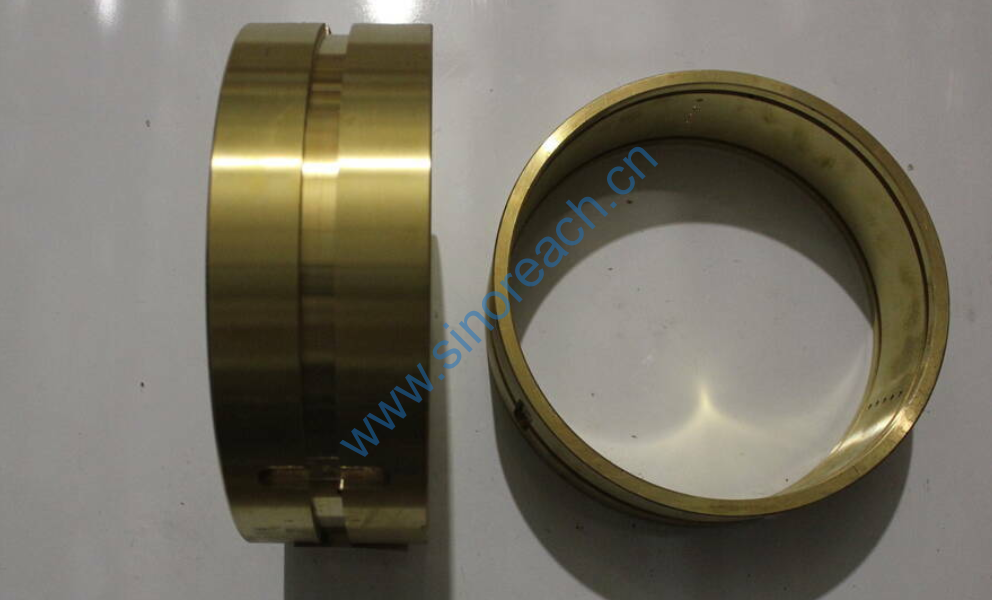

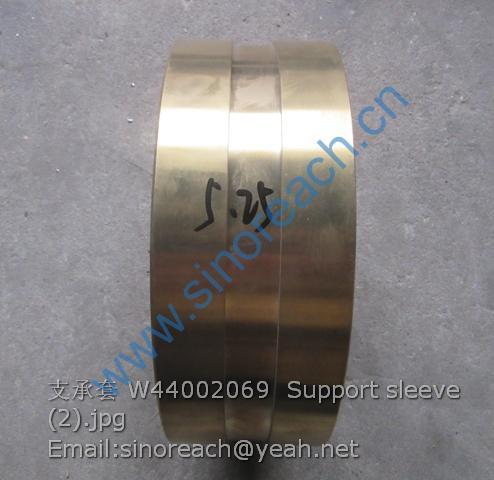

W44002069 Support sleeve

1 Plug M14X1.5 B110611408 75500197 3
2 Combined Washer 24 W044100350 53200005 3
3 Banlance Box Group
W44002058
90510001 1 Left Banlance_Box
W44002059
90510002 1 Right Banlance_Box
4 Bearing33113 W44002089 54100059 2
5 Sprocket Assembly
W44002060
85513031 1 Left Banlance_Box
W44002061
85531030 1 Right Banlance_Box
6 Oil Seal FB115X140X12 W44002088 53100029 2
7 O-Seal Ring 475X7 W44002087 53000055 2
8 Joint Plate
W44002062
85513019 2
9 Washer
W44002063
85513043 2
10 Bearing 32018
W44000001
54100002 2
11 Oil Seal FB100X125X12
W012200151
53100038 2
12 Sleeve
W44002064
85513042 2
13 Adjusting Spacer
W44002065
85513035 2 Group
14 Oil Seal Seat
W44002066
85513034 2
15 Step
W44002067
85685005 1
16 Bolt M14X1.5X55 B041111455 50011011 5

18 O-Seal Ring 135X3.1 53000013 2
19 BearingSeat
W44002068
85513015 2
20 Washer 12 B060411203 52020004 38
21 Bolt M12X40 B040911240 50009021 24
22 Oil Cup M10X1 B150101000 56300002 6
23 Sleeve
W44002069
85763021 1
24 O-Seal Ring 260X5.7 W44002086 53000016 2
25 Cover W44002078 85513013 2
26 Washer 8 B060460802 52020002 72
27 Bolt M8X20 B040910820 50009007 24
28 Two Sprockets
W44002070
85513022 1
29 Chain 32BHX1-54
W44002071
55420002 2
30 Bearing Seat
W44002072
85513027 1
31 Bearing 22319C W44002085 54900008 1
32 Adjusting Spacer
W44002073
85513033 1
33 Clamping Plate
W44002074
85513021 1
34 Cover
W44002075
85513025 1
35 Bolt M12X35 B040911235 50120004 8

36 Bolt M12X30 B040611230 50009058 6
37 Threaded Screw M16X40 W44002084 50120010 8
38 Washer 16 B060411603 52020006 60
39 Bolt M14X1.5X40 B041111440 50012019 43
40 Washer 14 B060411403 52020005 48
41 Bolt M16X32 W44002083 50009030 18
42 Air Plug Z1/8″ W043100490 56100001 3
43 Cover Group
W44002076
85513014 1
44 Threaded Screw M6X16
W44002082 50151002 3
45 Cover
W44002077 85513039 1
46 Sprockrt Assembly
W44002060 85513030 1
Left Banlance_Box
W44002061 85513031 1
Right Banlance_Box
47 Threaded Screw M16X50
W44002081 50120013 34
48 Bolt M8X25
B040910825 50008006 48

1
Bolt M8×16 B040810816 980208001/GB5782－86
8
2
Washer 8 B060110802 981600108/GB93－87
8
3
Cover W43003010 20140060
1
4
Threaded Screw M12×30－8.8 B010421230 980712193/GB70－85
6
5
Bolt M10×25－8.8 B040811025 980210063/GB5782－86
12
6
Washer10 B060131003 981600110/GB93－87
20
7
Case
W43003150
20140011
1
8
Washer42
W43003020
982900242/JB982－77
1
9
Oil Level Indicator
W43003140
390112000
1
10
Key A8×5×56
W43003130
982300108/JC1077－87
1
11
Shaft
W43003120
20140090
1
12
Connection Sleeve
W43003110
20140110
1
13
O-RING 75*3.1
W110010620
20140130/GB1235－77
1
14
Threaded Screw M10×70－8.8
B010411070
980710200/GB70－85
8
15
Bearing Seat
W43003100
20140120
1
16
Shaft Sleeve
W43003090
20140140
2
17
Bearing
W43003160
983505839/GB301－84
2
18
Disk
W43003080
20140160
2

19
Worm
W43003070
20140170
1
20
Drive Gear
W43003060
20140030
1
21
Bearing
W43003050
983505153
1
22
Oil Seal W43003040 991503001 1
23
Threaded Screw W43003030 980810005 1
24
O-RING W43003250 983226030/GB3452.1－82 1
25
Bearing Seat W43003170 20140151 1
26
Washer16 B060901602 982600516/JB1002－77 2
27
Plug M16*105 W43003240 982501376/JB1001-77 2
28
Worm Wheel W43003180 20140020 1
29
Cover W43003190 20140041 1
30
Adjusting Spacer W43003230 20140070 2 Group
31
Bearing W43003220 983504853/GB297－84 1
32
Bearing Seat W43003200 20140050 1
33
Seal Spacer W43003210 20140080 1
