Description

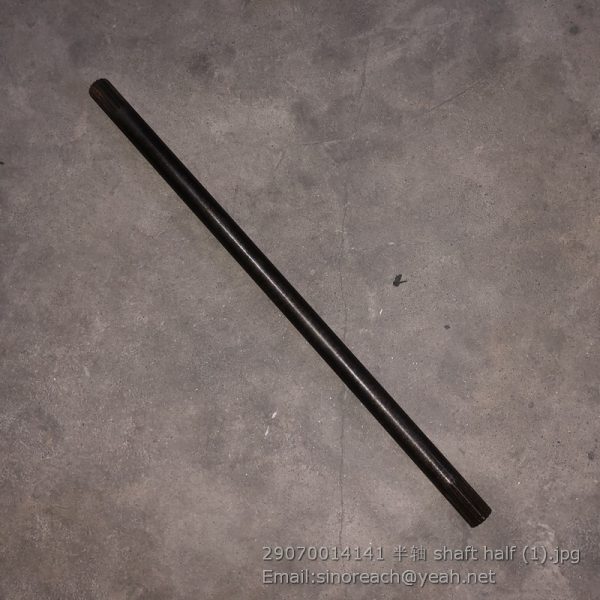

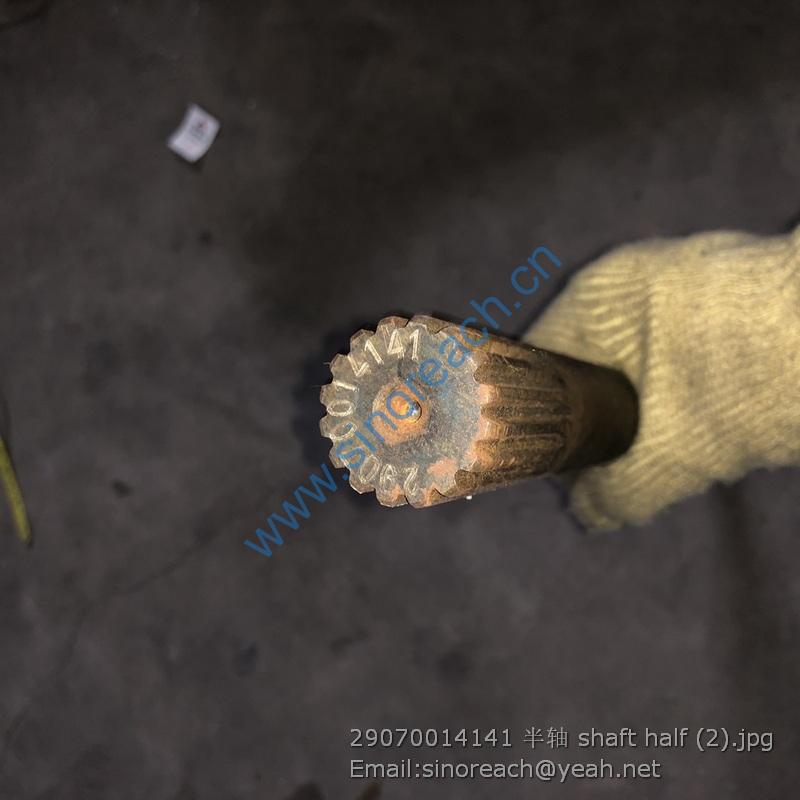

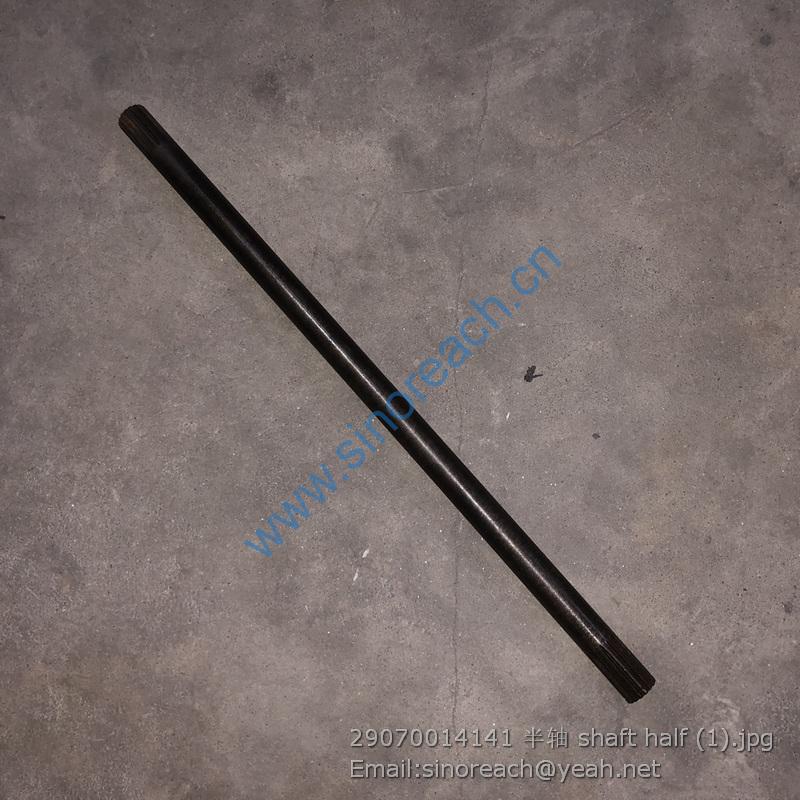

LG956V WHEEL LOADER shaft half 29070014141

4110000042116 箱体4644 301 391 GEARBOX HOUSING 4644 301 391 Y 1
2 7200001432 螺塞(M30*1.5)0336302027 PLUG (M30*1.5)0336302027 Y 1
3 7200001433 O形圈(27*2)0634304275 O-RING (27*2)0634304275 Y 1
4 4110000042111 铭牌0899 317 344 TYPE PLATE 0899 317 344 N 1
5 7200001435 铆钉0631311009 RIVET 0631311009 Y 4
6 7200001436 螺塞(AM14*1.5)0636305046 PLUG (AM14*1.5)0636305046 Y 1
7 4110000042007 O形圈0634 306 522 O-RING 0634 306 522 Y 1
8 7200001438 盖板4644301298 COVER PLATE 4644301298 Y 1
9 7200001439 盖板4644301192 COVER PLATE 644301192 Y 1
10 7200001686 六角螺钉(M8*16)0636015278 SCREW (M8*16)0636015278 Y 3
11 4110000042026 垫圈0630 001 012 WASHER 0630 001 012 Y 3
12 7200001442 密封帽4466351081 SEALED CAP 4466351081 Y 2
13 7200001443 O形圈0634306525 O-RING 0634306525 Y 1
14 7200001444 螺塞(CM38*1.5)0636305026 PLUG (CM38*1.5)0636305026 Y 1
15 7200001445 螺塞(AM26*1.5)0636305019 PLUG (AM26*1.5)0636305019 Y 1
16 7200001446 O形圈0634303233 O-RING 0634303233 Y 1
17 7200001448 透气件0750131027 PERMEABILITY PARTS 0750131027 Y 1
18 7200001449 隔板4644301279 CLAPBOARD 4644301279 Y 1

19 7200001450 起吊螺栓0636804003 BOLT 0636804003 Y 2
20 7200001451 密封帽4644301088 SEALED CAP 4644301088 Y 1

1 7200001515 轴4644308611 SHAFT 4644308611 Y 1
2 7200001516 O形圈0634313529 O-RING 0634313529 Y 1
3 7200001517 止推垫圈4644308610 THRUST WASHER 4644308610 Y 1
4 7200001518 中间齿轮Z=36(HVZ)4644308614 IDLEER GEAR SHAFT Z=36(HVZ)4644308614 Y 1
5 4110000042120 圆柱头螺钉0636 104 146 CAP SCREW 0636 104 146 Y 1
6 7200001520 滚柱轴承组件0750119101 ROLL.BEARING ASSEMBLY 0750119101 Y 1
7 7200001521 密封垫圈（25）0630362024 PACKING WASHER （25）0630362024 Y 1

1 7200001532 轴4644351076 SHAFT 4644351076 Y 1
2 7200001533 O形圈(49*3)0634313536 O-RING (49*3)0634313536 Y 1
3 7200001534 活塞环0734401106 PISTON RING 0734401106 N 3
4 7200001535 螺柱(M8*30)0636610026 DOUBLE-SCREW BOLT (M8*30)0636610026 Y 1
5 7200001674 螺柱0636610014 DOUBLE-SCREW BOLT 0636610014 Y 1
6 7200001675 六角螺母(M8)0637006018 NUT (M8)0637006018 Y 2
7 7200001621 补偿垫圈（任选）0730003501 S=0.4 WASHER 0730003501 S=0.4 Y 1
8 4110000042052 调整垫圈s=0.6 0730 003 502 SHIM S=0.6 0730 003 502 Y 1
9 4110000042053 调整垫圈s=0.8 0730 003 503 SHIM S=0.8 0730 003 503 Y 1
10 4110000042054 调整垫圈s=1.0 0730 003 504 SHIM S=1.0 0730 003 504 Y 1
11 4110000042055 调整垫圈s=1.2 0730 003 505 SHIM S=1.2 0730 003 505 Y 1
12 4110000042056 调整垫圈s=1.4 0730 108 157 SHIM S=1.4 0730 108 157 Y 1
13 4110000042057 调整垫圈s=1.6 0730 108 158 SHIM S=1.6 0730 108 158 Y 1
14 4110000042058 调整垫圈s=1.8 0730 108 159 SHIM S=1.8 0730 108 159 Y 1
15 4110000042059 调整垫圈s=2.0 0730 108 160 SHIM S=2.0 0730 108 160 Y 1
16 4110000042060 调整垫圈s=2.2 0730 108 161 SHIM S=2.2 0730 108 161 Y 1
17 4110000042061 调整垫圈s=2.4 0730 108 162 SHIM S=2.4 0730 108 162 Y 1
18 4110000042062 调整垫圈s=2.6 0730 108 163 SHIM S=2.6 0730 108 163 Y 1

19 4110000042063 调整垫圈s=2.8 0730 108 164 SHIM S=2.8 0730 108 164 Y 1
20 7200001539 止推垫圈0730150759 THRUST WASHER 0730150759 Y 1
21 7200001540 止推垫圈4644303529 THRUST WASHER 4644303529 Y 1
22 7200001583 齿轮(Z=63)4644308625 GEAR (Z=63)4644308625 Y 1
23 7200001542 止推垫圈4644308265 THRUST WASHER 4644308265 Y 2
24 7200001543 止推垫圈0730150773 THRUST WASHER 0730150773 Y 1
25 7200001544 滚柱轴承组件0750119100 ROLL.BEARING ASSEMBLY 0750119100 Y 1
26 7200001545 垫圈4644308266 WASHER 4644308266 Y 1
27 7200001546 端垫4644308071 WASHER 4644308071 Y 2
28 7200001547 活塞4644351070 PISTON 4644351070 N 2
29 7200001590 密封环0750112139 PACKING RING 0750112139 Y 2
30 7200001549 止推垫圈4644351094 THRUST WASHER 4644351094 Y 1
31 7200001550 止推垫圈4642308555 THRUST WASHER 4642308555 Y 1
32 7200001551 密封环0750112140 PACKING RING 0750112140 Y 2
33 7200001552 压力弹簧0732041183 PRESSURE SPRING 0732041183 Y 2
34 7200001553 导向环4642308083 GUIDE RING 4642308083 N 4
35 7200001554 V形杯AV550630531346 V-CUP AV550630531346 N 2
36 7200001555 导向环4642308084 GUIDE RING 4642308084 N 2
