Description

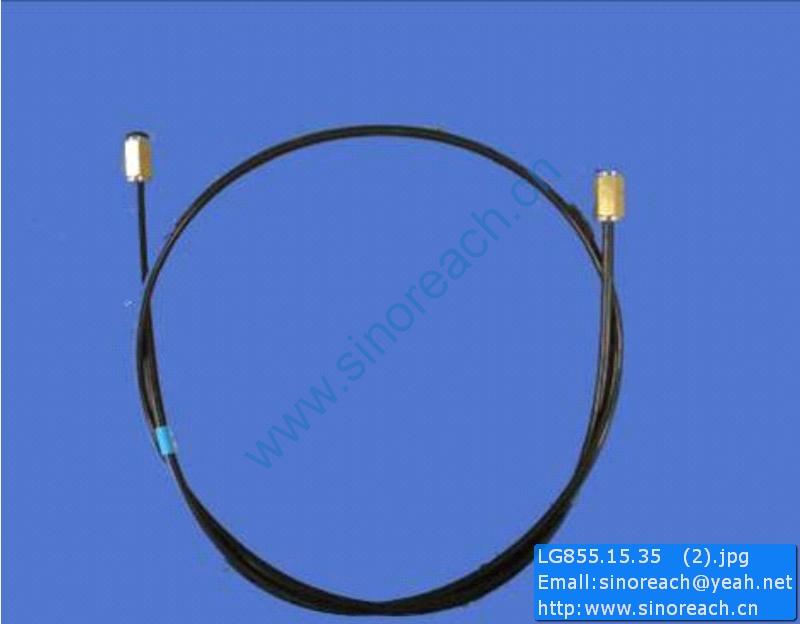

LG855.15.35 Transmission and torque converter oil pressure gauge hose CDM855 CDM855E parts

1 Z50B.13-6 螺栓 Bolt 2
2 Z50B.13-11A 右边齿 Right tooth 1
3 B-G061750-00001 螺母M24ZnD Nut 2
4 B-G020490-00015 垫圈24 Washer 2
5 Z50B.13-16 垫片 Pad 4
6 Z50B.13-14 垫片 Pad 2
7 Z50B.13-13 垫片 Pad 2
8 Z50B.13-9 垫片 Pad 5
9 Z50B.13-8 垫片 Pad 5
10 Z50B.13-5 螺母 Nut 12
11 Z50B.13-10A 中间齿 Bucket tooth 5
12 Z50E.31.G0.1 通用铲斗 Universal bucket 1
13 Z50B.13-4 螺栓 Bolt 12
14 Z50B.13-12A 左边齿 Left tooth 1
15 B-J07940A-00001 油杯M10×1 Grease cup 8
16 Z50B.13-1 外防尘圈115 Outer dust ring 8
17 Z50B.13.1 内防尘圈100 Inner dust ring 8
18 Z50E.13P.2.1 焊接连杆 Linkage 1(*)
Z50E.13R.2.1 焊接连杆 Linkage 1(#$)
19 Z50B.13.8-2A 轴套 Bushing 1
20 Z50B.13.8-1A 轴套 Bushing 1
21 B-G057830-00066 螺栓M16×25ZnD Bolt 8
22 B-Q01201E-00003 垫圈 Washer 8
23 Z50E.13N.3 销轴组件 Shaft assembly 2
24 Z50E.13P.1-1 动臂前轴套 Frontal bushing 2
25 Z50E.13N.5 销轴组件 Shaft assembly 1
26 Z50B.13.4 销轴组件 Shaft assembly 1
27 Z50B.13.13 内防尘圈110 Inner dust ring 12

Z50E.13P(R&S)+Z50E.31.G0 工作装置及铲斗
Working Equipment& Bucket

序号
NO. 零件代号
Part No. 名 称
Part Name 数量
Q’ty
28 Z50B.12.7-3A 动臂中轴套 Mid bushing 2
29 Z50B.13.5A 销轴组件 Shaft assembly 2
30 Z50B.13.7-1A 动臂后轴套 Tail bushing 2
31 Z50E.13P.1.1 焊接动臂 Lift arm 1(*)
Z50E.13R.1.1 焊接动臂 Lift arm 1(#)
Z50E.13S.1.1 焊接动臂 Lift arm 1($)
32 Z50E.13N.6 销轴组件 Shaft assembly 1
33 Z50B.13.12 内防尘圈115 Inner dust ring 2
34 Z50E.13P.3-1 铸钢摇臂 Rocker arm 1
35 Z50B.13.9-1A 轴套 Bushing 2
36 Z50B.13.11 内防尘圈135 Inner dust ring 2
37 Z50B.13-15 垫片 Pad 3
38 Z50B.13-2 垫片 Pad 3
39 Z50B.13-3 垫片 Pad 3
40 Z50E.13N.4 销轴组件 Shaft assembly 2
