Description

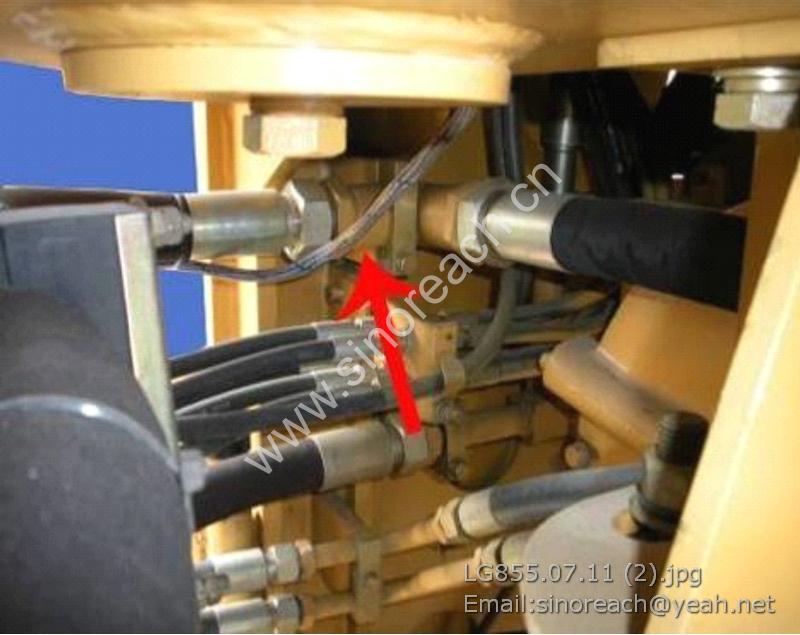

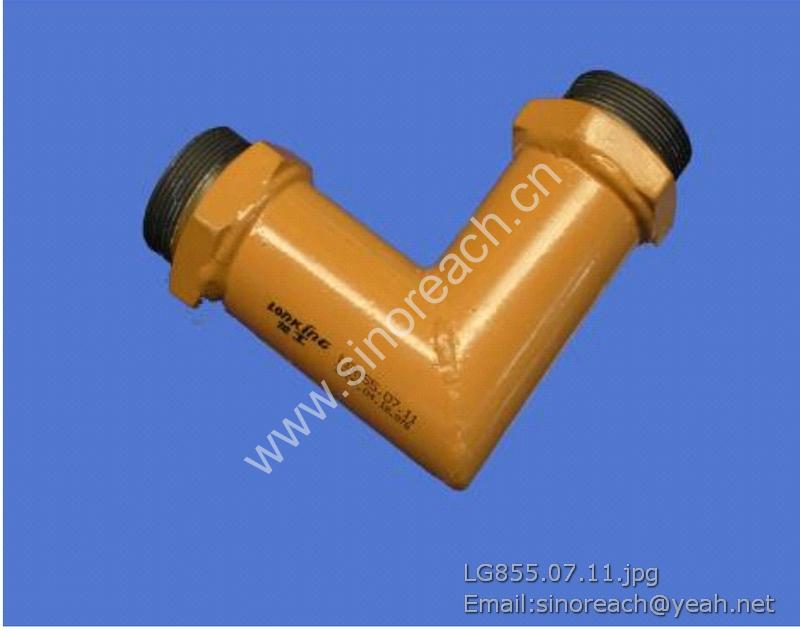

LG855.07.11 Rear frame oil return transit connector for LONKING
LG853.14-001 动臂安全标识 Lift arm security label 2
LG853.14-002 动臂用中国龙工 China Longgong label on lift arm 2
LG853.14-003 铰接安全标识 Hinge security label 2
LG855.14-004 黄油嘴分布图 lubricating nipple scatter gram 1
LG853.14-005 机罩中国龙工标识 China Longgong label on engine hood 2
LG853.14-006 电瓶接线标识 Battery wire label 2
LG853.14-007 风扇警告标识 Fan alarm label 2
LG50EX.14010A CDM855E后罩标志 CDM855E rear hood label 2 LG50EX.14-001
GB/T12618 开口型扁圆头轴芯铆钉 Ф4×13 Uncork shaft bolt Ф4×13 12
LG853.14-009 产地标志 Origin label 2
LG853.14-010 储气罐警告标识 Air tank alarm label 1
LG853.14-011 起吊标识 Lifting label 4
LG853.14-012 液压油标识 Hydraulic oil label 1
LG853.14-020 中国名牌标志 China top brand label 1
LG853.14-019 配重后中国龙工标识 China Longgong label behind counterweight 1
LG853.14-017 燃油标识 Fuel label 1
LG853.14-016 工作装置操纵标识 Implemental panel operating label 1
LG853.14-018 挡位标识 Gear label 1
LG853.14-015 警告标识 Alarm label 1
LG853.14-014 起动前准备工作标识 Pre-start preparation label 1
LG50EX.14011A 铭牌 Nameplate 1 LG50EX.14-002
LG853.15.09 电喇叭总成 DL50D-24 Electric horn assembly DL50D-24 1
GB/T5783 螺栓 M8×20 Bolt M8×20 17
GB/T93 垫圈 8 Washer 8 24
LG855.15.01 前车架线束 Front frame harness 1
HDF-02D 前组合灯 Combined headlamp 1 LG853.15.10
ZD2332B 雨刮器总成 Wiper assembly 1 LG853.15.11
68–3 防眩目灯 Anti-flaring lamp 4 LG853.15.12
LG855.15.02 驾驶室线束 Cab harness 1
FD140X80 吸顶灯 Top lamp 1 LG853.15.13
GB/T845 自攻螺钉ST4.8×19 Screw ST4.8×19 3
JK324C 电锁开关 Electric lock switch 1 LG853.15.14
BJ132 暖风机总成 Heater assembly 1 LG853.15.15
LG50EX.15.03 后车架线束 Rear frame harness 1
LG853.15.16 水温传感器 Z3/8″ Water temperature sensor Z3/8″ 1
LG50EX.15.04 机罩灯线束 Hood lamp harness 1
LG853.15.17 三色示宽灯 XF1-7（红、白、黄） Tri-color width indicator lamp 6
GB/T67 螺钉 M4×16 Screw M4×16 12
GB/T6170 螺母 M4 Nut M4 12
GB/T93 垫圈 4 Washer 4 12
GB/T97.1 垫圈 4 Washer 4 12
YT-202/0.8MPa 动力机油压力表 Oil pressure gauge for diesel engine 1 LG853.15.18
DW-2/40-120℃ 动力机水温表 Water temperature gauge for diesel engine 1 LG853.15.19
DL-3/±30A 电流表 Ammeter 1 LG853.15.20
GS-3 计时表 Hour meter 1 LG853.15.21
DW-2/40-140℃ 变矩器油温表 Oil temperature gauge for torque converter 1 LG853.15.22
DH16-4 转向指示灯 Turning pilot lamp 2 LG853.15.23
YT-202C4B/3.2MPa 变速箱油压表 Oil pressure gauge for transmission 1 LG853.15.24
