Description

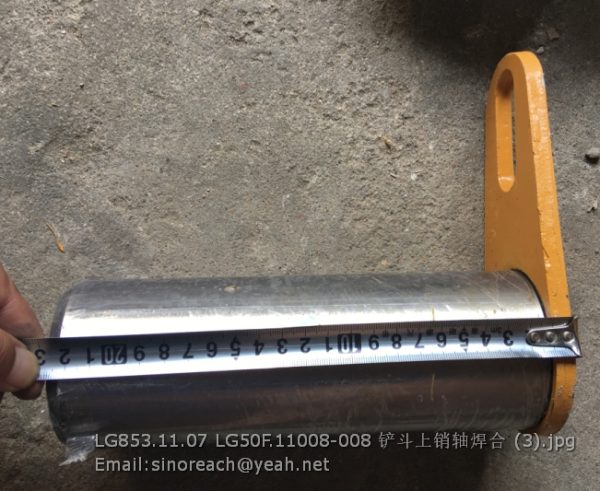

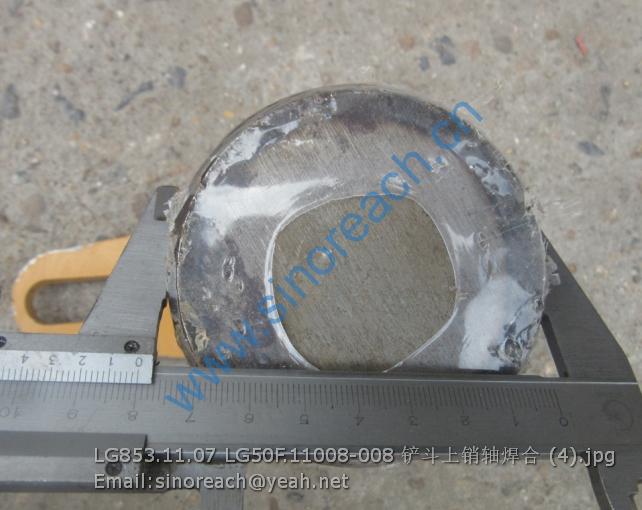

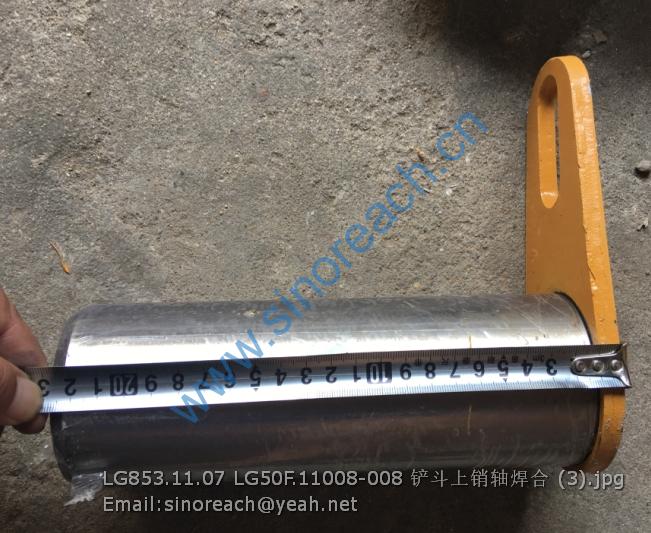

LG853.11.07 LG50F.11008-008 Bucket upper pin CDM855 CDM856 parts

190C.19A.25 1 前轮倾斜油缸 Cylinder Ass’ Y, Ln
1 .190C.19A.25.1 1 .缸体 .Cylinder
2 .190C.19A.25-6 1 .轴套 .Bushing
3 .190C.19A.25.3 1 .内防尘圈 .Seal, Dust
4 .B-J07940B-00003 1 .油杯60°M10×1 .Fitting, Grease
5 .190C.19A.25-3 1 .导向套 .Head, Cylinder
6 .190C.19A.25-9 1 .支承环 .Bushing
7 .190C.19A.25-2 1 .活塞杆密封圈 .Packing, Rod
8 .190C.19A.25-4 1 .防尘圈 .Seal, Dust
9 .190C.19A.25-10 1 .防尘圈挡圈 .Ring, Snap
10 .B-Q020710-00099 1 .O形圈80×3.1 .O-Ring
11 .190C.19A.25-8 1 .O形圈挡圈 .Ring, Back-Up
12 .B-Q020710-00101 1 .O形圈85×3.1 .O-Ring
13 .190C.19A.25.2 1 .活塞杆 .Rod, Piston
14 .190C.19A.25-5 1 .轴套 .Bushing
15 .190C.19A.23.3 1 .内防尘圈 .Seal, Dust
16 .B-J07940B-00003 1 .油杯60°M10×1 .Fitting, Grease
17 .190C.19A.25-1 1 .活塞 .Piston
18 .190C.19A.25-7 1 .支承环 .Ring, Wear
19 .190C.19A.22.1 1 .活塞圈 .Ring, Piston
20 .190C.19A.22-1 1 .锁紧螺母 .Nut
21 .B-G000910-00050 1 .销5×50 .Cotter pin

190C.19B.30 1 右铰接油缸 Cylinder Ass’Y, At.L.H
190C.19B.31 1 左铰接油缸 Cylinder Ass’Y, At.R.H
1 .190C.19B.31.1 1 .左缸体 .Cylinder L.H
.190C.19B.30.1 1 .右缸体 .Cylinder R.H
2 .190C.19A.23-4 1 .轴套 .Bushing
3 .190C.19A.23.3 1 .内防尘圈 .Seal, Dust
4 .190C.19A.23-3 1 .导向套 .Head, Cylinder
5 .190C.19A.22-10 1 .支承环 .Bushing
6 .190C.19A.22.4 1 .活塞杆密封圈 .Packing, Rod
7 .190C.19A.22-3 1 .防尘圈 .Seal, Dust
8 .190C.19A.22-11 1 .防尘圈挡圈 .Ring, Snap
9 .B-Q020710-00103 1 .O形圈90×3.1 .O-Ring
10 .190C.19A.23-6 1 .O形圈挡圈 .Ring, Back-Up
11 .B-Q020710-00106 1 .O形圈95×3.1 .O-Ring
12 .190C.19A.23.1 1 .活塞杆 .Rod, Piston
13 .190C.19A.23-4 1 .轴套 .Bushing
14 .190C.19A.23.3 1 .内防尘圈 .Seal, Dust
15 .190C.19A.23-2 1 .活塞 .Piston
16 .190C.19A.23-5 1 .支承环 .Ring, Wear
17 .190C.19A.23.4 1 .活塞圈 .Ring, Piston
18 .190C.19A.23-1 1 .螺母 .Nut, Nylon
19 .B-G000910-00053 1 .销5x60ZnD .Cotter pin
