Description

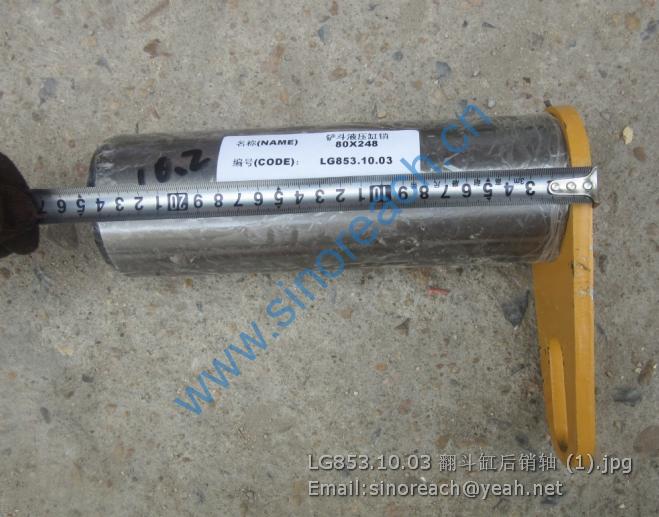

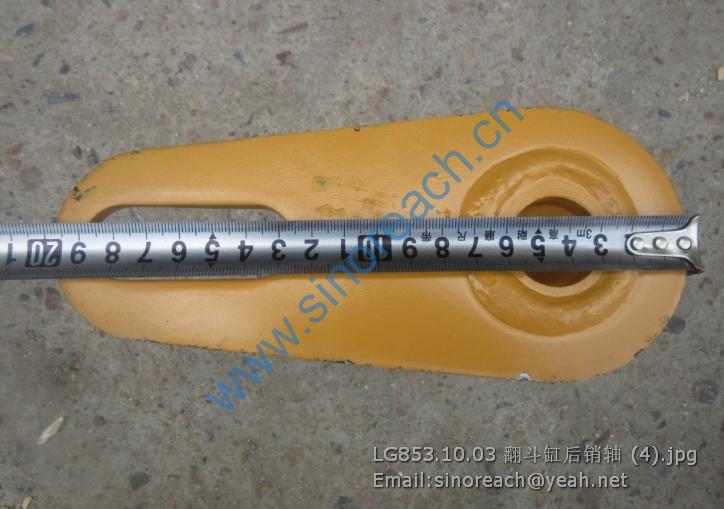

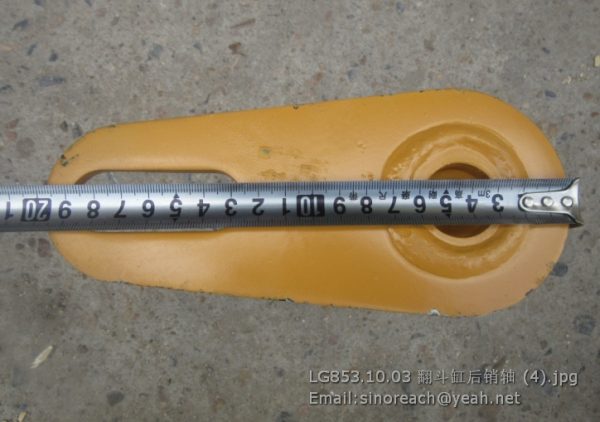

LG853.10.03 Rear pin of tipping cylinder CDM855 CDM856 parts
1 190C.8.1 1 盖 Cover
2 B-Q020350-00003 1 螺塞BM24×1.5 Plug
3 190C.8.3 1 磁性螺塞 Magnetic Piug
4 B-Q020510-00005 1 O形圈20.7×3.4 O-Ring
5 190H.8.1 1 油管 Tube
6 B-Q020710-00073 1 O形圈50×3.5 O-Ring
7 B-G057830-00037 1 螺栓M12×35 ZnD Bolt
8 B-Q020490-00003 1 垫圈12 Washer
9 190H.8.2 1 管 Tube
10 B-Q020710-00073 1 O形圈50×3.5 O-Ring
11 B-G057830-00037 1 螺栓M12×35 ZnD Bolt
12 B-Q020490-00003 1 垫圈12 Washer
13 Z30.4.16 1 通气塞 Breather
14 B-J010020-00010 1 垫圈30 Washer
15 190C.8-2 1 密封垫 Gasket
16 B-G001190-00022 1 销B12×28 Pin
17 B-G057830-00037 1 螺栓M12×35 ZnD Bolt
18 B-Q020490-00003 垫圈12 Washer
1 190C.8-27 1 保持架 Cage
2 B-G002970-00027 1 轴承32315 Bearing
3 B-G002970-00007 1 轴承30312 Bearing
4 190C.8-34 1 O形圈 O-Ring
5 190C.8-24 1 调整垫 Shim
190C.8-25 1 调整垫 Shim
190C.8-26 1 调整垫 Shim
6 B-G057830-00042 1 螺栓M12x45-10.9 Bolt
7 B-Q020490-00003 1 垫圈12 Washer
8 190C.8-8 1 盖 Cover
9 W-15-00137 1 密封圈AE3842A1 Bearing
10 B-Q020520-00004 1 O形圈144.4×3.1 O-Ring
11 B-G057830-00041 1 螺栓M12x40ZnD Bolt
12 B-Q020490-00003 1 垫圈12 Washer
13 190C.8-33 1 联轴器 Coupling
14 190C.8-32 1 座 Holder
15 B-Q020710-00083 1 O形圈60×5.7 O-Ring
16 190C.8-28 1 调整垫 Shim
190C.8-29 1 调整垫 Shim
190C.8-30 1 调整垫 Shim
190C.8-31 1 调整垫 Shim
17 B-G057820-00090 1 螺栓M16x80-10.9 Bolt
18 190C.8-3 1 主动螺旋伞齿轮 Bevel Pinion
19 190C.8-4 1 从动螺旋伞齿轮 Crown Wheel
20 190C.8A-2 1 差速器壳体 Case
21 B-G001190-00023 1 销B14x35 Pin
22 B-G057830-00055 1 螺栓M14x35-10.9 Bolt
23 B-Q020490-00005 1 垫圈14 Washer
24 190C.8-35 1 保持架 Retainer
25 190C.8-16 1 壳体 Retainer
