Description

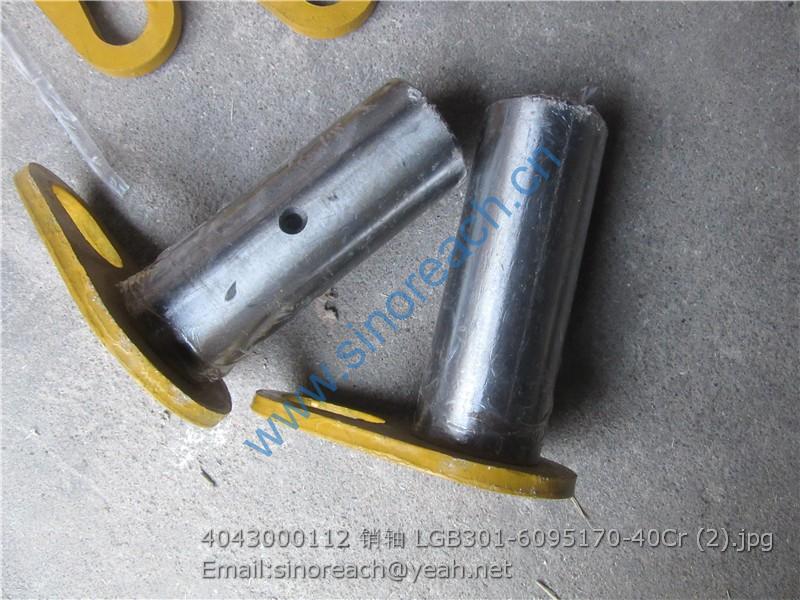

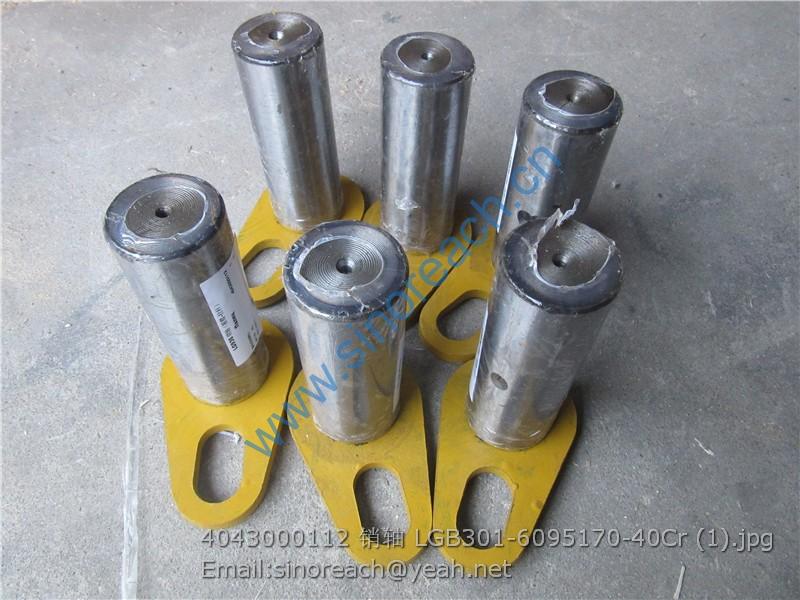

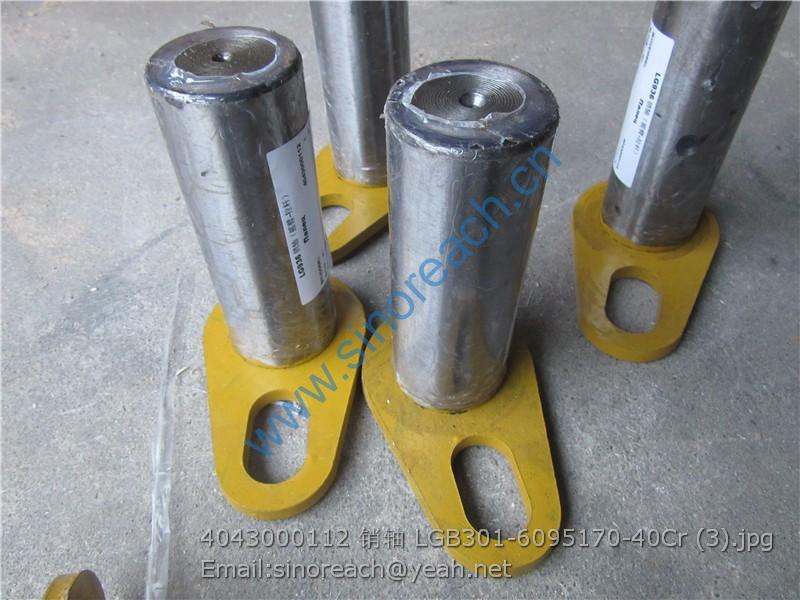

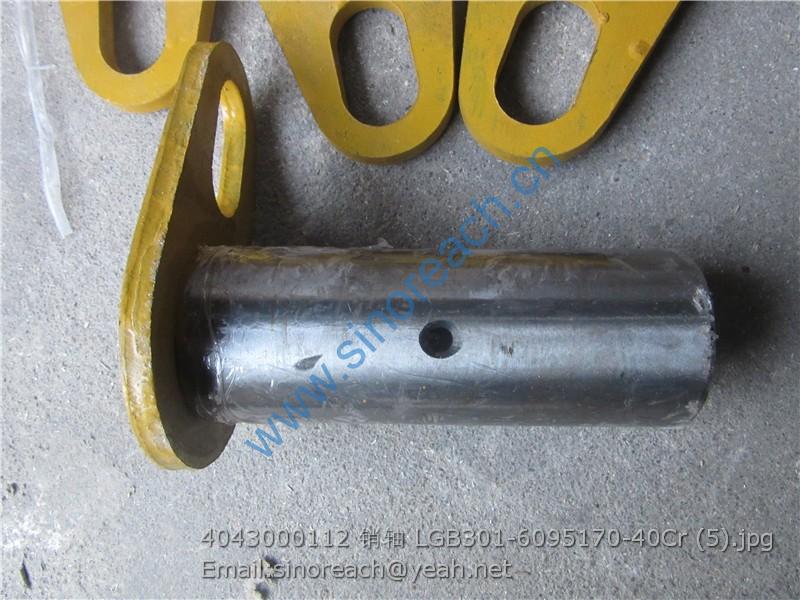

4043000112 LGB301-60*95*170-40Cr SHAFT PIN USED IN SDLG LG933 LG936 L956F WHEEL LOADER

1 4043000218 轴套LGB302-60*58A2 Bushing Y 4
2 4043000121 轴套LGB302-60*50A2 Bushing Y 2
3 4043000124 轴套LGB302-85*125A2 Bushing Y 1
4 4043000123 轴套LGB302-65*80A2/LGB302-65*80B2 Bushing Y 2
5 4043000112 销轴LGB301-60*95*170-40Cr Weld pin Y 5
6 4043000660 销轴LGB301-85*132*245/2-40Cr Pin Y 1
7 4043000725 销轴LGB301-60*85*150/2G-40Cr Weld pin Y 2
8 4043000127 防尘圈LGB307-60 Sealing ring Y 12
9 4043000056 防尘圈LGB307-85 Sealing ring Y 2
10 4043000035 垫片LGB303-85*130*1 Shim Y 4
11 4043000128 防尘圈LGB307-65 Sealing ring Y 4
12 4043000126 垫片LGB303-60*100*2 Shim Y 6
13 4043000125 垫片LGB303-60*100*1 Shim Y 10
14 4043000129 O形圈LGB308-98*8 O-ring Y 6
15 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 8
16 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 7
17 4040000050 垫圈LGB001-12flZnyc-480 Washer Y 7
18 4011001261 螺栓GB5783-M16*30flZnyc-8.8-480 Screw Y 1
19 4040000051 垫圈LGB001-16flZnyc-480 Washer Y 1

1 4012000003 螺柱GB898-M12*35EpZn-8.8 Stud Y 4
2 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 4
3 4013000011 螺母GB6170-M12EpZn-8 Nut Y 4
4 4120002117 齿轮泵CBGj2063A Gear pump Y 1
5 29110000043 泵用密封垫 Gasket Y 1
6 29190004121 转向泵出油钢管 Pipe Y 1
7 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 12
8 4041000026 分体法兰LGB117-310491 Flange half Y 2
9 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 2
10 29190004131 转向泵至优先阀胶管 Hose assembly Y 1
11 29190004141 优先阀进油钢管 Pipe Y 1
12 4030000241 O形圈GB3452.1-20.0*1.80G O-ring Y 1
13 4041000774 螺塞LGB135-01422 Plug Y 1
14 4041000767 O形圈LGB168-11124 O-ring Y 1
15 4041000188 直接头LGB120-03028 Nipple Y 1
16 4041000779 O形圈LGB168-12331 O-ring Y 1
17 4030000028 O形圈GB3452.1-36.5*3.55G O-ring Y 1
18 4041000056 分体法兰LGB117-312550 Flange half Y 1
19 29190004051 转向泵吸油钢管 Pipe Y 1
20 4090000043 吸油胶管 HG4-763-45*450 Hose assembly Y 1
21 4017000007 喉箍JB8870-d60 Clamp Y 4

1 4120000171044 挡圈41060100200 Retaining ring Y 1
2 4120000171046 挡圈41060100100 Retaining ring Y 1
3 4120000171045 旋转轴唇形密封圈43020200100 Sealing ring Y 2
4 4120002117001 前盖21020200110 Cover Y 1
5 4120000171048 环形密封圈 44020100300 Sealing ring Y 2
6 4120000171049 滚针轴承42010100100 Needle bearing Y 4
7 4120000171050 定位套21020900110 Spacer sleeve Y 4
8 4120000171051 耳形挡片21020800110 Retaining ring Y 2
9 4120000171052 耳形密封垫21020700110 Sealing washer Y 2
10 4120000171053 侧板21020600110 Side board Y 2
11 4120002117002 主动齿轮轴21020110110 Drive shaft Y 1
12 4120005048005 从动齿轮轴21020410010 Shaft Y 1
13 4120002117003 泵体21020310010 Pump body Y 1
14 4120001060003 后盖21020500110 Cover Y 1
15 4120002117005 螺钉44010101280 Screw Y 4
16 4120001715017 螺钉41010101780 Screw Y 4
17 4120000171043 弹簧垫圈41050200600 Spring washer Y 4
18 4120001715018 弹簧垫圈41050200500 Spring washer Y 4
19 4120002117006 密封件包 Sealing ring kit Y 1

1 4041000516 软管LGB164-010150 Hose assembly Y 1
2 29200009671 转向器出油钢管A Pipe Y 1
3 4030000289 O形圈GB3452.1-16.0*1.80G O-ring Y 2
4 29200009691 转向器出油钢管B Pipe Y 1
5 4041000564 直接头LGB120-02620 Nipple Y 4
6 4041000783 O形圈LGB168-11724 O-ring Y 4
7 4120003948 转向器BZZ6-500A Control valve Y 1
8 4120003680 方向盘FXP-953 Steering wheel Y 1
9 4120004343 可调转向柱-02 Steering column Y 1
10 4015000207 垫圈GB97.1-6EpZn-300HV Washer Y 4
11 4011000194 螺钉GB818-M6*12EpZn-4.8 Screw Y 4
12 4013000028 螺母GB6170-M6EpZn-8 Nut Y 4
13 29200009431 管夹 Clamp Y 4
14 29200009421 管夹 Clamp Y 1
15 4014000048 螺钉GB818-M5*12EpZn-4.8 Screw Y 2
16 29200009081 橡胶套 Rubber sleeve Y 1
17 29200009091 管夹 Clamp Y 1
18 4011000474 螺栓GB16674-M10*25EpZn-8.8 Bolt Y 2
19 29200009361 橡胶块 Rubber mat Y 1
20 4011000309 螺栓GB16674-M10*50EpZn-8.8 Bolt Y 4
21 29200009321 钢管 Pipe Y 4
22 29200009371 固定支架 Bracket Y 1
23 4011000282 螺栓GB16674-M10*75EpZn-8.8 Screw Y 4
24 29200009311 钢管 Pipe Y 4
25 29200009561 盖板 Cover plate Y 1
26 4011000164 螺栓GB16674-M10*35EpZn-8.8 Bolt Y 1
27 4041001049 软管LGB128-003085 Hose assembly Y 1
28 4041001047 组合接头LGB143-01406 Nipple Y 1
29 4041000131 直接头LGB120-01412 Nipple Y 3
30 4041000784 O形圈LGB168-10924 O-ring Y 3

31 4041000970 软管LGB127-410155 Hose assembly Y 1
32 4041000187 直接头LGB120-02622 Nipple Y 1
33 4041000771 O形圈LGB168-11924 O-ring Y 1
34 29200008461 固定板 Anchor plate Y 1
35 4011000197 螺栓GB5783-M12*25EpZn-8.8 Bolt Y 2
36 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 2
37 4011000536 螺栓GB5782-M8*95EpZn-8.8 Screw Y 2
38 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 2
39 29200009841 橡胶板 Rubber mat Y 1
40 29200010071 板 Plate Y 1
41 4120000709 优先阀VLE-150 Priority valve Y 1
42 4041000188 直接头LGB120-03028 Nipple Y 1
43 4041000779 O形圈LGB168-12331 O-ring Y 1
44 4041000514 软管LGB165-003121 Hose assembly Y 1
45 4041000774 螺塞LGB135-01422 Plug Y 1
46 4041000767 O形圈LGB168-11124 O-ring Y 1
47 4030000530 O形圈GB3452.1-6.00*1.80G O-ring Y 1
48 4130000896 锁紧手柄JB/T270.12-94 Switch Y 1
