Description

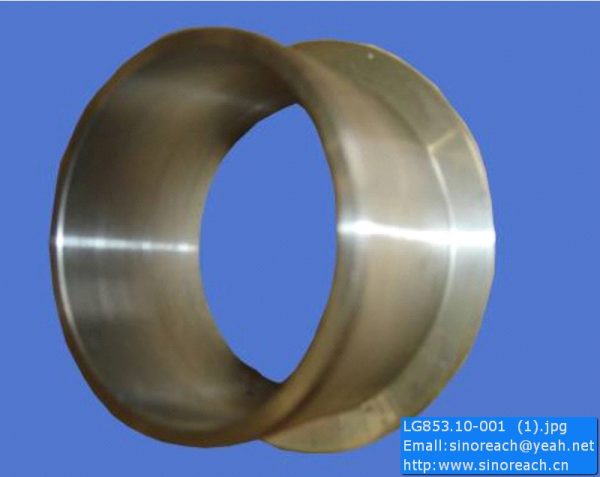

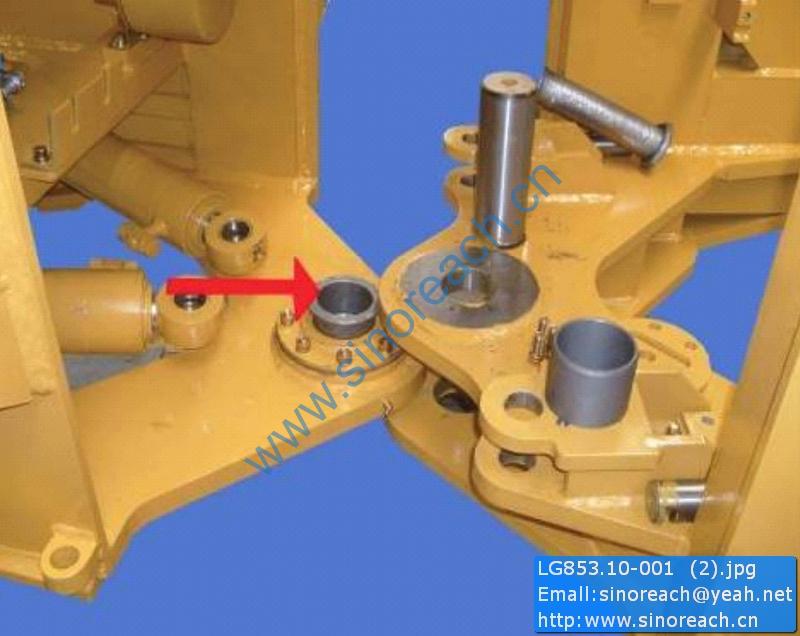

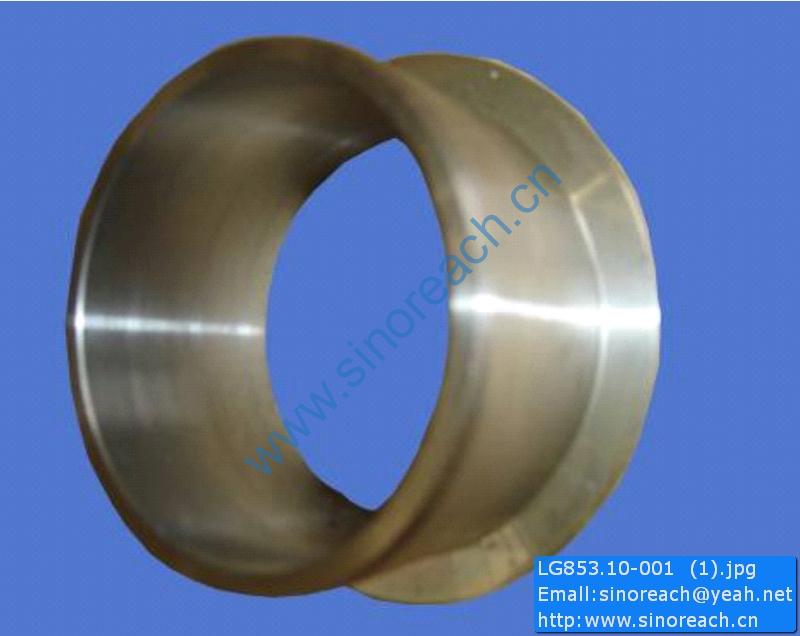

LG853.10-001 Upper bush CDM843 parts

1 W-03-00128 1 链条SUPPER 100-2×78 Chain Ass,Y 4
2 190C.5.3 1 大链轮 Sprocket 4
3 B-G002970-00023 1 轴承32218 Bearing 8
4 190C.5-12 1 O形圈470×6 O-Ring 4
5 190C.5-13 1 壳体 Cage 4
6 B-G057830-00073 1 螺栓M16×40 ZnD Bolt 36
7 B-Q020490-00007 1 垫圈16 Washer 40
8 190C.5-2 1 前支承轴 Front Shaft 2
9 B-G09877A-00018 1 油封FB160×190×16B Oil Seal 4
10 190C.5-15 1 衬套 Sleeve 4
11 190C.5-14 1 O形圈 O-Ring 4
12 190C.5-16 1 后支承轴 Rear Shaft 2
13 B-G057830-00027 1 螺栓M12×20-10.9 ZnD Bolt 8
14 190C.5-17 1 制动鼓 Drum 4
15 B-G057830-00108 1 螺栓M22×65 -10.9 ZnD Bolt 32
16 B-G008970-00002 1 双头螺栓M22×65 -10.9 Stud 8
17 B-Q020490-00013 1 垫圈22 Washer 40
18 B-G061700-00020 1 螺母M22 ZnD Nut 8
19 190C.5-8 1 调整垫 Shim 16
190C.5-9 1 调整垫 Shim 16
190C.5-10 1 调整垫 Shim 8
20 190C.5-11 1 座 Holder 4
21 190C.5-7 1 锁片 Lock 4
22 B-G057830-00041 1 螺栓M12×40 ZnD Bolt 12
23 190C.5-1 1 套 Spacer 2
24 B-G057830-00076 1 螺栓M16×45 ZnD Blot 4

190C.10F.12 1 转向油缸 Cylinder Ass’ Y, St.
1 .190C.10F.12.1 1 .缸体 .Cylinder
2 .B-G091630-00002 1 .关节轴承GE35ES .Bushing
3 .B-G00893A-00008 1 .挡圈55 ZnD .Ring, Snap
4 .B-J07940B-00004 1 .油杯 90°M10×1 .Fitting.Grease
5 .190C.10E.5-6 1 .导向套 .Head, Cylinder
6 .190C.10E.5-8 1 .支承环 .Bushing
7 .190C.10E.5-4 1 .活塞杆密封圈 .Packing Rod
8 .190C.10E.5-7 1 .防尘圈 .Seal, Dust
9 .190C.10E.5-9 1 .防尘圈挡圈 .Ring, Snap
10 .B-Q020710-00075 1 .O形圈51×3.5 .O-Ring
11 .190C.10E.5-5 1 .O形圈挡圈 .Ring, Back-Up
12 .B-Q020710-00077 1 .O形圈54×3.5 .O-Ring
13 .190C.10E.5.2 1 .活塞杆 .Rod, Piston
14 .B-J07940B-00003 1 .油杯60°M10×1 .Fitting, Grease
15 .190C.10E.5-3 1 .活塞 .Piston
16 .190C.10E.5-2 1 .支承环 .Ring, Wear
17 .190C.10E.5.1 1 .活塞圈 .Ring, Piston
18 .190C.10E.5-1 1 .锁紧螺母 .Nut
19 .B-Q020360-00002 1 .锥形螺塞AR1/8 .Plug
20 .B-G000910-00044 1 .销4x40ZnD .Cotter pin
