Description

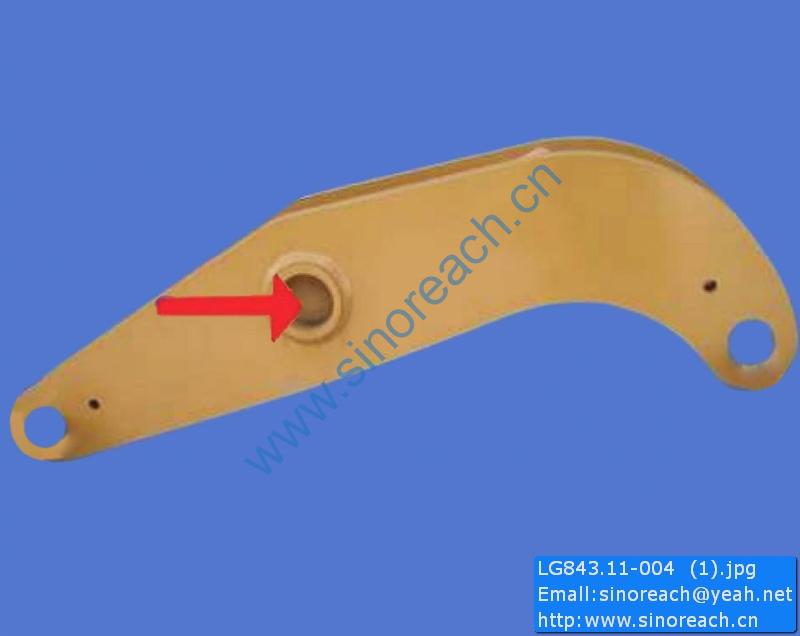

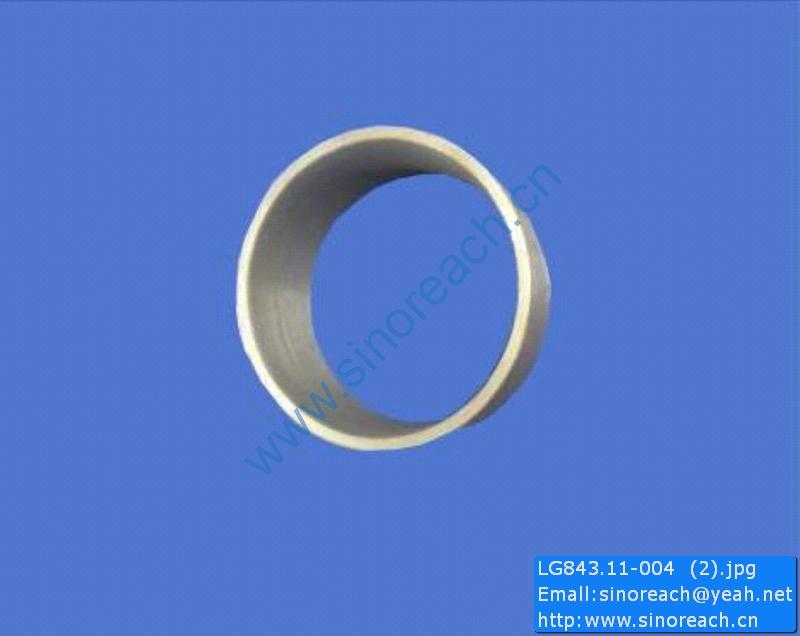

LG843.11-004 Tilt lever separation bush CDM833 parts

1 WZ30.4.6 手柄上盖 Upper knob 1
2 LA42(B)-11/R 按钮开关 Switch 1
3 WZ30.4.7 手柄下盖 Lower Knob 1
4 B-G000790-00002 螺钉M8×10ZnD Screw 1
5 B-G00862A-00003 垫圈5 Washer 2
6 B-G000650-00003 螺钉M5×20ZnD Screw 2
7 WZ30C.4B.1 档位操纵杆 Shift Lever 1
8 B-G057830-00132 螺栓M6×25ZnD Bolt 1
9 B-G057820-00048 螺栓M12×65ZnD Bolt 1
10 B-G00097B-00004 垫圈12ZnD Washer 2
11 WZ30.4-5 半圆键 Key 1
12 B-G008890-00002 螺母M12ZnD Nut 1
13 WZ30.4-6 档位操纵杆拉簧 Spring 1
14 B-G00097B-00021 垫圈6ZnD Washer 1
15 WZ30.4.5 操纵杆护套 Boot 1

1 WZ30.7-1 螺纹套 Thread Cover 1
2 WZ30.7-2 垫片 Washer 1
3 WZ30.7-3 密封圈 Ring 1
4 B-J07940A-00001 油杯M10×1 Grease Fitting 1
5 WZ30C.5B.1 传动轴 Drive Shaft 1
6 WZ30.7-5 螺栓 Bolt 4
7 B-G000930-00017 垫圈8 Washer 4
8 WZ30.7-4 连接片 Joint Plate 2

1 W-03-00031 转向桥|CAI45442S Front Axle 1
2 WZ30.6B-3 调整垫 Spacer 2
3 WZ30.6B-4 调整垫 Spacer 2
4 WZ30.6A-3 垫圈 Washer 2
5 WZ30.6A-4 销轴 Pin 1
6 B-J07940A-00001 油杯M10×1 Grease Fitting 1
7 WZ30.6-6 板 Plate 1
8 B-G000930-00001 垫圈 10 Washer 2
9 B-G057830-00003 螺栓 M10×20ZnD Bolt 2
