Description

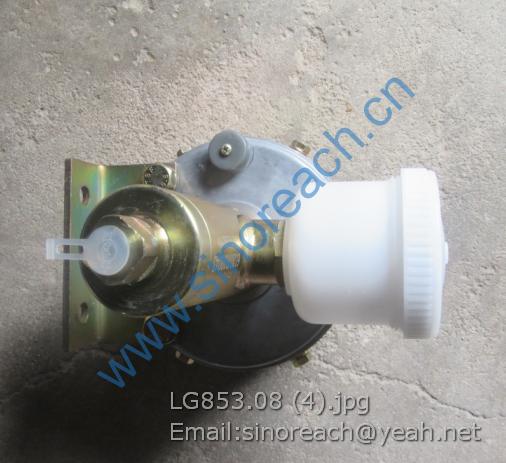

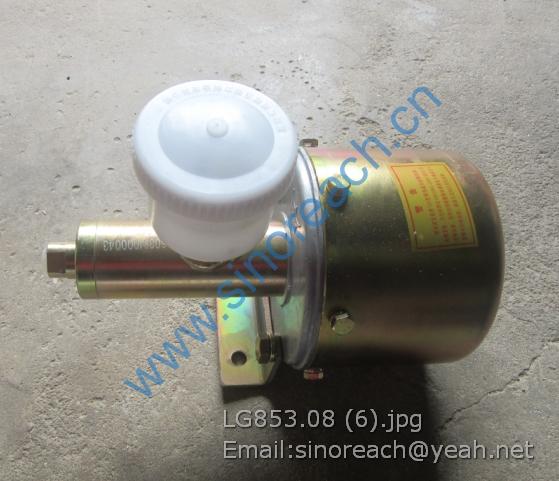

LG853.08.10A LYG60A 60301000043 Air booster pump for LONKING CDM853 spare parts
1 CDM6210.14.572 G3/4 END COVER G3/4 堵头 2
2 CDM6210.14.551 FLANGE COMPONENT 法兰组件 6
3 F78117191216(SL120)12
-1320-0°
HOSE ASSEMBLY 软管总成 1
4 F78117191216(SL120)12
-1600-0°
HOSE ASSEMBLY 软管总成 1
5 F78117191216(SL120)12
-1370-0°
HOSE ASSEMBLY 软管总成 1
6 F78117191216(SL120)12
-1640-0°
HOSE ASSEMBLY 软管总成 1
7 CDM6210.14.046 HOSE ASSEMBLY 软管总成 1
8 CDM6210.14.047 HOSE ASSEMBLY 软管总成 1
9 F78115191616(LS120)16
-1360
HOSE ASSEMBLY 软管总成 1
10 F78115191216(SL120)12
-1250
HOSE ASSEMBLY 软管总成 1
11 CDM6210.14.543 STRAIGHT CONNECTOR 直角接头 2
12 CDM6210.14.511 STRAIGHT CONNECTOR 直通接头 2
13 GB/T70.1 INNER HEXAGON SCREW M10×45 内六角螺钉 M10×45 2
14 GB/T6170 NUT M10 螺母 M10 1
15 GB/T97.1 WASHER 10 垫圈 10 1
16 CDM6210.14.06-01 PRESS PLATE 压板 2
17 CDM6210.14.550 FLANGE COMPONENT 法兰组件 4
1 CDM6210.14.572 G3/4 END COVER G3/4 堵头 2
2 F7811519121212-
1250(PG119)
HOSE ASSEMBLY 软管总成 2
3 CDM6210.14.07-01 BRACKET 支架 1
4 GB/T70.1 BOLT M12×20 螺栓 M12×20 1
GB/T5782 BOLT M12×60 螺栓 M12×60 1
5 GB/T70.1 INNER HEXAGON SCREW M10×45 内六角螺钉 M10×45 2
6 CDM6210.14.06.01 PIPE CLAMP 管夹 1
7 CDM6210.14.04-07 RUBBER SLEEVE D34 胶套 D34 2
8 GB/T5783 BOLT M12×30 螺栓 M12×30 2
9 CDM6210.14.07.02 BRACKET 支架 1
10 F7811515121212-
1000(SG131)
HOSE ASSEMBLY 软管总成 4
11 CDM6210.14.550 FLANGE COMPONENT 法兰组件 4
12 GB/T97.1 WASHER 12 垫圈 12 4
13 F7811519121612-1250 HOSE ASSEMBLY 软管总成 1
14 F78115191216(SL120)12
-1350
HOSE ASSEMBLY 软管总成 1
15 CDM6220.14.03.01 SMALL CHAMBER PIPE 小腔钢管 1
16 CDM6220.14.03.02 BIG CHAMBER PIPE 大腔钢管 1
17 CDM6210.14.551 FLANGE COMPONENT 法兰组件 6
1 CDM6210.14.002 HOSE ASSEMBLY 软管总成 1
2 O-RING Ф13.8×2.4 O 形圈Ф13.8×2.4 2
3 CDM6210.14.505 STRAIGHT CONNECTOR 直通接头 3
4 CDM6210.14.530 THREE-WAY CONNECTOR 三通接头 9
5 CDM6210.14.03.09 PIPE XAA1-XAA2 管 XAA1-XAA2 1
6 CDM6210.14.571 G3/8 END COVER G3/8 堵头 3
7 CDM6210.14.001 HOSE ASSEMBLY 软管总成 1
8 CDM6210.14.501 STRAIGHT CONNECTOR 直通接头 22
9 CDM6210.14.582 INNER SCREW CONNECTOR 内螺纹接头 2
10 CDM6210.14.03.07 PIPE PH-PG 管 PH-PG 1
11 CDM6210.14.581 REDUCING CONNECTOR 变径接头 2
12 CDM6210.14.03.08 PIPE PY-PZ 管 PY-PZ 1
13 CDM6210.14.531 THREE-WAY CONNECTOR 三通接头 2
14 CDM6210.14.580 DOUBLE NUT CONNECTOR 双螺母接头 1
15 CDM6210.14.583 SHUTTLE VALVE 梭阀 1
16 CDM6210.14-03 TIE PLATE 垫板 1
17 CDM6210.14.13.01 PT BLOCK COMPONENT PT 块组件 1
18 GB/T97.1 WASHER 8 垫圈 8 3
19 GB/T5783 BOLT M8×30 螺栓 M8×30 3
20 CDM6210.14.541 STRAIGHT CONNECTOR 直角接头 1
21 CDM6210.14.008 HOSE ASSEMBLY 软管总成 1
22 PIPE CLAMP D35×2 管夹 D35×2 1
23 GB/T70.1 INNER HEXAGON SCREW M10×20 内六角螺钉 M10×20 3
24 GB/T97.1 WASHER 10 垫圈 10 1
25 CDM6210.14.007 HOSE ASSEMBLY 软管总成 1
26 CDM6210.14.540 STRAIGHT CONNECTOR 直角接头 7
27 CDM6210.14.03.11 PIPE XBA1-XBA2 管 XBA1-XBA2 1
28 CDM6210.14.500 THROTTLE CONNECTOR 节流接头 4
29 F481CACF101005-500 HOSE ASSEMBLY 软管总成 1
30 CDM6210.14.004 HOSE ASSEMBLY 软管总成 1
31 CDM6210.14.003 HOSE ASSEMBLY 软管总成 1
