Description

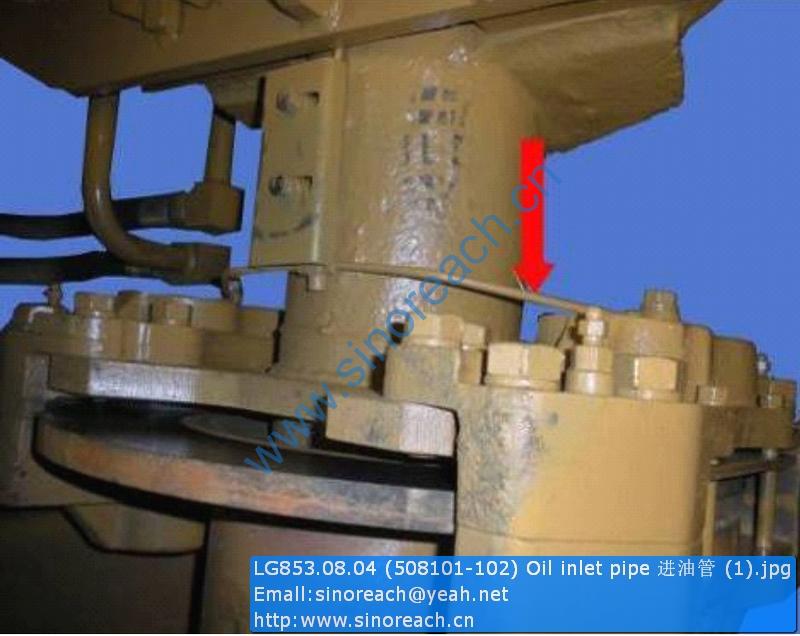

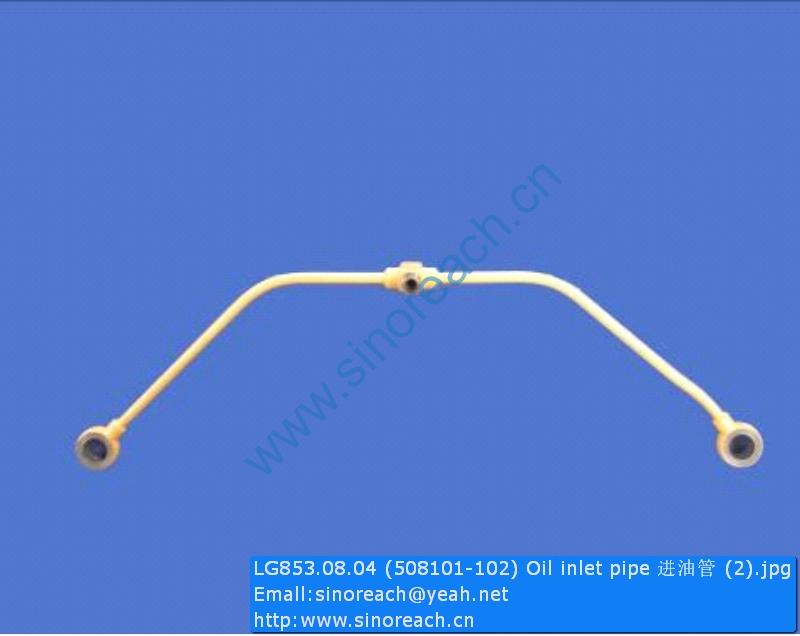

LG853.08.04 508101-102 Oil inlet pipe CDM853 CDM855 CDM855E CDM856 parts

1 B-G057820-00072 1 螺栓M16x115-10.9ZnD Bolt 2
2 B-G020490-00007 1 垫圈16 Washer 20
3 190C.1E-10 1 垫圈 Plate 2
4 722H.1-1 1 衬管 Spacer 6
722H.1-1 1 衬管 Spacer 4
5 220H.1E-2 1 板 Plate 1
6 722H.1-2 1 减震垫 Cushion 6
722H.1-2 1 减震垫 Cushion 4
7 190C.1E-9 1 减震垫 Cushion 4
8 B-G061700-00014 1 螺母M16ZnD Nut 2
9 B-G057830-00102 1 螺栓M20x65-10.9ZnD Bolt 2
10 B-G020490-00011 1 垫圈20 Washer 2
11 B-G061700-00018 1 螺母M20ZnD Nut 2
12 722H.1-4 1 板 Plate 2
13 722H.1-3 1 板 Plate 2
14 B-G057810-00009 1 螺栓M10X30ZnD Bolt 1
15 B-G057830-00181 1 螺栓M16x70ZnD Bolt 4
16 220C.1-1 1 撑杆 Plate 2
17 B-G061700-00010 1 螺母M14ZnD Nut 2
18 B-G057830-00154 1 螺栓M14x25ZnD Bolt 4
19 B-G020490-00005 1 垫圈14 Washer 12
20 B-G057860-00019 1 螺栓M14x1.5x45ZnD Bolt 8
21 W-02-00203 空气预滤器|KA50-5 Filter 1
22 220H.1.3 接管 Joint pipe 1
23 B-G057820-00074 1 螺栓M16x130-10.9ZnD Bolt 4
24 220C.1-8 1 板 Plate 2
25 220C.1-9 1 减震垫 Cushion 4
26 220C.1.3 1 支架 Support 2
27 B-G057830-00083 1 螺栓M16x65-10.9ZnD Bolt 4
28 220C.1-3 1 板 Plate 2
29 220C.1-4 1 垫片 Plate 4
30 220C.1-5 1 垫片 Plate 6

31 220C.1-6 1 垫片 Plate 8
32 W-02-00373 1 柴油机SC11CB220G2B1(C0053) Engine 1
33 B-G00097B-00002 1 垫圈10ZnD Washer 1
34 B-G000930-00001 1 垫圈10 Washer 1
35 220H.1-1 1 卡箍 Clamp 1
36 B-G061700-00003 1 螺母M10ZnD Nut 1
37 190C.1E-11 1 衬管 Spacer 2
38 190C.1E-12 1 减震垫 Cushion 2
39 W-02-00252 1 预紧力弹簧卡箍60 Preload Spring Clamp 4
40 W-02-00185 1 预紧力弹簧卡箍75 Preload Spring Clamp 4
