Description

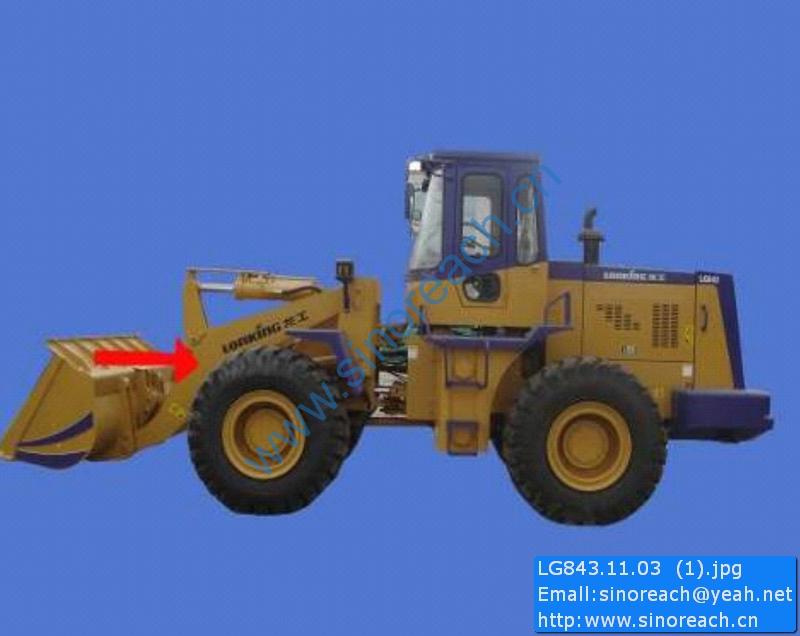

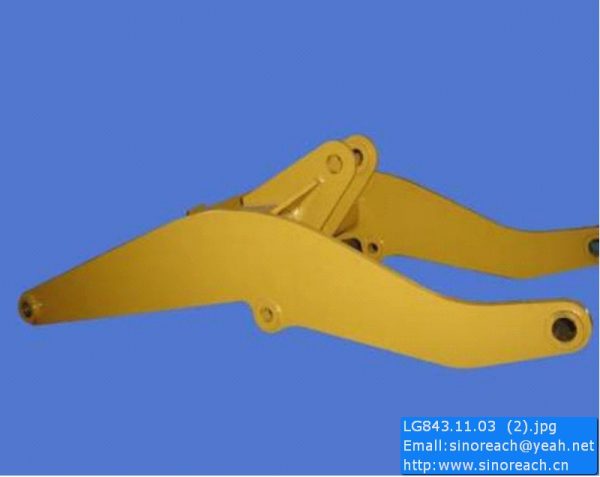

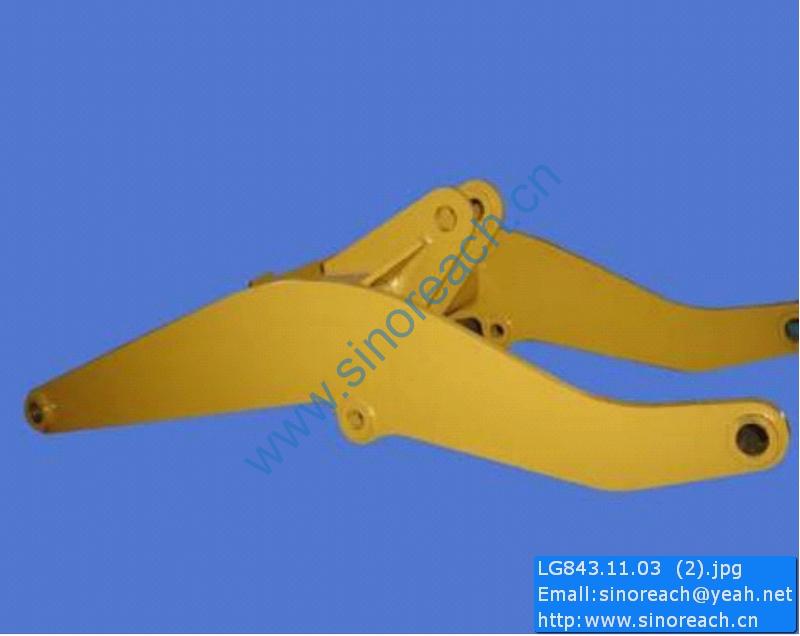

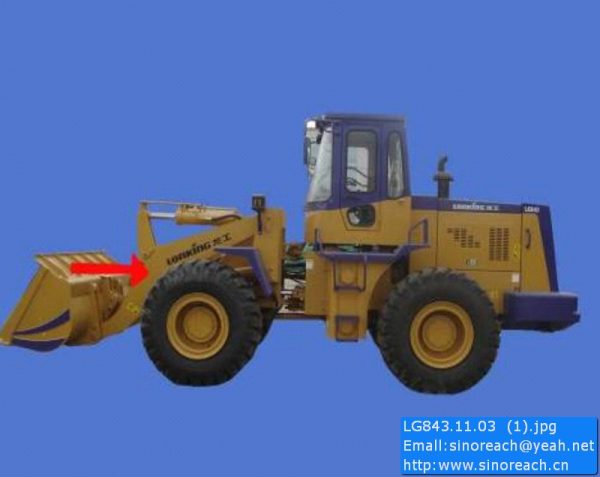

LG843.11.03 Lift arm CDM843 parts

1 B-Q020490-00009 垫圈18 Washer 6
2 B-G057830-00187 螺拴M18×80-10.9ZnD Bolt 6
3 WZ30C.1B.4 支座 Support 1
4 B-G057850-00081 螺栓M20×1.5×120-10.9ZnD Bolt 2
5 Z18.1-14 垫圈 Washer 4
6 Z18.1.9 缓冲垫 Plate 2
7 B-Q020490-00003 垫圈12 Washer 8
8 B-G057830-00036 螺拴M12×35-10.9ZnD Bolt 8
9 WZ30C.1B.1 柴油机支座 Support 1
10 B-Q020490-00011 垫圈20 Washer 2
11 B-G061710-00014 螺母M20×1.5ZnD  Nut  2
12 W-02-00132 道依茨TD226B-4柴油机 Engine 1
13 WZ30C.1B-7 隔套 Sleeve 2

1 Z30.1A.1 接头体 Joint 1
2 B-G00097B-00021 垫圈6ZnD Washer 3
3 B-G061700-00034 螺母M6ZnD Nut 3
4 WZ30.1C.1-1 软轴支架 Bracket 1
5 B-G057830-00139 螺栓M8×20ZnD Bolt 5
6 B-Q020490-00023 垫圈8 Washer 5
7 W-02-00165 油门控制器 Throttling controller 1
8 B-G057830-00186 螺栓M6×40ZnD Bolt 2
9 B-G00097B-00021 垫圈6 Washer 2
