Description

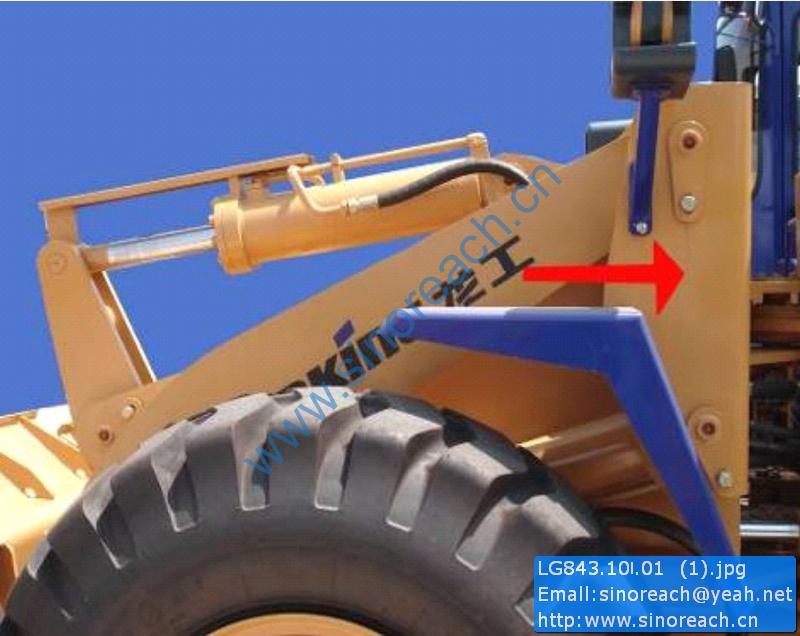

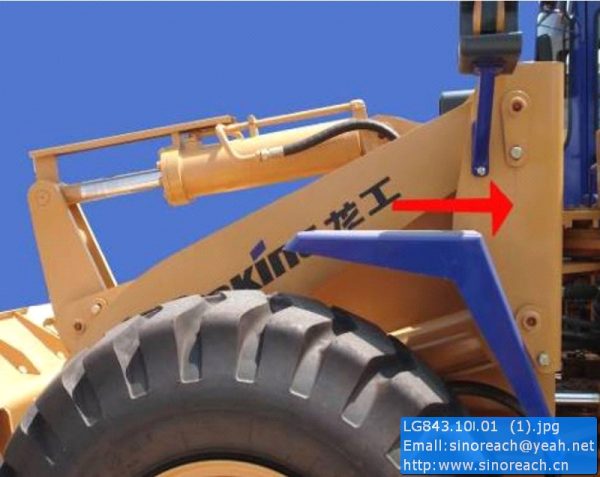

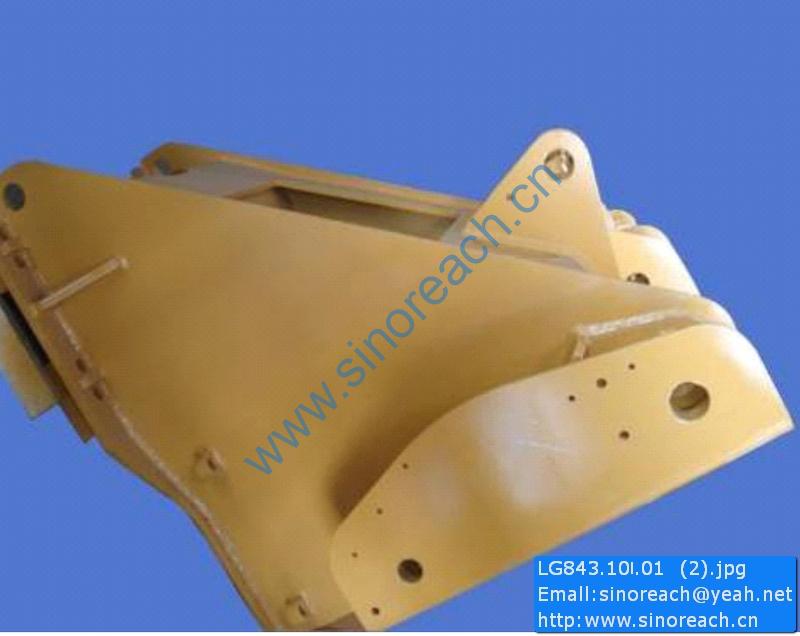

LG843.10Ⅰ.01 Front frame CDM843 parts

1 B-G057820-00096 螺栓M16×95-10.9ZnD Bolt 4
2 B-Q020490-00007 垫圈16 Washer 5
3 Z60F.12-2 盖 Cover 1
4 Z60F.12-4 调整垫片 Pad 10
5 Z6OF.12-5 调整垫片 Pad 2
6 Z60F.12-6 调整垫片 Pad 4
7 Z60F.12-3 隔套 Apace sleeve 1
8 Z60F.12-9 轴承盖 Cover 1
9 B-G10708C-00002 防尘圈FB100x115x9 Dust ring 2
10 Z60F.12-7 调整垫片 Pad 20
11 Z60F.12-8 调整垫片 Pad 20
12 B-G091630-00008 轴承GE90ES Bearing 2
13 Z60F.12-12 隔套 Apace sleeve 1
14 Z60F.12-11 上铰接销轴 Hinge pin 1
15 Z60F.12-10 挡圈 Snap ring 1
16 B-G057830-00067 螺栓M16×30-10.9ZnD Bolt
17 B-Q020490-00003 垫圈12 Washer 26
18 B-G057830-00040 螺栓M12×40-10.9ZnD Bolt 20
19 Z60F.12-13 衬套 Bushing 2
20 Z60F.12-14 轴承盖 Cover 1
21 B-G10708C-00007 防尘圈FB90×100×7 Dust ring 2
22 B-Q01201F-00034 铰销组件90×224B Hinge pin ass’y 1
23 B-Q01201E-00004 垫圈16 Washer 1
24 B-G057830-00065 螺栓M16×25-10.9ZnD Bolt 1
25 B-G057820-00040 螺栓M12×50-10.9ZnD Bolt 6
26 Z60H.12.10 右支架 Right surpport 1
27 B-G057820-00153 螺栓M24×90-10.9ZnD Bolt 8
28 B-Q020490-00015 垫圈24 Washer 14
29 B-G061700-00023 螺母M24ZnD Nut 8
30 B-J07940B-00001 油杯45°M10×1 Grease fitting 2

31 B-Q01201F-00042 铰销组件50×140A Hinge pin ass’y 2
32 B-G057830-00027 螺栓M12×20-10.9 ZnD Bolt 2
33 B-Q01201E-00002 垫圈12 Washer 2
34 B-G000910-00008 销10×60ZnD Pin 1
35 Z50B.12.14 销 Pin 1
36 Z60F.12-1 车架锁 Lock 1
37 Z50B.12.16 保险销 Locking pin 1
38 Z50B.12.15 销 Pin 1
39 Z60F.12-15 右盖板 Right plate 1
40 Z60F.12-16 左盖板 Left plate 1
41 B-G057830-00139 螺栓M8×20ZnD Bolt 8
42 B-G00097B-00023 垫圈8ZnD Washer 8
43 Z60H.12.9 左支架 Left support 1
44 Z60H.12.3 右电瓶箱 Right battery 1
45 B-G057820-00141 螺栓M24×210-10.9ZnD Bolt 4
46 Z50B.12.17 保险销 Locking pin 1
47 Z50B.12-12 牵引销 Pin 1
48 B-G057820-00193 螺栓M24×390-10.9 ZnD Bolt 2
49 Z60H.12.5 左电瓶箱 Left battery 1
50 B-Q020490-00011 垫圈20 Washer 6
51 B-G057830-00101 螺栓M20×60ZnD Bolt 6
52 Z60H.12.4 配重 Balance weight 1
53 Z60H.12.2 后车架 Rear frame 1
