Description

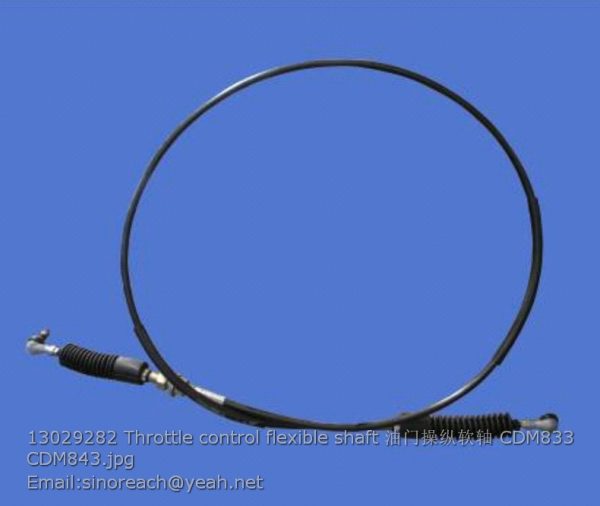

13029282 Throttle control flexible shaft for LONKING WHEEL LOADER CDM833 CDM843
| 1 |
ZL307200-10 |
拉杆头 |
Pull rod head |
1 |
|
| 2 |
ZL307200-20 |
活塞杆 |
Piston rod |
1 |
|
| 3 |
A5 7020 N3587 |
防尘圈70×80×7 |
Dust ring 70×80×7 |
1 |
|
| 4 |
GB894.2-86 |
轴用弹性挡圈105 |
Elastic spacer for shaft 105 |
1 |
|
| 5 |
GB3452.1-82 |
○形圈100×2.65 |
O-ring 100×2.65 |
1 |
|
| 6 |
ZL307200-60 |
环 |
Ring |
1 |
|
| 7 |
GB3452.1-82 |
○形圈118×3.55 |
O-ring 118×3.55 |
1 |
|
| 8 |
ZL307200-70 |
弹簧挡圈125×5 |
Spring spacer 125×5 |
1 |
|
| 9 |
GB3452.1-82 |
○形圈115×5.3 |
O-ring 115×5.3 |
1 |
|
| 10 |
ZL307200-30 |
导向套 |
Guide sleeve |
1 |
|
| 11 |
B3 7085 P5008 |
Y形圈 |
Y-ring |
1 |
|
| 12 |
ZL307200-40 |
活塞 |
Piston |
1 |
|
| 13 |
F3 25150 |
支承环120×125×15 |
Support ring 120×125×15 |
2 |
|
| 14 |
OK 0125 00701 |
OK密封圈125×104×8 |
OK ring 125×104×8 |
1 |
|
| 15 |
GB/T78-2000 |
螺钉M12×30 |
Screw M12×30 |
1 |
|
| 16 |
ZL307200-50 |
缸体 |
Cylinder body |
1 |
|
| 17 |
GB893.2-86 |
挡圈75 |
Spacer 75 |
2 |
|
| 18 |
GB9163-90 |
关节轴承GE50ES |
Joint bearing GE50ES |
1 |
|
| 1 |
ZL307100-10 |
活塞杆 |
Piston rod |
1 |
|
| 2 |
A5 8008 N3587 |
防尘圈80×92×12 |
Dust ring |
1 |
|
| 3 |
BS 8095 P5008 |
Y形圈80×95×11.4 |
Y-ring 80×95×11.4 |
1 |
|
| 4 |
GB/T5783-2000 |
螺栓M20×90 |
Bolt M20×90 |
2 |
|
| 5 |
GB/T93-1987 |
垫圈20 |
Washer 20 |
8 |
|
| 6 |
OD 0800 052 00171 D |
OD密封圈80×95.1×6.3 |
OD seal 80×95.1×6.3 |
1 |
|
| 7 |
ZL307100-20 |
导向套 |
Guide sleeve |
1 |
|
| 8 |
GB3452.1-82 |
○形圈128×5.3 |
O-ring 128×5.3 |
1 |
|
| 9 |
FR 080A P5008 |
支承环80×85×9.7 |
Support ring 80×85×9.7 |
1 |
|
| 10 |
FR D051 Q5029 |
支承环135×140×15 |
Support ring 135×140×15 |
2 |
|
| 11 |
OK 0140 00701 |
OK密封圈140×119×8 |
OK ring 140×119×8 |
1 |
|
| 12 |
GB3452.3-88 |
○形圈50×5.3 |
O-ring 50×5.3 |
1 |
|
| 13 |
ZL307100-30 |
活塞 |
Piston |
1 |
|
| 14 |
ZL307100-40 |
槽型螺母 |
Castle nut |
1 |
|
| 15 |
ZL307100-50 |
缸体 |
Cylinder body |
1 |
|
| 16 |
GB91-86 |
开口销%%c8×90 |
Cotter pin %%c8×90 |
1 |
|
| 17 |
GB893.2-86 |
弹性挡圈90 |
Elastic spacer 90 |
2 |
|
| 18 |
GB9163-90 |
关节轴承GE60ES |
Joint bearing GE60ES |
1 |
|
| 19 |
GB/T5873-2000 |
螺栓M20×80 |
Bolt M20×80 |
6 |
|
| 1 |
LG853.13.08.04 |
空气滤清器 |
Air cleaner |
1 |
QL-10C |
| 2 |
GB/T5783 |
螺栓M8×20 |
Bolt M8×20 |
4 |
|
| 3 |
GB/T93 |
垫圈8 |
Washer 8 |
4 |
|
| 4 |
GB/T97.1 |
垫圈8 |
Washer 8 |
4 |
|
| 5 |
LG30F.13.09.01 |
液压油箱体 |
Hydraulic oil tank case |
1 |
307501-524D |
| 6 |
LG843.13.09.02 |
吸回油滤油器 |
Oil suction/return filter |
2 |
307525-527D |
| 7 |
LG853.13.08-002 |
垫片 |
Gasket |
5 |
|
| 8 |
LG843.13.09.03 |
回油法兰盖（二） |
Oil return flange cover (2) |
1 |
|
| 9 |
LG853.13.08.05 |
圆型油标 |
Dip stick |
2 |
|
| 10 |
GB/T5783 |
螺栓M10×30 |
Bolt M10×30 |
30 |
|
| 11 |
GB/T93 |
垫圈10 |
Washer 10 |
30 |
|
| 12 |
GB/T97.1 |
垫圈10 |
Washer 10 |
30 |
|
| 13 |
LG30F.13.09.02 |
吸油法兰 |
Oil suction flange |
1 |
307531-533D |
| 14 |
LG853.13.08-003 |
磁铁φ80×φ40×12 |
Magnet φ80×φ40×12 |
1 |
|
| 15 |
LG853.13.08.03 |
放油盖 |
Oil drain cover |
1 |
|
| 16 |
LG853.13.08-001 |
堵头 |
Plug |
1 |
|
| 17 |
GB/T5783 |
螺栓M16×40 |
Bolt M16×40 |
2 |
|
| 18 |
GB/T93 |
垫圈16 |
Washer 16 |
5 |
|
| 19 |
GB/T97.1 |
垫圈16 |
Washer 16 |
5 |
|
| 20 |
GB/T5783 |
螺栓M16×35 |
Bolt M16×35 |
3 |
|
| 21 |
LG843.13.09-001 |
法兰盖 |
Flange cover |
2 |
|
