Description

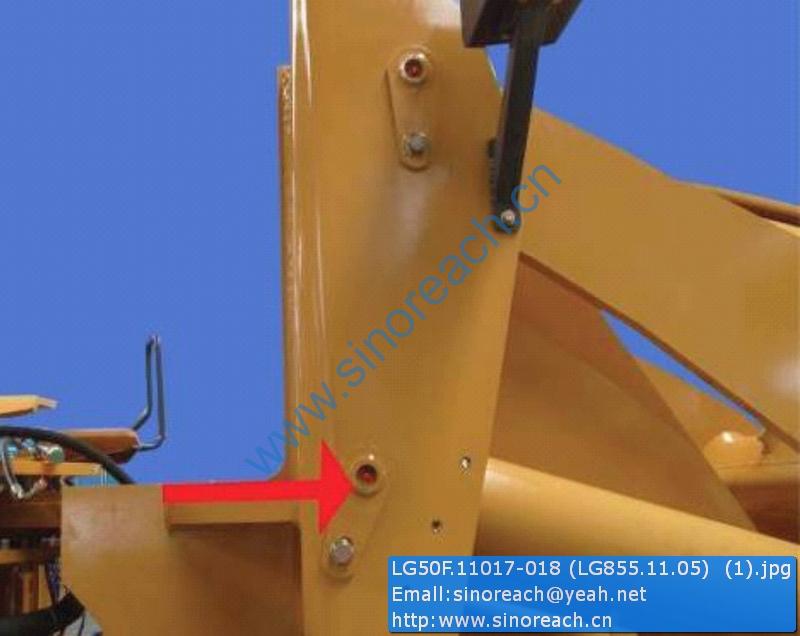

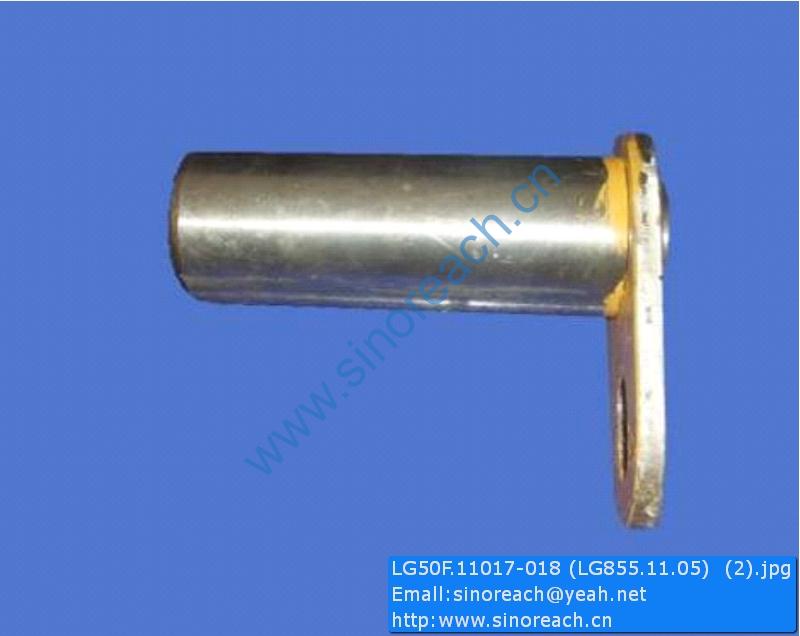

LG50F.11017-018 LG855.11.05 Lift cylinder upper pin CDM855 CDM856 parts

1 W-03-00010 后桥|3.28694.3 Rear axle 1
2 Z60F.8-6 后桥支撑 Rear axle support 1
3 B-Q020490-00007 垫圈16 Washer 24
4 B-G057860-00080 螺栓M16×1.5×40-10.9ZnD Bolt 8
5 B-Q020790-00001 YQ型密封圈d120 Yx-ring 1
6 Z60F.8-5A 后衬套 Rear bushing 1
7 B-G061710-00020 螺母 M27×2-10ZnD Nut 8
8 B-Q020490-00017 垫圈27 Washer 8
9 Z60F.8-1 摆架 Walking beam 1
10 Z60F.8-11 调整垫 Spacer 1组
11 B-G057850-00044 螺栓M27×2×220-10.9ZnD Bolt 4
12 Z60F.8-4A 止推垫 Thrust spacer 2
13 Z60F.8-3 止推板 Thrust Plate 1
14 B-G057820-00082 螺栓M16×60-10.9ZnD Bolt 16
15 Z60F.8-2 盖板 Cover 1
16 Z60F.8-7 密封圈 Ring 1
17 Z60F.8-8A 前衬套 Front bushing 1
18 B-Q020520-00001 O形圈229.3×5.7 O-ring 1
19 Z60F.8-10 密封圈 Ring 1
20 Z60F.8-9 前座圈 Front seat ring 1
21 B-Q020490-00003 垫圈12 Washer 6
22 B-G057830-00040 螺栓M12×40-10.9ZnD Blot 6

1 Z60F.9-4 螺栓 Bolt 2
2 Z60F.9-5 铜垫 Copper washer 4
3 Z60H.9.1 前桥油管（右） Pipe 1
4 B-G057830-00137 螺栓 M8x16ZnD Bolt 4
5 B-Q020050-00013 线夹C8x36 Nip 4
6 B-Q020710-00006 O形圈11×1.9 O-ring 4
7 Z60H.9.2 前桥油管（左） Pipe 1
8 Z60H.9-3 三通接头 Joint 1
9 Z60F.9.9 胶管接头 Joint 1
10 B-Q020050-00013 线夹C18x37 Nip 1
11 B-G057830-00137 螺栓 M12x20ZnD Bolt 1
12 Z60F.9-9 接头 Joint 2
13 B-J010020-00004 垫圈 16 Washer 1
14 W-18-00005 加力器|Z50F-351002 Brake booster 1
15 B-G00097B-00004 垫圈 12 ZnD Washer 2
16 B-G000930-00003 垫圈 12 Washer 4
17 B-G057830-00030 螺栓M12x25 ZnD Bolt 2
18 B-G061700-00007 螺母 M12ZnD Nut 2
19 B-G057830-00037 螺栓M12x35 ZnD Bolt 4
20 Z60F.9-6 前加力器支架 Support 1
