Description

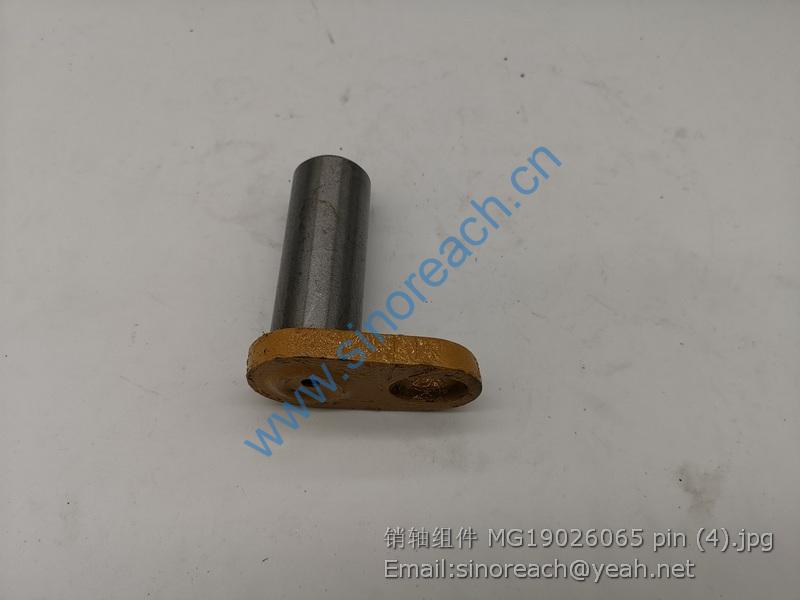

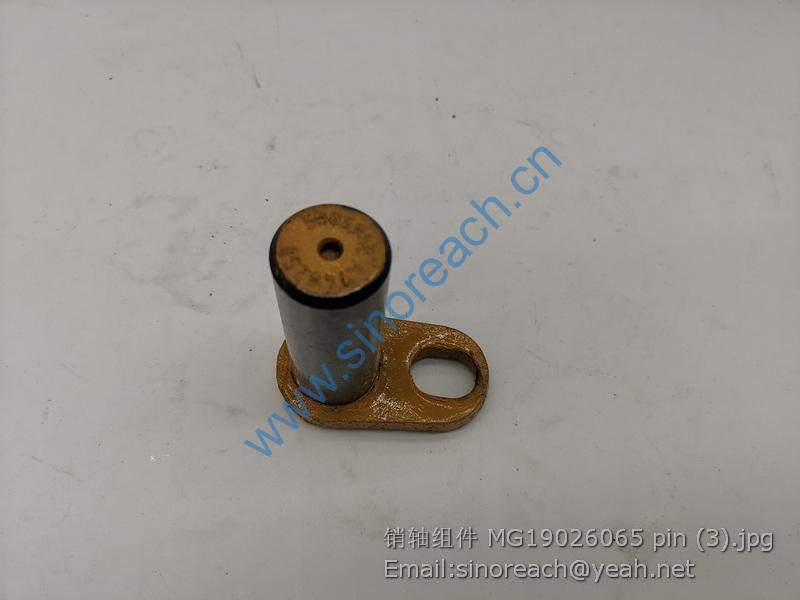

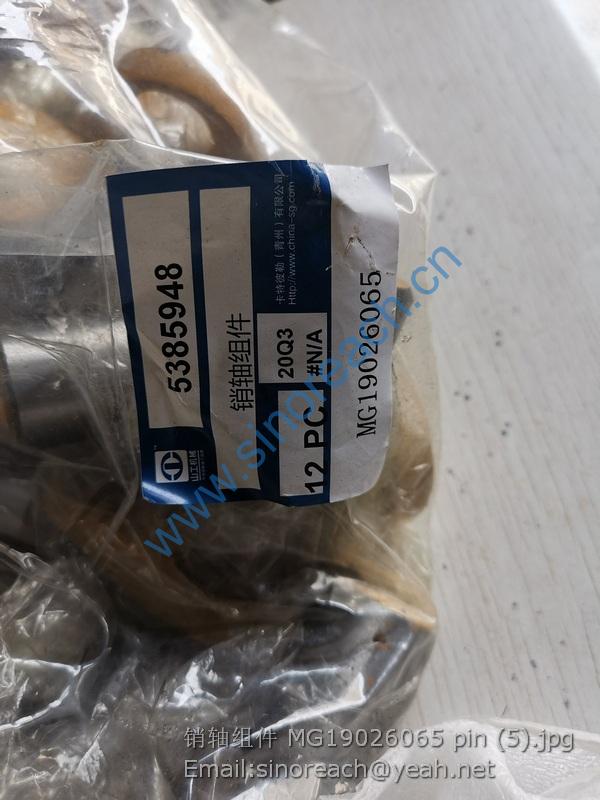

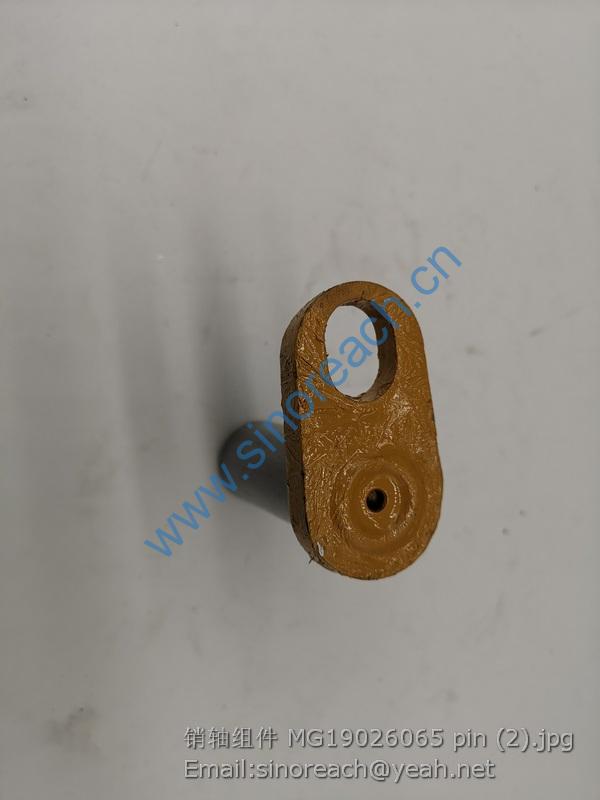

MG19026065 pin 5385948
301 螺栓 M10×20 Bolt M10×20 B040911020 8.00
302 垫圈 10 Washer 10 B060411002 8.00
303 端盖 End cap MG19026053 1.00
304 螺栓 M12×45 Bolt M12×45 B040861245 6.00
305 O 型圈 142.5×3.55 O-ring 142.5×3.55 B160131425 1.00
306 垫圈 12 Washer 12 B060411203 6.00
307 挡板 Guard MG19026052 1.00
308 调整垫片 Trimmed gasket MG19026010 4.00
309 调整垫片 Trimmed gasket MG19026051 1.00
310 调整垫片 Trimmed gasket MG19026082 3.00
311 轴承 32017 Bearing 32017 W44000002 1.00
312 轮毂 HUB MG19026027 1.00
313 油杯 M10×1 Oil cup M10×1 B150101000 1.00
314 轴承 32018 Bearing 32018 W44000001 1.00
315 骨架油封 Skeleton type oil seal W44000010 1.00
316 防尘罩 Dust boot MG19026048 1.00
317 摆动桥架(右) Oscillating axle frame(R) MG19026005 1.00
317 摆动桥架（左） Oscillating axle frame (L) MG19026070 1.00
318 衬套 Bushing MG19026029 2.00
1 右平衡箱总成 Right stability tank assembly W44002001 1
2 行星减速器总成 Planetary reduction 2
3 螺栓 M16×1.5×110 BoltM16×1.5×110 W44002016 16
4 垫圈 16 Washer 16 B060461603 GB/T97.1-2002 32
5 主减速器总成 Main reducer W44002004 1
6 通气塞 Plug W44002003 1
7 螺栓 M16×1.5×85 BoltM16×1.5×85 B041061685 GB/T5785-2000 16
8 左平衡箱总成 Left stability tank assembly W44002005 1
9 半轴 Axle shaft W44002006 80513003 1
10 半轴 Axle shaft W44002007 80513005 1
11 销 16×70 Pin 16×70 W44002017 4
12 制动器总成 Brake assembly W44002100 84787100 4
2 制动蹄总成 Shoe brake
W44002102
84787105 2
13 轮辋螺栓 Wheel rim Bolt W44002012 40
14 花键毂 Hub W44002009 4
15 制动鼓 Brake drum W44002010 4
16 轮辋螺母 Wheel rim Nut W44002011 40
17 支承套 Sleeve W44002013 4
18 圆螺母 M75×2 Nut M75×2 W44002014 4
9 紧定螺钉 M14×32 Threaded screw M14×32 W44002015 8
20 螺钉 M10×30 Threaded screw M10×30 B010411030 GB/T70.1-2000 12
4 连接法兰组件 Flange W44002019 82513602 1
5 螺栓 M14X1.5X55 Bolt M14X1.5X55 B041111455 50011011 7
6 垫圈 14 Washer 14 B060461403 52020005 7
7 螺栓 M12X1.5X55 Bolt M12X1.5X55 B041011255 50011008 1
8 垫圈 12 Washer 12 B060461203 52020004 1
9 盖 Cover W44002020 82513616 1
10 油封 Oil seal W44002021 53510007 1
11 油封 Oil seal W44002022 53510008 1
12 盖总成 Cover W44002023 82513603 1
13 轴承 31313 Bearing 31313 B120400016 54100014 1
14 轴承座 Bearing carrier W44002024 82513607 1
15 调整垫片组 Adjusting shim group W44002025 79605001 1
16 轴承隔套组 Bearing spacer W44002026 82513617 1
17 轴承 31314 Bearing 31314 B120400017 54100015 1
18 主传动齿轮副 Drive gear W44002027 82513601 1
19 挡圈 90 Retainer 90 B070259503 52100012 1
20 轴承 142807Y Bearing 142807Y W110010110 54500006 1
21 螺栓 M8X16 Bolt M8X16 B040810816 50004012 4
23 锁紧片 LOCK PLATE W44002028 82513611 2
