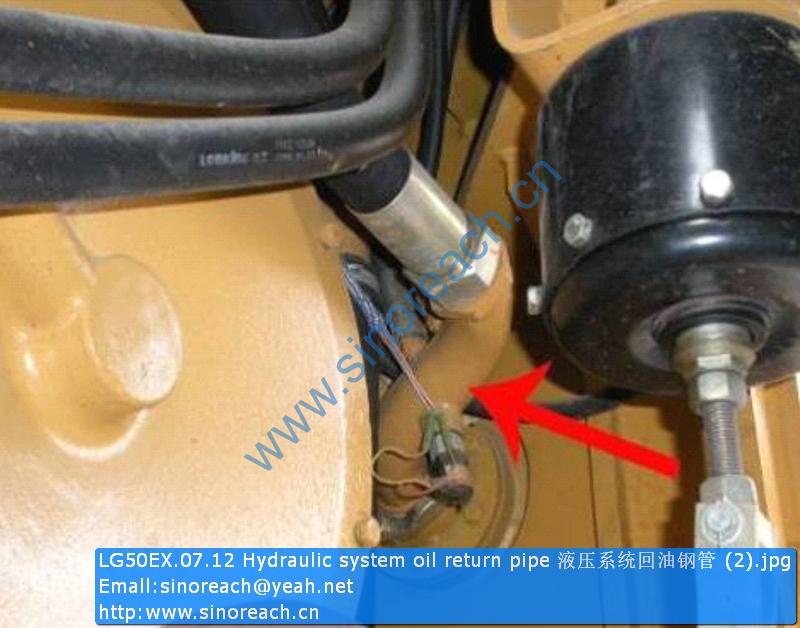

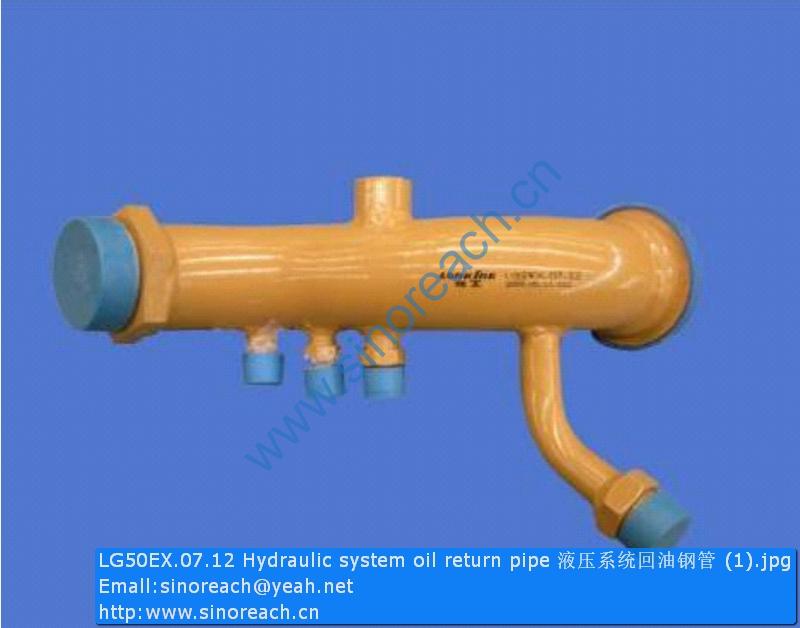

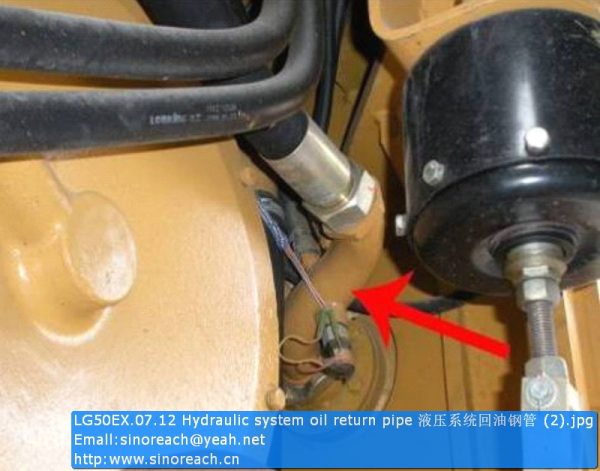

LG50EX.07.12 Hydraulic system oil return pipe CDM855E parts

1
01B0102
000
螺栓
BOLT
4
2
06B0176
003
垫圈
WASHER
26
3
17A0258
000
盖板
COVER
1
4
00B0058
000
螺栓
BOLT
2
5
55A0341
000
轴衬
BUSHING
1
6
01B0166
000
螺栓
BOLT
6
7
53A0058
000
盖
CAP
1
8
34C0092
001
调整垫
SHIM
1
9
55A0337
000
圆锥滚子轴承外圈
OUTER RACE
2
10
23B0022
000
圆锥滚子轴承锥体
CONE
2
11
53A0059
000
盖
CAP
1
12
13B0351
000
唇形密封圈
LIP TYPE SEAL
2
13
60A0087
000
上铰接销
PIN
1
14
55A0338
000
轴承
BEARING
1
15
60A0090
000
下铰接销
PIN
1
16
55A0141
000
隔套
SPACER SLEEVE
1
17
13B0352
000
唇形密封圈
LIP TYPE SEAL
1
18
01B0208
000
螺栓
BOLT
8
19
53A0155
000
上盖
COVER
1
20
34C0093
001
调整垫
SHIM
1
21
55A0339
000
圆锥滚子轴承外圈
OUTER RACE
2
22
23B0023
000
圆锥滚子轴承锥体
CONE
2
23
13B0353
000
唇形密封圈
LIP TYPE SEAL
1
24
53A0060
000
下盖
CAP
1
25
55A0340
000
隔套
SPACER SLEEVE
1
26
34C0094
001
调整垫
SHIM
1
27
00B0013
000
螺栓
BOLT
6
28
53A0156
000
锁板
LOCK PLATE
1
29
4
29
06B0015
001
垫圈
WASHER
4
30
00B0094
000
螺栓
BOLT
4
31
10B0014
000
油杯
GREASE FITTING
2

1
CDM6210.14.06.01
PIPE CLAMP
管夹
1
2
GB/T5783
BOLT M12×30
螺栓 M12×30
35
3
GB/T97.1
WASHER 12
垫圈 12
35
4
CDM6210.14.04-07
RUBBER SLEEVE D34
胶套 D34
18
5
CDM6220.22-01
PIPE CLAMP
管夹
3
6
GEO10R3/8EDOMDA3C
STRAIGHT CONNECTOR
直通接头
2
7
F481CFCF101005-450-0°
HOSE
软管
1
8
M1M1HK-16
FLANGE COMPONENT
法兰组件
14
9
CDM6220.22.03
OIL PIPE A
油管 A
1
10
CDM6220.22.02
BREAK OIL RETURN PIPE
破碎回油管
1
11
EL10LROMDA3C
THREE-WAY CONNECTOR
三通接头
1
12
GEO10LR1/4OMDA3C
STRAIGHT CONNECTOR
直通接头
1
13
F481CACA101005-1800
HOSE
软管
1
14
CDM6220.22.01
BREAK OIL INLET PIPE
破碎进油管
1
15
F4611515161616-
1170(PG-119)
HOSE
软管
1
16
F4211515161616-
1050(PG-119)
HOSE
软管
1
17
CDM6220.22-02
PIPE CLAMP
管夹
2
18
CDM6220.22-03
PIPE CLAMP
管夹
24
19
F4611515161616-1350
HOSE
软管
2
20
CDM6220.22.04
OIL PIPE B
油管 B
1
