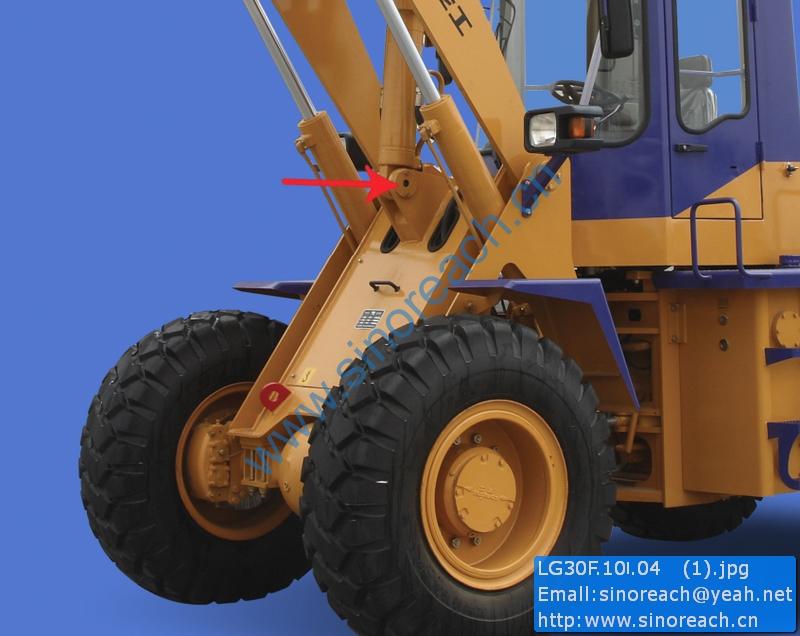

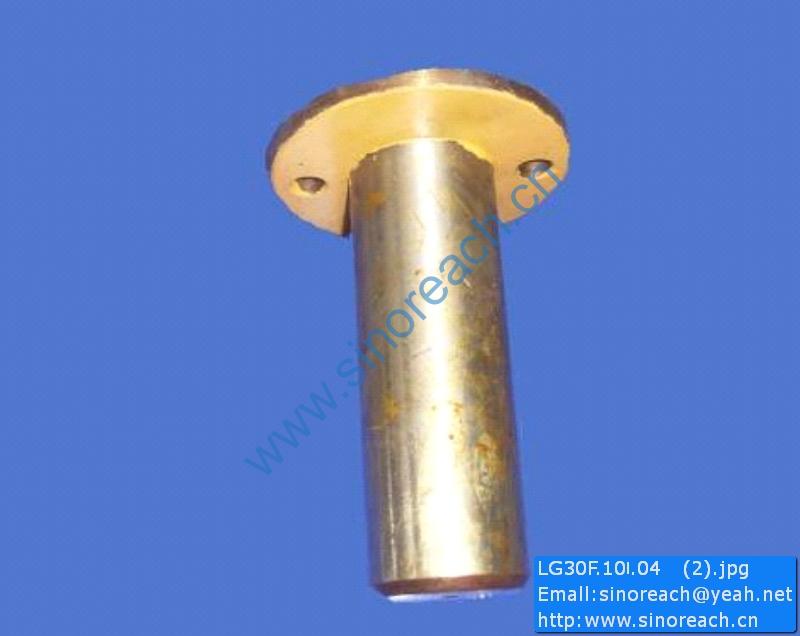

LG30F.10Ⅰ.04 Tilt cylinder rear pin for CDM833 CDM835 spare parts

1 NJ130-2201023-D 突缘叉 Flange Yoke 2
2 HWJ3-002-00 万向节总成 Universal Joint Assembly 2
3 外花键轴总成 Outer Spline Shaft Assembly 1 特制
4 NJ130-2201021-W 内花键轴总成 Inner Spline Shaft Assembly 1
5 NJ130-2202120 弹性挡圈 Retaining Ring 8
6 GB1152-89 油嘴M10×1 Oil Grease M10×1 1
7 GB6182-86 螺母M12-9 Nut M12-9 4
8 GB5783-86 螺栓M12×35-9.8 Bolt M12×35-9.8 4
9　 NJ130-2201017 挡油片 Block Oil Slice 1
10　 NJ130-2201065 油封盖 Oil Seal Cover 1

1 NJ130-2201023-D 突缘叉 Flange Yoke 1
2 HWJ3-002-00 万向节总成 Universal Joint Assembly 1
3 NJ130-2201018W 万向节叉 Universal Joint Yoke 1
4 NJ130-2202016 中间轴 Transmission Shaft 1
5 　 支承架总成 Supporting Bracket Assembly 1
6 NJ130-2202111 连接凸缘 Connecting Flange 1
7 NJ130-2402041 垫片 Spacer 1
8 3041A1115 螺母 Nut 1
9 Q5003240 销 Pin 1
10 GB5783-86 螺栓 M12×35-9.8 Bolt M12×35-9.8 8
11 GB6182-86 螺母 M12-9 Nut M12-9 10
12 GB5783-86 螺栓 M12×45 Bolt M12×45 2
13 NJ130-2202120 弹性挡圈 Retaining Ring 4

1 GB1152-89 油杯M10×1 Oil Cup M10×1 6
2 WZ30-25.21-3 销轴 Shaft 1
3 WZ30-25.21-4 轴套 Shaft sleeve 2
4 GB5782-86 螺栓M10×90 Bolt M10×90 2
5 GB6170-86 螺母M10 Nut M10 2
6 GB93-87 垫圈10 Washer 10 2
7 WZ30-25.21.3 拉杆 Pull Rod 1
8 WZ30-25.21.2 摇杆 Rock Rod 2
9 WZ30-25.21-1 轴套 Shaft sleeve 6
10 WZ30-25.21-2 隔套 Sleeve 3
11 WZ30-25.21.8 固定板销轴 Shaft End Retaining Plate 2
12 GB5783-86 螺栓M12×25 Bolt M12×25 9
13 GB93-87 垫圈12 Washer 12 9
14 GB95-85 垫圈12 Washer 12 9
15 WZ30-25.21-14 销轴 Shaft 1
16 GB93-87 垫圈20 Washer 20 1
17 GB5783-86 螺栓M20×40 Bolt M20×40 1
18 WZ30-25.21-15 挡板 Baffle 1
19 WZ30-25.21-9 轴套 Shaft sleeve 2
20 WZ30-25.21-10 隔套 Sleeve 1
21 WZ30-25.21.12 固定板销轴 Shaft End Retaining Plate 1
22 WZ30-25.21-13 调整垫 Adjusting Sleeve 2
23 WZ30-25.21-11 销轴 Shaft 2
24 WZ30-25.21-12 挡板 Baffle 2
25 GB5783-86 螺栓M8×20 Bolt M8×20 4
26 GB93-87 垫圈8 Washer 8 4
27 WZ30-25.21.11 固定板销轴 Shaft End Retaining Plate 1
28 WZ30-25.21.4 挖掘斗 Bucket 1
29 WZ30-25.21.1 斗杆 Rocker 1
30 GB5782-86 螺栓M18×60 Bolt M18×60 6
31 GB93-87 垫圈18 Washer 18 6
32 GB6170-86 螺母M18 Nut M18 6
33 WZ30-25.21.14 软轴拉线 Soft Shaft 1
34 GB91-86 开口销6.3×40 Pin6.3×40 2
35 GB882-86 销轴B30×80 Shaft B30×80 2
36 WZ30-25.21.6 固定座 Fixed Device 1
37 WZ30-25.21.7 回转体 Turning Body 1
38 2713-9064/2713-9065 边齿 Edge Bucket Tooth 各1
39 2713-9061/62/63 中齿 Middle Bucket Tooth 4套
