Description

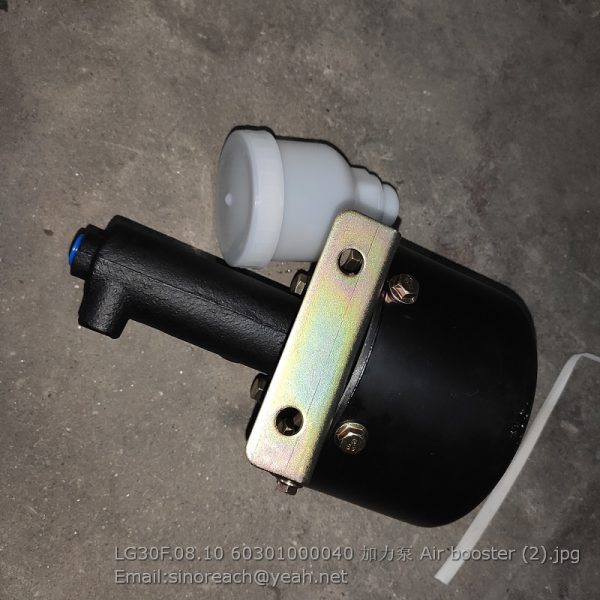

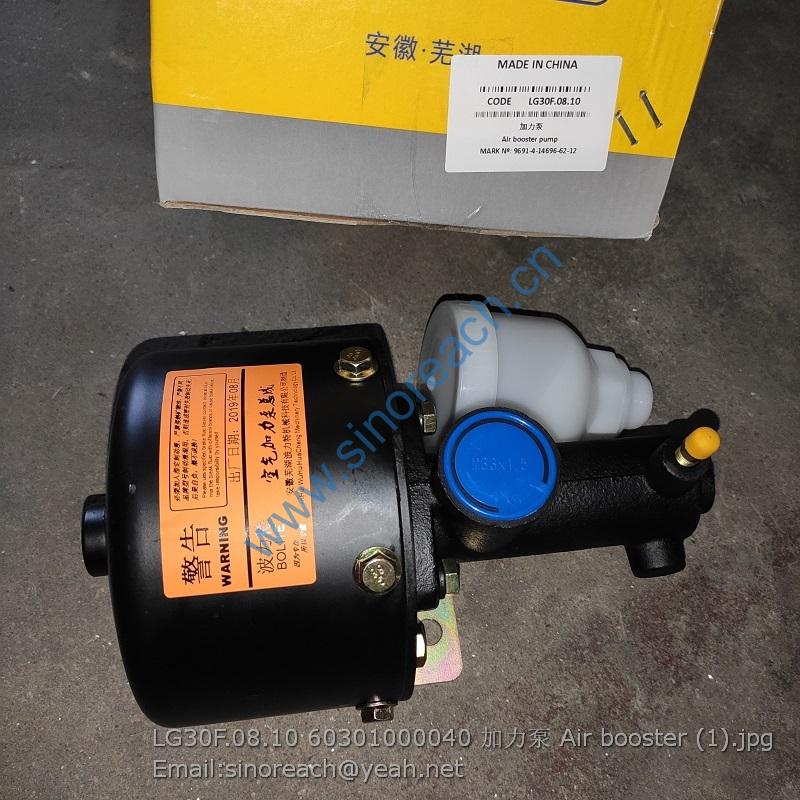

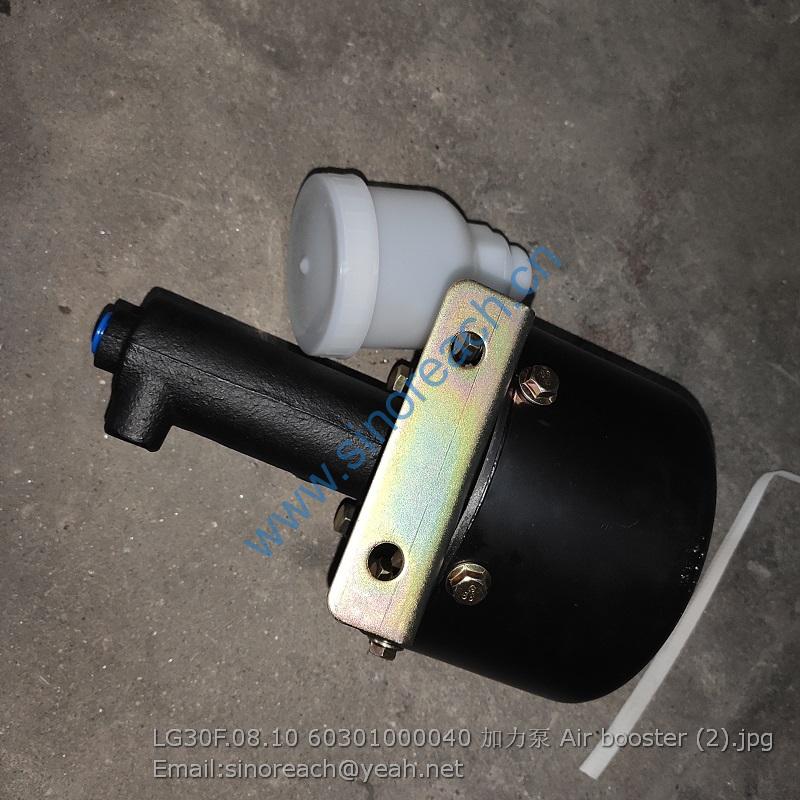

LG30F.08.10 60301000040 Air booster pump for LONKING spare part

1 GB7548 WATER PIPE Φ8×300 水管Φ8×300 1
2 20Y-06-15240 AUXILIARY RADIATOR ASSEMBLY 副水箱总成 1
3 CDM6210.17.16 AUXILIARY RADIATOR SUPPORT 副水箱支架 1
4 GB/T7548 WATER PIPER Φ8×1500 水管Φ8×1500 1
5 GB/T5783 BOLT M10×25 螺栓 M10×25 11
6 GB/T1230 WASHER 10 垫圈 10 27
7 CDM6210.17-14 CLAMP 卡箍 2
8 CDM6210.17.15 HOLDER 2 固定架 2 1
9 GB/T5783 BOLT M8×25 螺栓 M8×25 10
10 CDM6210.17.03 REAR SUPPORT LEFT 左后支架 1
11 Q/GHXF 23 FUEL PIPE Φ10/20×700 燃油管Φ10/20×700 1
12 CDM6210.17.01 REAR SUPPORT RIGHT 右后支架 1
13 GB/T97.1 WASHER 12 垫圈 12 2
14 GB/T5783 BOLT M12×25 螺栓 M12×25 2
15 CDM6210.17.11 CONNECTOR 连接管 1
16 GB/T6170 NUT M8 螺母 M8 8
17 GB/T97.1 WASHER 8 垫圈 8 15
18 CDM6210.17.09 MUFFLER SUPPORT 消声器支架 1
19 XH.G332X.W MUFFLER ASSEMBLY 消声器总成 1
20 CDM6210.17-01 MUFFLER CLAMP 消声器卡箍 2
21 LF3806 ENGINE OIL FILTER 机油过滤器 1
22 FS5052 FF9055 FUEL FILTER (SMALL) FF9055 燃油滤清(小) 1
23 FS1280 FF9055 FUEL FILTER (BIG) FF9055 燃油滤清器(大) 1
24 Q/GHXF 23 FUEL PIPE Φ10/20×2700 燃油管Φ10/20×2700 1
25 CF-H-110-01-T54 ELASTIC COUPLING 弹性联轴器 1
26 CDM6210.17.05-01 CONNECTIVE PLATE 连接板 1
27 GB/T5783 BOLT M10×30 螺栓 M10×30 12
28 G9H1222 CLAMP 12-22 卡箍 12-22 4
29 Q/GHXF23 FUEL PIPE Φ4.5/10.4×350 燃油管Φ4.5/10.4×350 1
30 SB100 SPRING CLAMP Φ10 弹簧卡箍Φ10 6
31 CDM6210.17-10 BRACKET – CABLE 软轴支架 1
32 CDM6210.17.19 Y-CONNECTOR 三通接头 1
33 GB/T7548 WATER PIPE Φ19×900 水管Φ19×900 1
34 GB/T5783 BOLT M12×40 螺栓 M12×40 1
35 CDM6210.17-13 BENT PLATE 折弯板 1
36 22587-1 STRAIGHT JOINT M10×1 直通接头 M10×1 1

1 GB/T5783 BOLT M10×25 螺栓 M10×25 2
2 GB/T97.1 WASHIER 10 垫圈 10 2
3 CDM6210.17.07-07 SEAL PLATE 密封板 1
4 CDM6210.17.07-04 GASKET 密封垫 1
5 CDM6210.17.07-03 GASKET 密封垫 1
6 GB/T5783 BOLT M12×70 螺栓 M12×70 4
7 GB/T97.1 WASHIER 12 垫圈 12 4
8 W043100000 RADIATOR 散热器 1
9 CDM6210.17.07-01 GASKET 密封垫 1
10 W0431 11001 WATER RADIATOR 水散 1
11 W0434 40001 OIL RADIATOR 油散 1
12 W0435 11001 INTERCOOLER 中冷器 1
13 CDM6210.17.07.02 BRACE ASSEMBLY 撑杆组件 1

1 JJ 1315 TRACK SHOE 履带 2
KU190B5 TRACK SHOE 履带 2
2 GB/T5783 BOLT M24×90 螺栓 M24×90 4
3 GB/T1230 WASHER 24 垫圈 24 4
4 ZJ0C-H6a IDLER CUSHION 涨紧装置 2
5 20Y-30-00030H FRONT IDLER 引导轮 2
R848 FRONT IDLER 引导轮 2
6 GB/1230 WASHER 16 垫圈 16 112
7 GB/5783 BOLT M16×50 螺栓 M16×50 8
8 CDM6200.08.04 TRACK BASE 履带底座 1
9 GB/T5783 BOLT M18×85 螺栓 M18×85 64
10 GB/T1230 WASHER 18 垫圈 18 80
11 LR1900 TRACK ROLLER 支重轮 16
R312 TRACK ROLLER 支重轮 16
12 CDM6210.08.02 BOTTOM SEAL PLATE 底封板 1
13 GB/T91 PIN Φ6.3×36 销Φ6.3×36 2
14 GB/882B PIN Φ25×55 销Φ25×55 2
15 GB/T5783 BOLT M12×35 螺栓 M12×35 10
16 GB/T97.1 WASHIER 12 垫圈 12 10
17 GB/T5783 BOLT 18×50 螺栓 18×50 8
18 CDM6210.08.01 CHAIN HOLDER 轨链导向架 4
19 LG200V/ROLLER(UR1900) CARRIER ROLLER 托带轮 4
R623A CARRIER ROLLER 托带轮 4
20 GB/5783 BOLT M16×50 螺栓 M16×50 104
21 SAHE200 190 DRIVE WHEEL 驱动轮 2
SB-SD-07-090314-2 DRIVE WHEEL 驱动轮 2
22 GM35VL-A-75/130-3 TRAVEL DRIVE 行走驱动 2
23 CDM6210.08-02 COVER PLATE 盖板 2
