Description

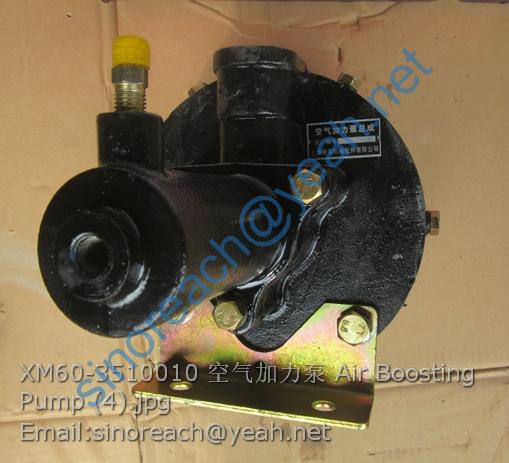

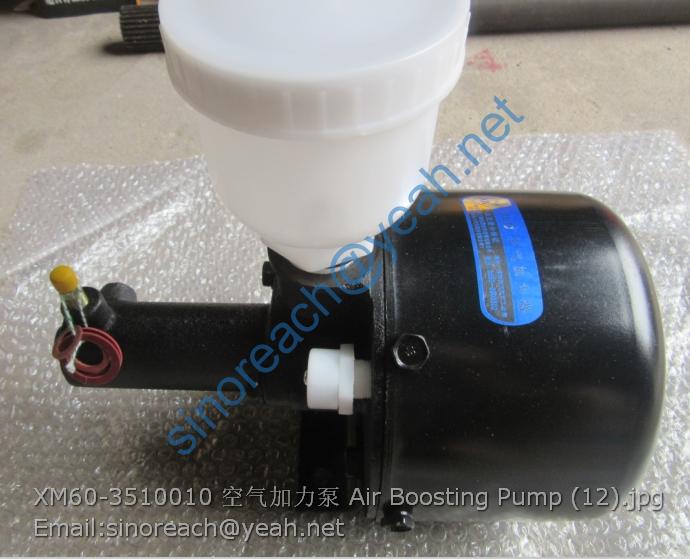

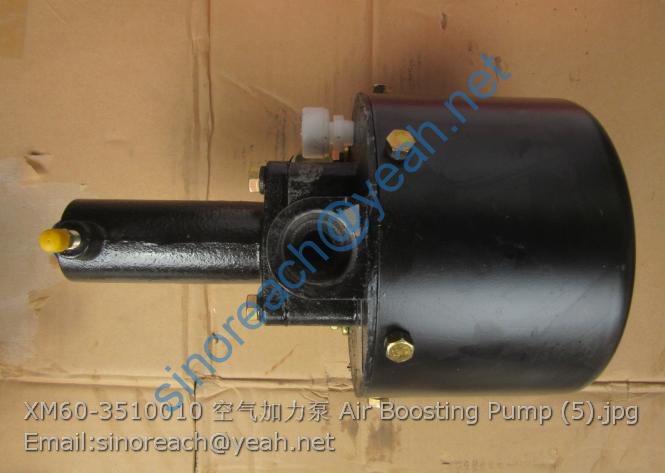

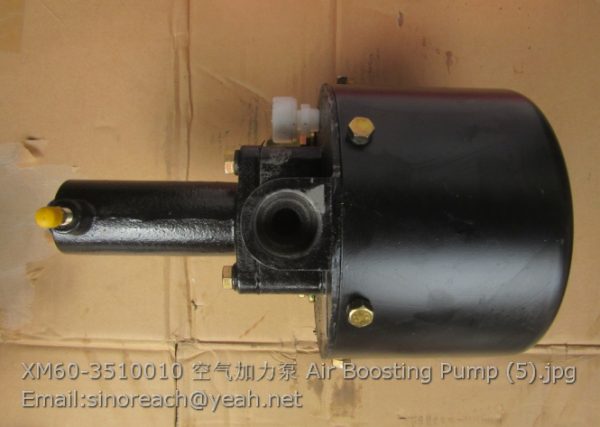

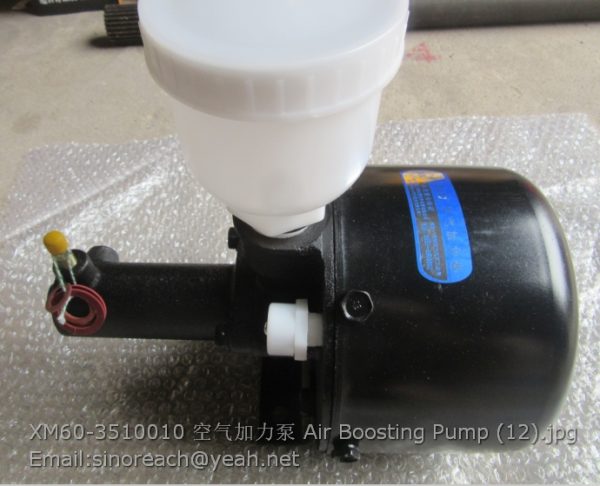

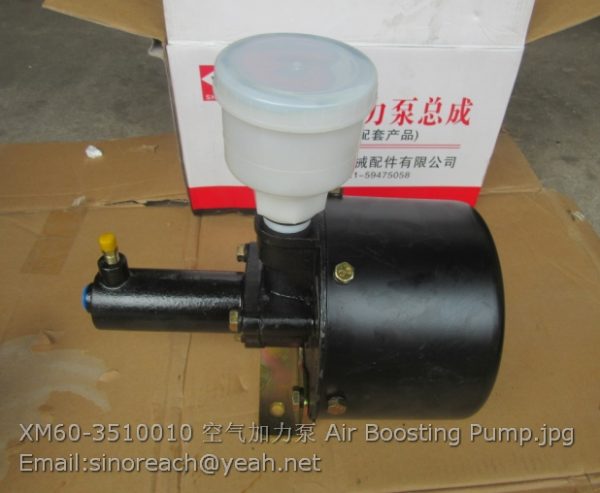

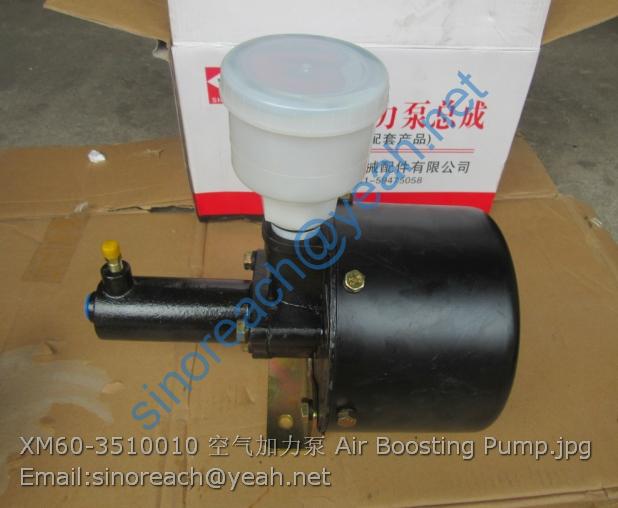

XM60-3510010 Air Boosting Pump for SHANTUI SLW50 spare part

DG956WⅠ-01006 测压胶管 manmetry hose
DG956WⅡ-01001 水箱垫 water tank pad
DG956WⅣ-01003A 发动机进水管 engine inlet pipe
DG956WⅣ-01004 发动机悬置软垫 engine shock pad
DG956WⅣ-01005 发动机前支座 engine front bracket
DG956WⅣ-01006 管接头 pipe joint
DG956WⅣ-01007 铰接螺栓 joint bolt
DG957-01200 燃油箱总成 fuel tank assy
DG956WⅣ-01009A 油门软轴 throttle flexible shaft
ZL50G2-01010 联结叉 connect fork
DG956WⅣ-01011 油门支架 throttle bracket
DG956WⅣ-01013A 发动机出水管 engine outlet pipe
DG956WⅣ-01014 联接管 connect pipe
DG956WⅣ-01015C 接头体 joint
DG956WⅣ-01017A 接头体 joint
DG956WⅣ-01018 铰接螺栓 joint bolt
DG956WⅣ-01019 放油管 outlet oil pipe

配件号码 配件名称 外文名称
DG957-01200 燃油箱总成 fuel tank assy
DG957-01201 燃油箱体 fuel oil tank
ZL50G2-06206B 橡胶垫 rubber pad
ZL50G2-06204D 法兰 flange
ZL50G2-01207 挡板 baffle
DG953-01205 盘 ring flange

配件号码 配件名称 外文名称
ZL50G2-B11100D 铲斗（标准） bucket(standard)
ZL50G2-C11100 铲斗（25m³） bucket
ZL50G2-11100MD 煤斗 coal bucket
ZL50G2-A11100YD 岩石斗 rock bucket
ZL50G2-11200A 连杆 connecting rod
ZL50JG2-11200 连杆（加长臂，长臂金刚用） connecting rod(for extend arm and long arm)
ZL50G2-11300D 摇臂 rocker arm
ZL50JG2-11300D 摇臂（加长臂，长臂金刚用） rocker arm(for extend arm and long arm)
ZL50G2-11400D 动臂 movable arm
ZL50JG2-11400D 动臂（加长臂用） movable arm(for extend arm)
DG956H-11400D 动臂（加长臂金刚用） movable arm(for long arm)
ZL50G2-11500D 轴总成 shaft assembly
ZL50G2-11000-1 调整垫片 adjusting gasket
ZL50G2-11000-2 防尘圈 scraper seal
ZL50G2-11000-3A 铲斗动臂衬套 bushing
ZL50G2-11600D 轴总成 shaft assembly
ZL50G2-11000-4 调整垫片 adjusting gasket
ZL50G2-11000-5B 铲斗拉杆销衬套 bushing
ZL50G2-11700D 轴总成 shaft assembly
ZL50G2-11800D 轴总成 shaft assembly
ZL50G2-11000-6 调整垫片 adjusting gasket
ZL50G2-11000-7B 摇臂主销衬套 bushing
ZL50G2-11900D 轴总成 shaft assembly
ZL50G2-11000-8 动臂中销衬套 bushing
ZL50G2-11000-9D 举升缸叉头 lifting cylinder clevis
ZL50G2-11000-10 动臂后销衬套 bushing
ZL50G2-11010D 轴总成 shaft assembly
ZL50G2-11000-12 调整垫 adjusting gasket
ZL50G2-11000-13 压板 press board
ZL50G2-11000-14 调整垫 adjusting gasket
DG953-11005 垫圈 washer
ZL50G2-A11125Y 调整垫 adjusting gasket
ZL50G2-A11126Y 压板 press board

配件号码 配件名称 外文名称
ZL50G2-11100-1A 中间斗齿 mid-bucket teeth
ZL50G2-B11100D 铲斗（标准） bucket(standard)
ZL50G2-C11100 铲斗（2.5m³） bucket
ZL50G2-11100-2A-R 角斗齿（右） corner bucket teeth(R)
ZL50G2-11100-2A-L 角斗齿（左） corner bucket teeth(L)
ZL50G2-11100-3 调整垫 adjusting gasket

配件号码 配件名称 外文名称
ZL50FⅢ(A)-09100A 前车架（配机械操纵） front frame(for mechanical control)
ZL50G2(A)-09100A 前车架（配先导操纵） front frame(for pilot control)
ZL50G2-09001A 小盖板 cover board
ZL50G2-09300D 翻斗缸后销轴总成 R/pin assy.,tipping cylinder
ZL50G2-09400D 动臂后销轴总成 R/pin assy.,movable arm
ZL50G2-09500D 举升缸后销轴总成 R/pin assy.,lifting cylinder
ZL50G2-09600 转向缸前销轴总成 F/pin assy.,steering cylinder
ZL50G2-09003 铰接螺栓 link bolt
ZL50G2-09700A 前转向润滑油管 lubricating pipe
ZL50FⅢ(A)-09004 调整垫 adjusting gasket
ZL50FⅢ(A)-09005 上铰接轴 upper link shaft
ZL50FⅢ(A)-09006 垫圈 washer
ZL50FⅢ(A)-09007 轴承盖 bearing cover
ZL50FⅢ(A)-09009 轴承座 bearing base
ZL50FⅢ(A)-09010 隔套 sleeve
ZL50FⅢ(A)-09011 压板 press board
ZL50G2-09007A 盘 pan
ZL50G2-09008 开槽螺母 slotted nut
ZL50G2-09900 下铰接轴总成 lower jointed shaft assy
ZL50G2-09009 下铰接轴承盖 lower jointed bearing cover
ZL50G2-09010 垫子 pad
ZL50FⅢ(A)-09016 垫圈 washer
ZL50FⅢ(A)-09017 调整垫 adjusting gasket
DG953-11005 垫圈 washer
DG930A-09005 丝座 Screw Seat
DG930A-09006 铰接螺栓 Joint Bolt

配件号码 配件名称 外文名称
DG956WⅡ-1009A 油管（配WG180变速箱） oil tube(for WG180 gearbox)
ZL50FⅢ(A)-10100 车架体 rear frame body
ZL50G2-10001D 配重铁 counterweight iron
ZL50G2-10002 牵引销 traction pin
ZL50G2-10300A 防护罩 protective hood
ZL50G2-10012 销轴 pin roll
ZL50G2-10400 副车架 auxiliary frame
ZL50G2-10500 转向缸轴 steering cylinder shaft
ZL50G2-10004 铰接螺栓 link bolt
ZL50G2-10600B 副车架轴 auxiliary frame shaft
ZL50G2-10005A 轴套 shaft bush
ZL50G2-10006 垫片 gasket
ZL50FⅢ-1008A 油管 oil tube
ZL50FⅢ-1009A 油管 oil tube
ZL50G2-10010 平垫 flat washer
ZL50FⅢ(A)-10011 锁止板 lock board
ZL50G3-10012 盖 cover
ZL50G2-10700 副车架轴 auxiliary frame shaft
ZL50G2-10013 垫圈 washer
ZL50FⅢ(A)-10015 缓冲垫 pad
DG930A-09005 丝座 Screw Seat
DG930A-09006 铰接螺栓 Joint Bolt
