Description

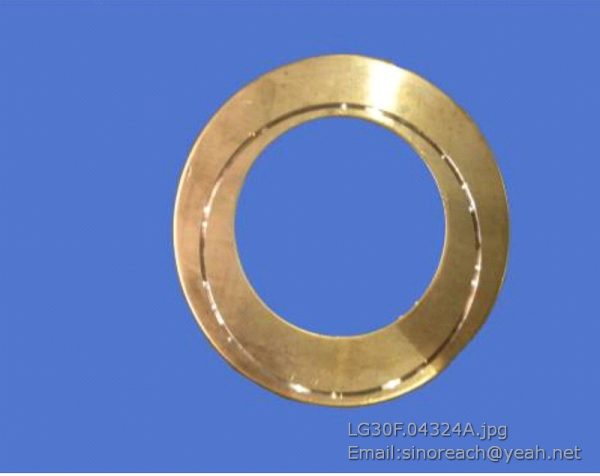

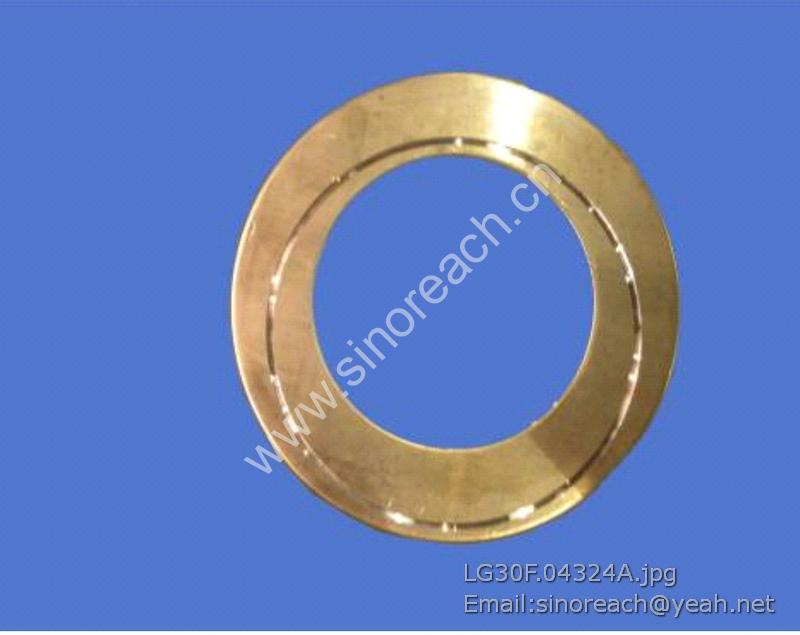

LG30F.04324A Axle shaft gear spacer for LONKING PART

1 37505100019 LGWL210-01 右链节接头 JOINT, TRACK LINK L.H. 1
2 37505100020 LGWL210-02 右链节接头 JOINT, TRACK LINK R.H. 1
3 37505100021 LGWL210-03 左链节 TRACK LINK L.H 48
4 37505100022 LGWL210-04 右链节 TRACK LINK R.H. 48
5 37505100060 LGWL210-05B 履带板 TRACK SHOE 49
6 37505100023 LGWL210-06 销轴 PIN SHAFT 48
7 37505100024 LGWL210-07 销套 BUSHING 48
8 60206000131 LGWL210-08 密封圈1 SEAL RING 1 96
9 37505100025 LGWL210-09 活销 MOVABLE PIN 1
10 60206000132 LGWL210-10 密封圈2 SEAL RING 2 2
11 37505100026 LGWL210-11 活销套 BUSHING, MOVABLE PIN 2
12 51512121801 GB91-86 开口销 COTTER PIN 1
13 60206000133 LGWL210-12 螺母 NUT 196
14 60206000134 LGWL210-13 螺栓 BOLT 196

1 17502305001 LGWL230 履带总成 TRACK ASS’Y 2 49 节
49 JOINTS
2 30613100204 LG6230.13-01 盖板 COVER BOARD 2
3 51204111122 GB/T5783 螺栓 M12×25 BOLT M12×25 12
4 51421110121 GB/T97.1 垫圈12 WASHER 12 12
5 51401110122 GB/T93 垫圈12 WASHER 12 12
6 30613100208 LG6230.13-04 橡胶垫 RUBBER PAD 1
7 30613100205 LG6230.13-03 黄油盖 GREASE COVERING 1
8 51401100122 GB/T93 垫圈10 WASHER 12 6
9 51204101022 GB/T5783 螺栓 M10×20 BOLT M10×20 6
10 16954176001 JXD176.00 行走装置 TRAVEL DEVICE 2
11 30613100206 LG6230.13-05 底封板 BOTTOM COVER PLATE 1
12 51421100121 GB/T97.1 垫圈10 WASHER 10 4
13 30613000234 LG6225L.13.01 行走架总成 TRACK FRAME 1
14 30613000181 LG6230.13.02 护链架 CHAIN HOLDER 4
15 51204133722 GB/T5783 螺栓 M16×40 BOLT M16×40 8
16 51401130122 GB/T93 弹簧垫圈16 SPRING WASHER 16 36
17 17502302001 LGWZ230 支重轮 TRACK ROLLER 18
18 51203132421 GB/T5782 螺栓 M16×90 BOLT M16×90 72
19 17502303001 LGWY230 引导轮 FRONT IDLER 2
20 60303000189 ZJOC-H6LK-00 涨紧油缸 IDLER CUSHION 2
21 17502304001 LGWT230 托链轮 CARRIER ROLLER 4
22 51204132522 GB/T5783 螺栓 M16×35 BOLT M16×35 20
23 30613100209 LG6230.13-06 橡胶圈 RUBBER PAD 1
24 30613100207 LG6230.13-02 橡胶套 RUBBER SLEEVE 2
25 51427130122 GB/T1230 垫圈 16 WASHER 16 72
26 17502301001 LGWQ230 驱动轮 DRIVE WHEEL 2

1 30612100629 LG6230.12-17 橡胶圈6 RUBBER GASKET 6 1
2 30612100628 LG6230.12-16 橡胶圈5 RUBBER GASKET 5 1
3 51204132522 GB/T5783 螺栓 M16×35 BOLTM16×35 6
4 51401130122 GB/T93 垫圈16 W ASHER16 6
5 30612100397 LG6230.12-01 一型锁板 LOCK PLATE 1
6 30612000144 LG6230.12.02 销轴Φ90 PIN φ90 1
7 30615100171 LG6230.15-03 调整垫圈 W ASHER 2
8 30612101185 LG6225L.12-04 护套 RUBBER GASKET 2
9 30612101184 LG6225L.12-03 垫板 SHIM PLATE 2
10 30612000143 LG6230.12.04 销轴Φ80 PIN φ80 2
11 30615100618 LG6230.15-05 调整垫圈 ADJUST SHIM 4
12 30612100402 LG6230.12-22 盖板 COVER BOARD 1
13 51421100121 GB/T97.1 垫圈10 W ASHER10 2
14 51401100122 GB/T93 垫圈10 W ASHER10 2
15 51204101222 GB/T5783 螺栓 M10×30 BOLTM10×30 2
16 30612100399 LG6230.12-19 Y 型锁板 Y LOCK PLATE 1
17 51421130121 GB/T97.1 垫圈16 WASHER 16 2
18 30612100400 LG6230.12-20 限位块 STOP BLOCK 1
19 30612100626 LG6230.12-13 橡胶圈3 RUBBER GASKET 3 1
20 30612100398 LG6230.12-07 压线板 PRESS PLATE 1
21 30612100623 LG6230.12-08 垫片 W ASHER 1
22 51204091022 GB/T5783 螺栓 M8×20 BOLTM8×20 2
23 30612005007 LG6235.12-04 橡胶圈 RUBBER GASKET 2
24 30612100625 LG6230.12-12 橡胶圈2 RUBBER GASKET 2 1
25 30612100627 LG6230.12-14 橡胶圈4 RUBBER GASKET 4 4
26 30616100318 LG6360.16-05 堵头 PLUG 1
27 30612000421 LG6235E.12.01 平台焊合 PLATFORMWELDING 1
