Description

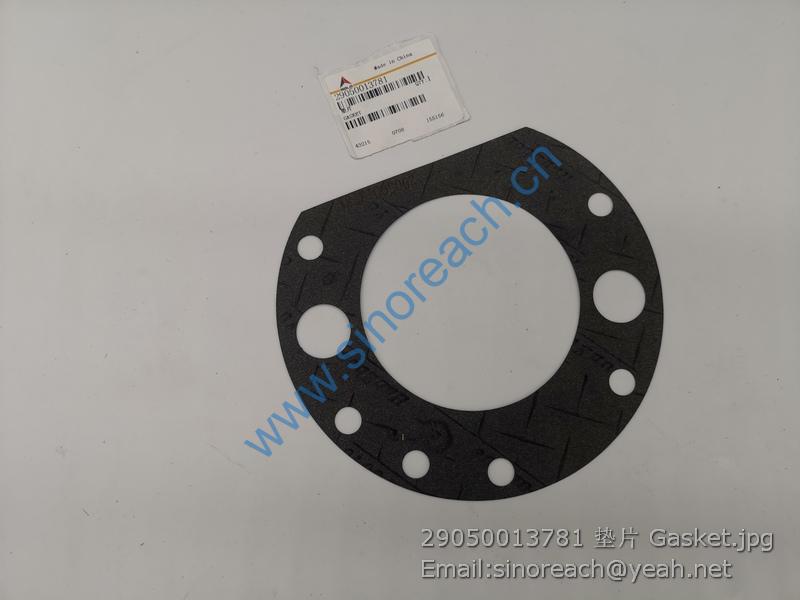

29050013781 Gasket

1 4041000577 直接头LGB120-03633 Nipple Y 2
2 4030000815 O形圈LGB168-22631 O-ring Y 2
3 29050012942 变速箱体 Transmission house Y 1
4 4030000060 垫圈JB1002-22-T2 Washer Y 1
5 29050013161 油嘴 Nipple Y 1
6 29050013001 胶管 Hose assembly Y 1
7 4030000809 O形圈GB3452.1-12.5*1.80G-FPM O-ring Y 5
8 29050013231 离合器KFR Clutch Y 1
9 4030000816 O形圈GB3452.1-23.6*3.55G-FPM O-ring Y 1
10 4030000810 O形圈GB3452.1-11.8*1.80G-FPM O-ring Y 4
11 29050012951 油管接头 Nipple Y 1
12 29050014541 后退挡过渡齿轮总成 Gear Y 1
13 29050013721 垫片 Gasket Y 1
14 29050016691 变速阀总成 Gear selector valve Y 1
15 4041001270 O形圈LGB168-21724 O-ring Y 2
16 29050013701 接头 Nipple Y 2
17 29050013071 F/R胶管总成 Hose assembly Y 2
18 4011000722 螺栓GB5783-M6*10-8.8 Screw Y 8
19 29050015461 垫圈6 Washer Y 8
20 29050015672 滤油器总成 Oil filter Y 1
21 29050013331 密封垫 Gasket Y 1
22 29050018622 油底壳 Sump Y 1
23 29050015471 垫圈8 Washer Y 8
24 4011000107 螺栓GB5783-M8*30EpZn-8.8 Bolt Y 8
25 29050013351 放油螺塞 Plug Y 1
26 4041001264 O形圈LGB168-22331 O-ring Y 3
27 4041001272 直接头LGB120-03628 Nipple Y 1
28 4030000504 O形圈GB3452.1-25.8*1.80G O-ring Y 2
29 29050013141 接头体 Nipple Y 1
30 29050013171 油管总成 Hose assembly Y 1

31 29050013381 离合器K34 Clutch Y 1
32 29050013441 离合器K12 Clutch Y 1
33 4011000934 螺栓GB5783-M8*12-8.8 Screw Y 2
34 4015000297 垫圈LGB001-8 Washer Y 2
35 29050014491 中间轴总成 Drive shaft N 1

1 4041001264 O形圈LGB168-22331 O-ring Y 1
2 4041001057 螺塞LGB135-02732 Plug Y 1
3 29050016291 输出轴总成 Output shaft N 1
4 29050015911 分动箱壳体 Drop box housing Y 1
5 29050015841 1/2档总成 Gear changing unit Y 1
6 29050017161 连接座 Attachment bracket Y 2
7 4015000098 垫圈GB93-16-65Mn Spring washer Y 8
8 4011000205 螺栓GB5783-M16*45EpZn-8.8 Bolt Y 8
9 29050016271 3/4档总成 Gear changing unit Y 1
10 29050016281 中间轴总成 Drive shaft N 1
11 4030000090 O形圈GB3452.1-28.0*2.65G O-ring Y 1
12 4041000140 直接头LGB155-02730 Nipple Y 1
13 29050016301 手制动总成 Parking brake N 1
14 29050015851 密封垫 Gasket Y 1
15 29050015871 油标尺 Oil dipstick Y 1
16 4030000661 O形圈GB3452.1-5.60*2.65G O-ring Y 1
17 29050015861 油标尺座 Pipe retainer Y 1
18 4011000101 螺栓GB5783-M6*20EpZn-8.8 Bolt Y 4
19 29050015461 垫圈6 Washer Y 4
20 4041000508 螺塞LGB135-01824 Plug Y 1
21 4030000058 垫圈JB1002-18-T2 Washer Y 1

1 29050014872 取力器壳 Gear housing Y 1
2 4021000156 轴承6014 Bearing Y 2
3 29050014881 齿轮 Gear Y 1
4 29050014891 轴 Shaft Y 1
5 29050014831 盖塞 Cap plug Y 1
6 4030000807 O形圈GB3452.1-109*3.55G-FPM O-ring Y 1
7 29050014841 喷嘴 Jet Y 1
8 4030000056 垫圈JB1002-12-T2 Washer Y 1
9 29050014861 盖 Cover Y 1
10 29050013611 垫片 Shim Y 4
11 4011000082 螺栓GB5783-M10*25EpZn-8.8 Bolt Y 4
