Description

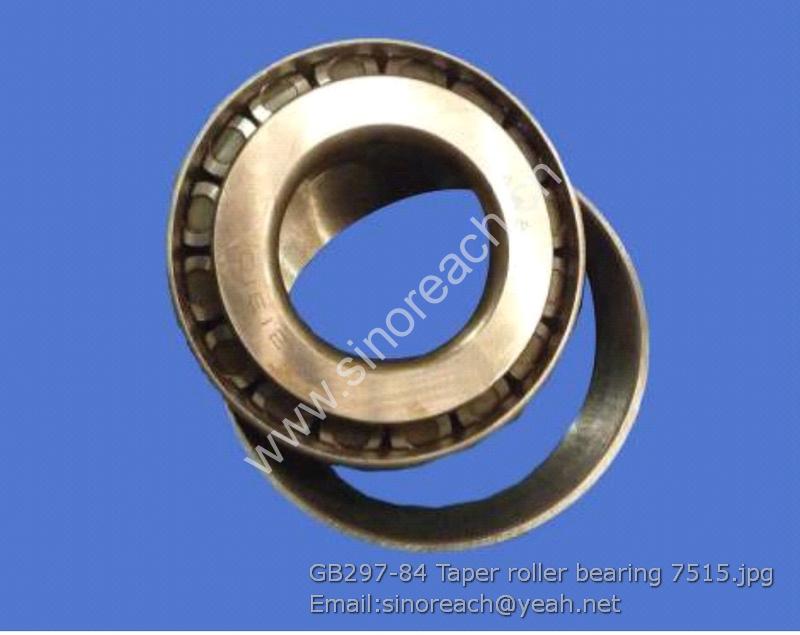

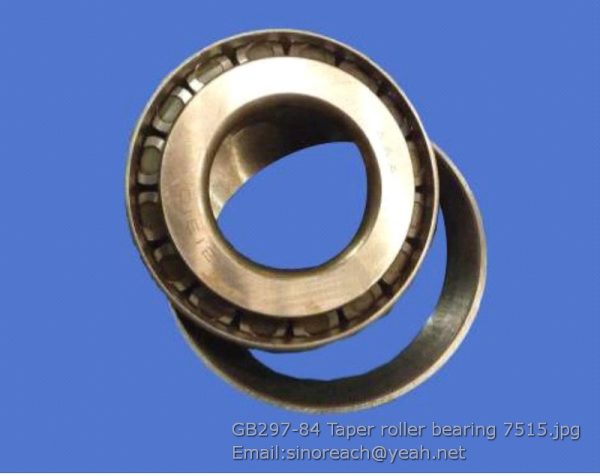

GB297-84 Taper roller bearing 7515 GB/T297-1994 for lonking part

402203 罩轮 Housing wheel 1
402236 O型密封圈 O-ring 1
GB/T276 轴承210（90×50×20） Bearing 210(90×50×20) 1
402207 一级涡轮罩 First stage turbine hood 1
402206 一级涡轮壳 First stage turbine housing 1
GB/T869 沉头铆钉 Rivet 12
GB/T276 轴承113（100×65×18） Bearing 113(100×65×18) 1
GB/T893.1 孔用挡圈 50 Hole ring 50 1
402212-13 二级涡轮 Second stage turbine 1
402209 一级涡轮 First stage turbine 1
GB/T894.1 轴用挡圈 80 Shaft retainer 80 1
402217 导轮 Idler wheel 1
402226 压板 Press plate 1
GB/T5780 螺栓 M12×45 Bolt M12×45 12
402229 弹簧 Spring 1 LG853.02.01-007
402204 回油接头 Oil return connector 1 LG853.02.01-014
402232 垫片 Pad 2
402231A 弹簧 Spring 1 LG853.02.01-010
402230A 盖板 Cover board 1 LG853.02.01-009
402233 进口阀杆 Inlet valve stem 2 LG853.02.01-008
402228A 阀盖 Valve cap 1 LG853.02.01-006
GB/T5780 螺栓 M10×28 Bolt M10×28 8
402111A 接头 Connector 2 LG853.02.01-005
402106 铜垫圈 Copper washer 2 LG853.02.01-004
402238 花键垫片 Spline washer 1
402234 出口阀芯 Outlet spool 1 LG853.02.01-015

GB/T93 垫圈18 Washer 18 4
GB/T6170 螺母M18 Nut M18 2
403035 弧形垫圈 Camber washer 2 LG853.03-001
403031 橡胶垫 Rubber pad 2 LG853.03-002
GB/T5782 螺栓 M18×140 Bolt M18×140 2
LG50EX.03.01 变速箱总成 Transmission assembly 1
GB/T5783 螺栓 M8×16 Bolt M8×16 2
GB/T97.1 垫圈 8 Washer 8 2
GB/T93 垫圈 8 Washer 8 2
