Description

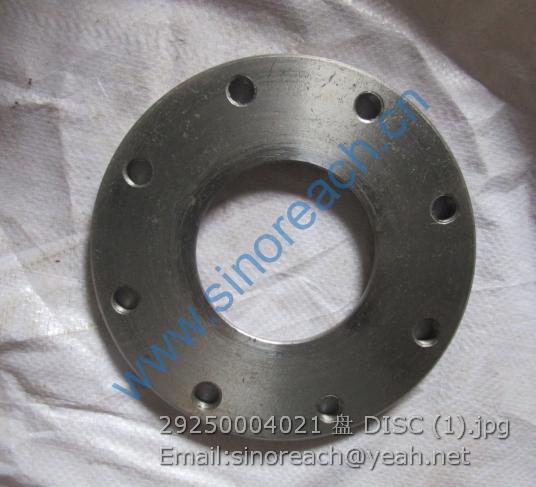

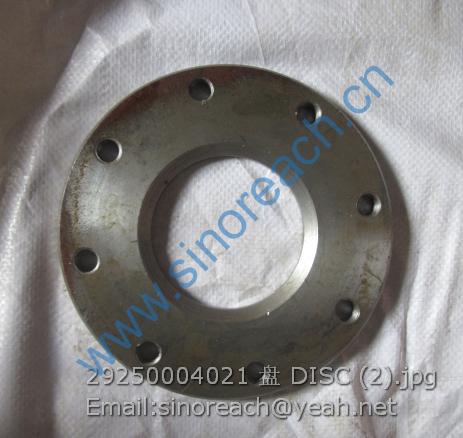

Flange Plate of SDLG LG936 29250004021

1 4016000043 开口销GB91-8*80EpZn-Q235A Split pin Y 1
2 29250008711 开槽螺母 Nut Y 1
3 29250015711 下铰接销 Pin Y 1
4 29250011291 套 Sleeve Y 1
5 29250011261 盘 Flange Y 1
6 29250011281 套 Sleeve Y 1
7 29250011761 间隔套 Sleeve Y 1
8 4021000134 滚动轴承GB297-32212 Roller bearing Y 2
9 4043002527 开口垫片LGB338-4*13*115*0.5 Shim Y 2
10 4043002526 开口垫片LGB338-4*13*115*0.2 Shim Y 2
11 4043002525 开口垫片LGB338-4*13*115*0.1 Shim Y 2
12 29250011301 盘 Flange Y 1
13 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 10
14 4015000026 垫圈GB93-12-65Mn Spring washer Y 16
15 4011001122 螺栓GB5782-M12*85EpZn-8.8 Screw Y 8
16 4043000055 防尘圈LGB307-80 Sealing ring Y 2
17 29250011271 套 Sleeve Y 1
18 29270009421 塑料塞 Plastic plug Y 1
19 4040000050 垫圈LGB001-12flZnyc-480 Washer Y 6
20 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 10
21 29250004041 上铰接销 Pin Y 1
22 4021000042 关节轴承GB9163-GE60ES-2RS Spherical plain bearing Y 1
23 29250004011 盘 Flange Y 1
24 29250004021 盘 Flange Y 1
25 4011000186 螺栓GB5782-M12*55EpZn-8.8 Bolt Y 8
26 4043000205 销轴LGB301-60*125*235G-40Cr Weld pin Y 2
27 4011001240 螺栓GB16674-M12*25flZnyc-8.8-480 Screw Y 8
28 4043001362 护套LGB313-20*32 Rubber sleeve Y 5
29 29250012661 照灯护板 Protecting plate Y 2
30 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 18

31 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 18
32 29250011021 照灯网板 Protecting plate Y 2
33 4043002131 销轴LGB301-65*125N*235-1000G Weld pin Y 2
34 29250014541 动臂后端润滑油管-左 Lubricating pipe Y 1
35 29250000291 通油螺栓 Bolt Y 7
36 29250000301 垫片 Shim Y 21
37 29250023891 护板总成 Cover plate Y 1
38 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 4
39 4043000151 垫片LGB303-60*120*1 Shim Y 2
40 4043002132 销轴LGB301-60*90NR*165-1000G Weld pin Y 1
41 29250019721 转向销轴 Weld pin Y 2
42 29250020011 护板总成 Cover plate Y 1
43 29250012821 衬板 Plate Y 2
44 29250012981 右前挡泥瓦 Front fender Y 1
45 29250013001 橡胶板 Rubber cushion Y 2
46 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 8
47 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 8
48 29250012941 右灯架 Lamp bracket Y 1
49 4043000197 垫片LGB303-65*140*1 Shim Y 2
50 4043000198 垫片LGB303-65*140*2 Shim Y 2
51 29250014462 转向缸油管 Lubricating pipe Y 2
52 29250014551 动臂后端油管总成-右 Lubricating pipe Y 1
53 29250014121 接头 Nipple Y 7
54 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 9
55 29250014591 上铰接销润滑油管 Lubricating pipe Y 1
56 29250014601 下铰接油管 Lubricating pipe Y 1
57 4190002437 减震器 Rubber damper Y 2
58 4011001381 螺栓GB16674.1-M10*35flZnyc-8.8-480 Screw Y 2
59 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 2
60 29250019701 转斗润滑油管 Lubricating pipe Y 1

61 29250013741 压板 Plate Y 2
62 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 1
63 29250012931 左灯架 Lamp bracket Y 1
64 29250012971 左前挡泥瓦 Front fender Y 1
65 29330059111 垫圈12 Washer Y 6
66 4011001250 螺栓GB5783-M12*30flZnyc-8.8-480 Screw Y 8

1 29250000291 通油螺栓 Bolt Y 2
2 29250000301 垫片 Shim Y 6
3 29270009321 调整垫片 Shim Y 2
4 29270009311 调整垫片 Shim Y 2
5 29270001071 调整垫片 Shim Y 2
6 29270001051 调整垫片 Shim Y 2
7 29270001061 调整垫片 Shim Y 2
8 29270007831 套 Bushing Y 2
9 29270016001 焊接销轴 Pin Y 2
10 29270009101 走线胶套 Rubber sleeve Y 2
11 29270027851 副车架 Rear axle bridge Y 1
12 29270026781 左盖板 Cover plate N 1
13 4043000839 护套LGB313-14*50 Rubber sleeve Y 1
14 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 22
15 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 26
16 29270000081 卡环 Lock ring Y 2
17 29270013881 锁定销轴 Pin Y 2
18 29270013891 锁定杆 Lock lever Y 1
19 29280010021 挂钩 Tensioning hook Y 1
20 29270025921 右盖板 Cover plate N 1
21 4040000001 垫圈LGB001-12 Washer Y 2
22 4011000087 螺栓GB5783-M12*20EpZn-8.8 Screw Y 2
23 29270021761 压板 Plate Y 1
24 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 2
25 4011001250 螺栓GB5783-M12*30flZnyc-8.8-480 Screw Y 2
26 29270018131 后转向销轴 Pin Y 2
27 4043000064 垫片LGB303-40*70*1 Shim Y 4
28 4043000325 垫片LGB303-40*70*2 Shim Y 4
29 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 4
30 29250014121 接头 Nipple Y 2

31 29270018101 后输油管 Lubricating pipe Y 1
32 29270017321 前输油管 Lubricating pipe Y 1
33 29270021421 护板总成 Protecting plate Y 1
34 4011000197 螺栓GB5783-M12*25EpZn-8.8 Bolt Y 6
35 4015000186 垫圈GB96.1-12EpZn-300HV Washer Y 6
36 29270021431 盖板总成 Cover plate Y 2
37 29270021411 护板总成 Protecting plate Y 1
