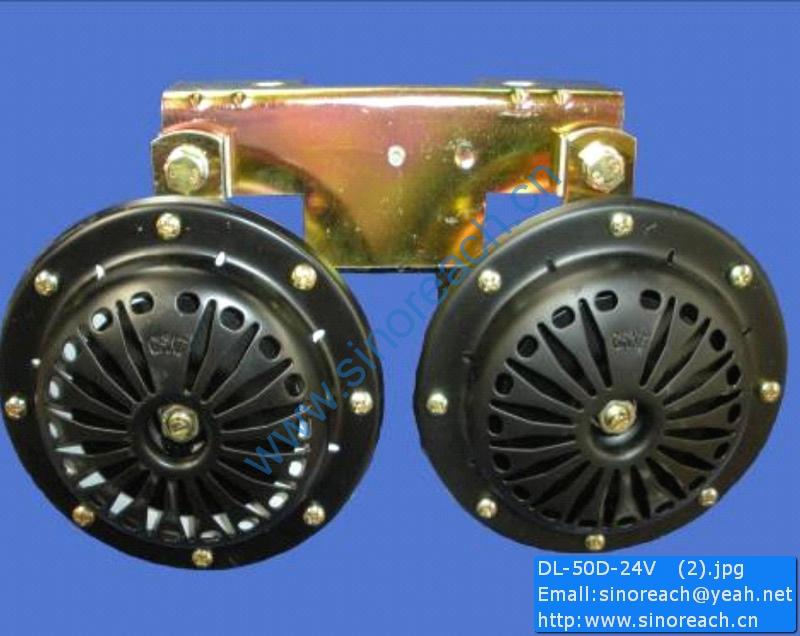

DL-50D-24V LG853.15.09 60401050020 Electric horn assembly for CDM833 CDM835 CDM843 CDM853 CDM855 CDM855E CDM856 CDM858 parts
1 GB1152-89 油杯 M10X1 Oil cup M10X1 1
2 GB893.1-86 挡圈75 Retaining Ring 75 2
3 GB/T9163-2001 关节轴承 GE50ES Bear GE50ES 1
4 G33639A-90/45-01 缸体 Cylinder Body 1
5 GB/T79-2000 紧固螺钉 M6X8 Screw M6X8 1
6 CY156.8-2005 螺母M36X2 Nut M36X2 1
7 G33639A-90/45-02 活塞 Piston 1
8 CY166-1994 支承环 ZD90B Supporting Ring ZD90B 2
9 CY143-2004 矩形封 UF-0090 Rectangle Seal UF-0090 1
10 CY155-2002 挡圈D50X3.1X1.5 Retaining Ring D50X3.1X1.5 2
11 GB1235-76 O形圈50X3.1 O-Ring 50X3.1 1
12 G33639A-90/45-03 活塞杆 Piston Rod 1
13 G33639A-90/45-04 导向套 Guide Sleeve 1
14 CY155-2002 挡圈D90X3.1X1.5 Retaining Ring D90X3.1X1.5 1
15 GB1235-76 O形圈 90X3.1 O-Ring 90X3.1 1
16 CY129-1997 防尘圈CK-45 Dustproof Ring CK-45 1
17 CY155-2002 挡圈45 Retaining Ring 45 1
18 CY126-1997 密封圈g-45 Seal ring g-45 1
19 CY164-2002 导向环TD45B Guide Sleeve TD45B 3
20 GB1235-76 O形圈 55X3.5 O-Ring 55X3.5 1
21 CY127-1997 滑环 S-90 Slide Ring S-90 1
1 GB5782-86 螺栓M12×65 Bolt M12×65 12
2 WZ30-25.12-7 轴承盖 Pressing Cover 2
3 WZ30-25.12-6 毡圈油封 Dustproof Ring 2
4 GB304.5-81 关节轴承GE45ES Bearing GE45ES 2
5 GB93-87 垫圈12 Washer 12 16
6 GB6170-86 螺母M12 Nut M12 12
7 GB5783-86 螺栓M20×45 Bolt M20×45 8
8 GB93-87 垫圈20 Washer 20 20
9 WZ30-25.12.8 变速箱地脚 Transmission Gearing Seat 各1
10 WZ30-25.12-1 胶板 Cushion 2
11 WZ30-25.12-10 轴承盖 Pressing Cover 2
12 WZ30-25.12-9 毡圈油封 Dustproof Ring 2
13 WZ30-25.12-8 套筒 Shaft sleeve 1
14 WZ30-25.12.14 挡板销轴 Shaft End Retaining Plate 2
15 GB93-87 垫圈10 Washer 10 8
16 GB5783-86 螺栓M10×25 Bolt M10×25 8
17 GB6171-86 螺母M20×2 Nut M20×2 16
18 GB5783-86 螺栓M16×35 M16×35 2
19 GB93-87 垫圈16 Washer 16 2
20 WZ30-25.12-17 端盖 Pressing Cover 2
21 WZ30-25.12-24 动臂缸销轴 Shaft 2
22 WZ30-25.12-15 轴端挡板 Shaft End Retaining Plate 4
23 GB95-85 垫圈12 Washer 12 4
24 GB5783-86 螺栓M12×25 Bolt M12×25 4
25 GB5783-86 螺栓M20×55 Bolt M20×55 4
26 GB95-85 垫圈10 Washer 10 4
27 WZ30-25.12-18 盖板 Cover 1
28 WZ30-25.12-16 动臂销轴 Shaft 2
29 WZ30-25.12-14 调整垫 Adjusting Sleeve 2
30 GB1152-89 油杯 Oil Cup M10×1 4
31 WZ30-25.12.1 前机架 Front Frame 1
32 GB5785-86 螺栓M20×100 Bolt M20×100 8
