Description

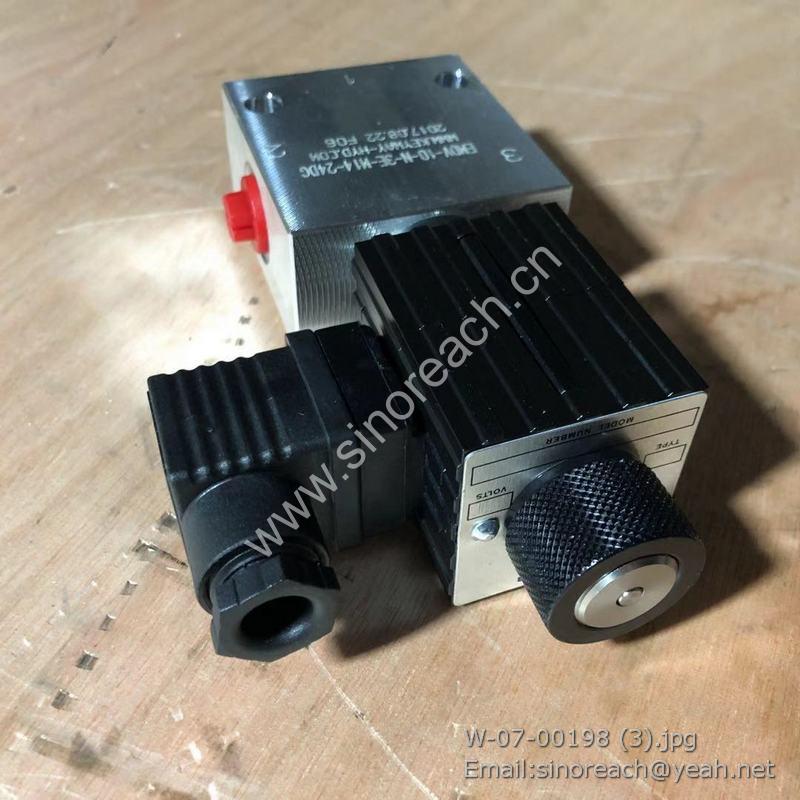

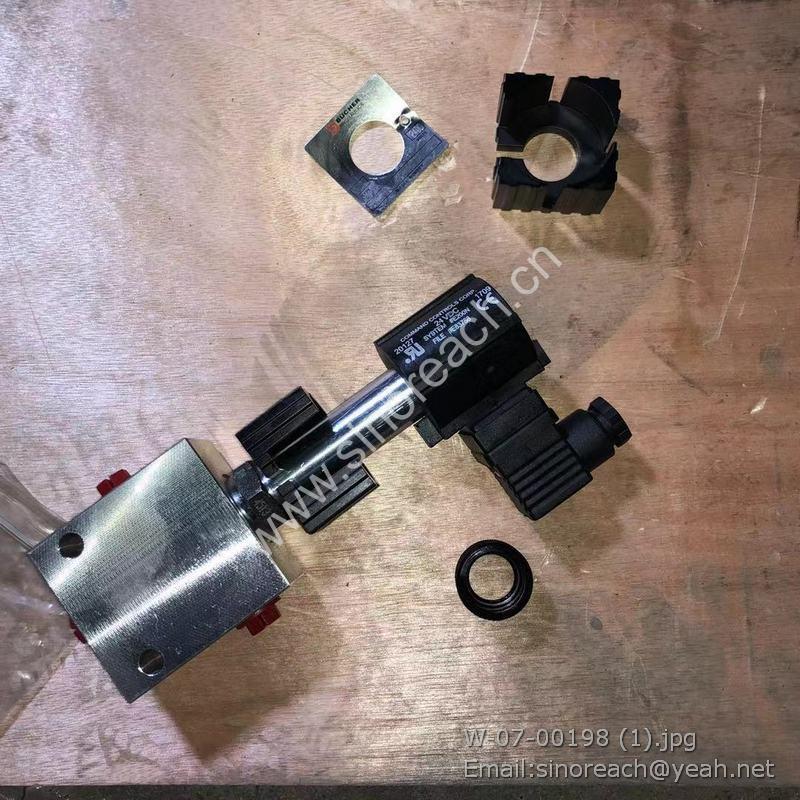

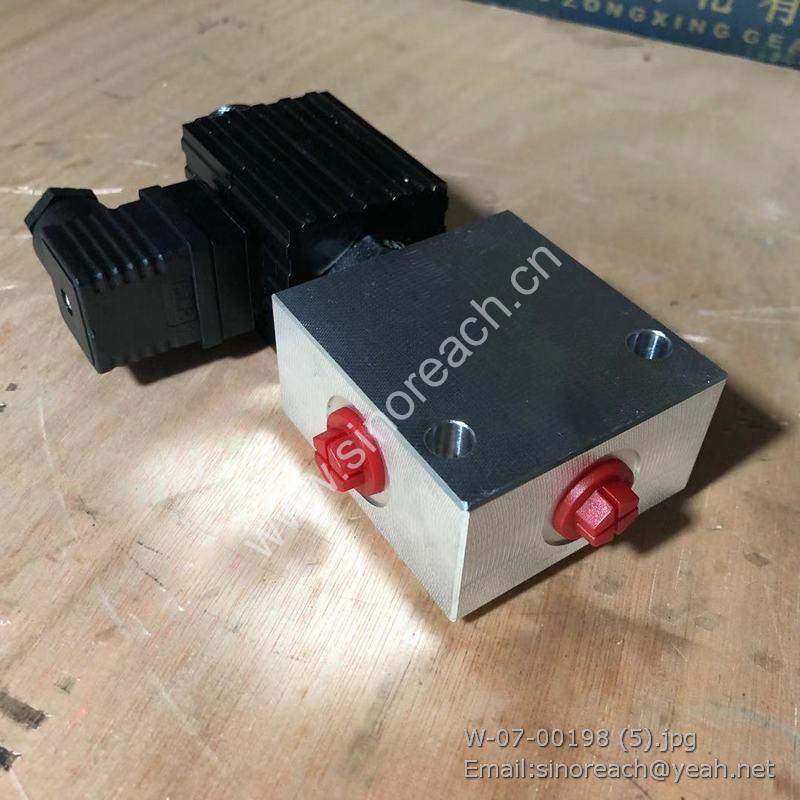

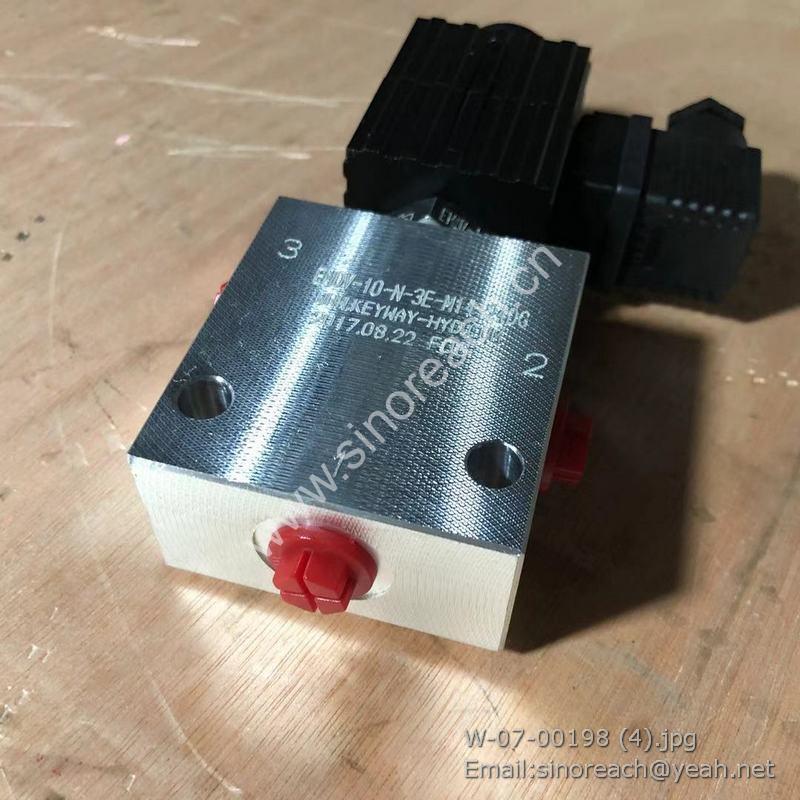

CHANGLIN  EMDV-10-N-3E-M14-24DG Magnetic Valve W-07-00198 for  Motor Grader Parts

Z50B.6-7A 盖板 Cover
Z50B.6-6 密封垫 Washer
B-G003080-00001 钢球10.000-G100-b Ball
Z50B.6-14 行星齿轮轴 Planet gear shaft
956.6A-1 行星轮架 Planet carrier
Z50B.6-17 密封垫 Washer
Z50B.6-13A 垫片 Spacer
Z50B.6C-12 行星齿轮 Planet gear
B-G003090-00004 滚针5×23.8 G3 -3、-6 Needle roller
Z50B.6-11 调整垫 Adjust washer
Z50B.6-10A 半轴定位堵 Locator
B-G001190-00015 销A5×25 Pin
Z50B.6-4 圆螺母 Nut
Z50B.6C-8 太阳轮半轴 Half-shaft
B-G057830-00034 螺栓M12×30 ZnD Bolt
B-G000930-00003 垫圈12 Spring washer
B-J010000-00011 螺塞M27×2 Plug
Z50B.6-16 轮辋螺母 Rim nut
W-10-00026 车轮组合螺母 Rim nut
B-J009820-00008 垫圈27 Washer
Z50B.6-15B 轮辋螺栓 Rim bolt
Z50B.6-15C 轮辋螺栓 Rim bolt
B-G000700-00002 螺钉M10×20 Screw
B-G000930-00001 垫圈10 Spring washer
Z50B.6C-2 内齿圈 Internal gear
B-G002970-00024 轴承32221 Bearing
Z50E.6E-4A 轮毂 Wheel hub
B-G001190-00053 销A16×35 Pin
B-G002970-00017 轴承32024 Bearing
Z50E.6E-3 滚针隔套 Bush

Z50B.6.1-3 托架 Bracket
Z50B.6.1.2 止推螺栓 Bolt
Z50B.6.1-4 锁紧垫片 Lock blade
B-G061730-00014 螺母M27×2 Nut
Z50B.6.1-5 差速器螺母 Nut
B-G002970-00021 轴承32216 Bearing
Z50B.6.1-14 瓦盖 Cover
Z50B.6.1-6 锁紧片 Lock spacer
B-G008550-00001 垫圈10 Washer
B-G057860-00001 螺栓M10×1×20 Bolt
B-G008550-00003 垫圈22 Washer
B-G057820-00239 螺栓M22×85 Bolt

B-G057850-00015 螺栓M14×1. 5×55-10.9 ZnD Bolt
B-G000930-00005 垫圈14 Spring washer
Z50B.6.1-1 锁紧螺母 Retaining nut
Z50B.6.1-2 垫圈 Washer
B-G057850-00007 螺栓M12×1. 5×55-10.9 ZnD Bolt
B-G000930-00003 垫圈12 Spring washer
Z50B.6.1-24 端盖 Cover
Z50B.6.1.1A 输入法兰组件 Flange ass’y
B-G09877A-00036 油封FB80×100×12B Oil seal
B-G09877A-00072 油封FB80×100×12 Oil seal
Z50B.6.1-23 密封垫 Gasket
Z50B.6.1-21 调整垫片 Adjust washer
B-G002970-00010 轴承31313 Bearing
Z50B.6.1-22 轴承座 Bearing seat
Z50B.6.1-25 调整垫片 Adjust washer
Z50B.6.1-20 轴承隔套 Bearing sleeve
Z50B.6.1-18A 主动螺旋齿轮（前桥） Pinion gear（R）
Z50B.8.1-2A 主动螺旋齿轮（后桥） Pinion gear（L）
B-G002970-00011 轴承31314 Bearing
B-G002830-00004 轴承NUP2307E Bearing
