Description

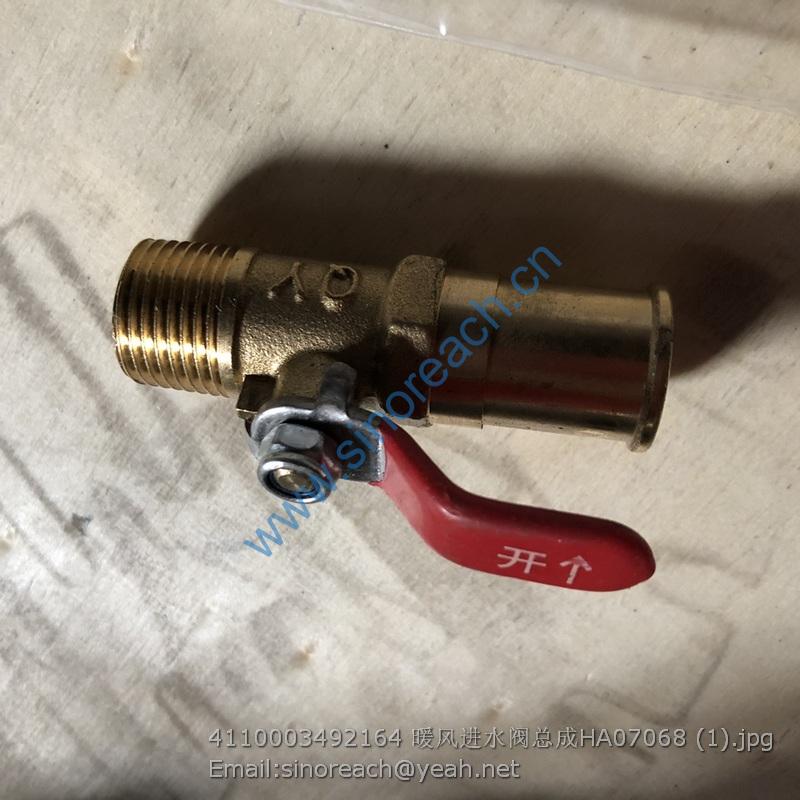

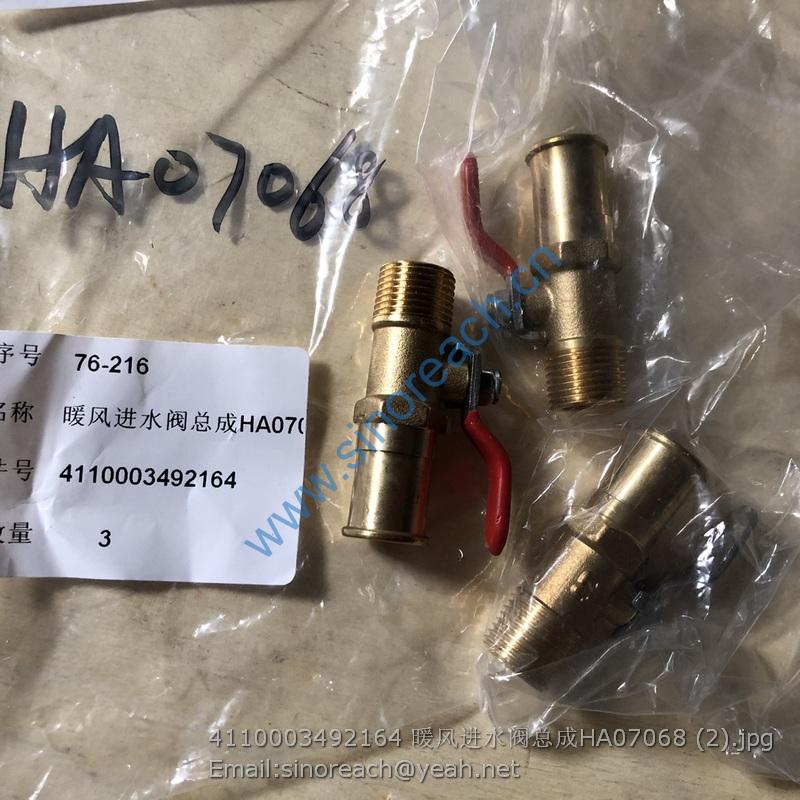

4110003492164 HA07068 Water valve

1 4120001739080 内钳体FY10754M.00001 Pliers N 1
2 4120001739081 活塞FY10754B.00004 Piston Y 4
3 4120001739082 矩形密封圈FY10754B.00007 Gasket Y 4
4 4120001739096 防尘罩FY50.05 Sealing ring Y 4
5 4120001739084 外钳体FY10754M.00002 Brake caliper N 1
6 4120001739085 O型圈19.5X3.5 O-ring Y 2
7 4120001739086 螺栓M22X110 Screw Y 4
8 4015000087 垫圈GB93-22-65Mn Spring washer Y 4
9 4120001739087 组合垫圈14 Washer Y 2
10 4120001739088 放气嘴座FY10754M.00003 Support N 2
11 4120001740 放气嘴 Nipple Y 2
12 4120001739089 制动片FY10754B.01000 Brake plate N 2
13 4120001739090 销子FY10754M.00006 Pin Y 2
14 4120001739091 开口销GB91-3.2*25EpZn-Q235A Split pin Y 2
15 4120001739092 放气座堵塞FY10754M.00008 Plug N 2
16 4120001739093 堵塞FY10754M.00007 Plug N 1

4011001363 螺栓GB5786-M14*1.5*40flZnyc-10.9-480 Bolt Y 4
2 4015000435 垫圈GB97.1-14flZnyc-300HV-480 Washer Y 4
3 29080010411 L956F传动轴总成 Propeller shaft N 1
4 4011001398 螺栓GB5785-M14*1.5*55flZnyc-10.9-480 Screw Y 8
5 4013000399 螺母GB889.2-M14*1.5flZnyc-10-480 Nut Y 8
6 4011001395 螺栓GB5785-M16*1.5*65flZnyc-10.9-480 Screw Y 4
7 4013000402 螺母GB889.2-M16*1.5flZnyc-10-480 Nut Y 4
8 4015000436 垫圈GB97.1-16flZnyc-300HV-480 Washer Y 4
9 4011001293 螺栓GB5785-M12*1.25*50flZnyc-8.8-480 Screw Y 4
10 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 4
11 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 1
12 29250014121 接头 Nipple Y 1
13 29250022801 油管 Lubricating pipe Y 1
14 29250000291 通油螺栓 Bolt Y 1
15 29250000301 垫片 Shim Y 3
16 4110002066002 突缘叉1491.707-2201062-J Link yoke Y 2
17 4110002515002 卡簧1491.707-2201063 Lock ring Y 8
18 4110002923001 十字轴总成0125-52133-T Spider Y 2
19 4110002086003 油杯M6 JB/T7940.1-1995 Grease cup N 1
20 4110003723001 突缘叉1491.707-2201062-B Link yoke N 1
21 4110001858005 六角头螺栓1/2\”-20UNF-2B*58-10.9 Screw Y 8
22 4120001054234 垫圈GB93-87 12 Washer Y 8
23 2908000753001 万向节十字轴总成G5-7126 Spider Y 2

1 29090009591 车轮总成 Wheel assembly N 2
2 4110000006 轮胎GB2980-23.5-25 Tire N 2
3 4110001502 轮辋LG19.50/2.5-25.00E Rim Y 2
4 29090013311 A515C摆动型驱动桥总成 Rear axle Y 1
5 4011001308 螺栓GB5785-M20*1.5*100flZnyc-10.9- Screw Y 12
6 4013000386 螺母GB889.2-M20*1.5flZnyc-10-480 Nut Y 12

1 29090013321 A515C后驱动桥总成 Rear axle Y 1
2 29090100051 前摆动支架 Bracket Y 1
3 29090000051 套 Sleeve Y 1
4 4011001323 螺栓GB5785-M16*1.5*50flZnyc-8.8-480 Screw Y 24
5 29070009511 垫圈 Washer Y 24
6 29090000062 衬套 Sleeve Y 1
7 29090100061 后摆动支架 Bracket Y 1
8 4041000021 O形圈LGB308-260*3.5 O-ring Y 1
9 29090009551 支承轴 Support shaft Y 1
10 4011001243 螺栓GB5783-M12*35flZnyc-8.8-480 Screw Y 6
11 29070010131 垫圈 Washer Y 12
12 29090000101 密封盖 Sealing cover Y 1
13 4030000021 O形圈GB3452.1-160*5.30G O-ring Y 1
14 29090000141 端盖 End plate Y 1
15 4011001367 螺栓GB5785-M20*1.5*90flZnyc-8.8-480 Bolt Y 4
16 29070011121 垫圈 Washer Y 4
17 29090000131 垫块 Block Y 1
18 29090000121 衬垫 Shim Y 2
19 4011001317 螺栓GB5782-M12*50flZnyc-8.8-480 Screw Y 6
20 29090000161 垫片 Shim Y 1
21 29090000112 轴套 Sleeve Y 1
