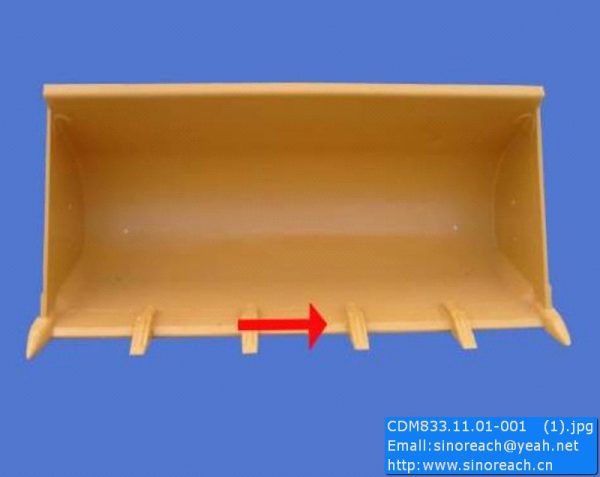

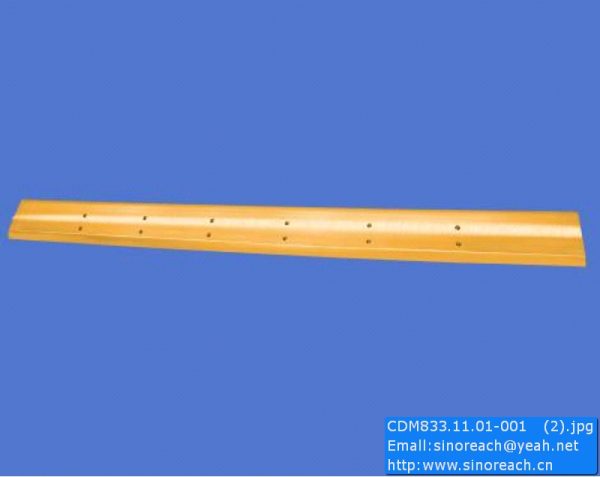

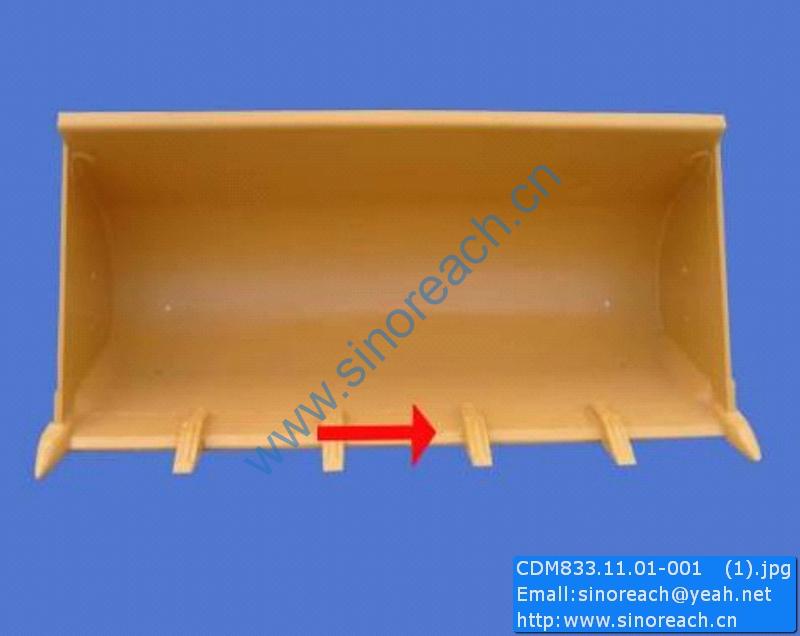

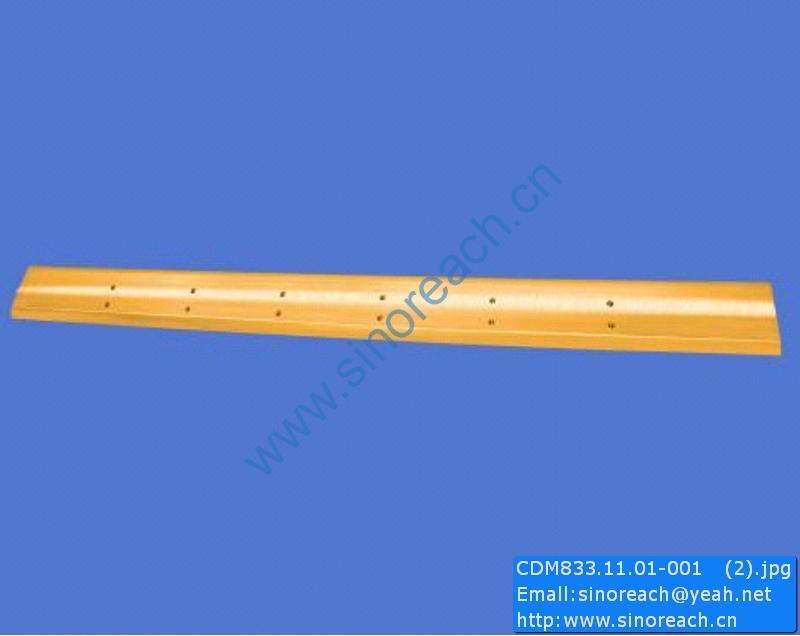

CDM833.11.01-001 Cutting board CDM833 parts

1 04050-04030 开口销 Pin 2
2 BD05-00010 螺母 Nut 2
3 01643-32260 大垫圈 Washer 2
4 07000-03032 O型圈 O-ring 2
5 BD05K-03000 法兰盘 Flange plate 1
6 BAU48-70-10 骨架油封 Profile Oil seal 2
7 07012-70050 骨架油封 Profile oil seal 1
8 01010-31225 螺栓M12×25 Bolt M12×25 8
9 01602-11236 垫圈12 Washer 8
10 BD05-00008 轴承座 Bearing seat 1
11 BD05-00014 调整垫 Washer 6
12 07000-02105 O型圈105×3.1 O-ring 105×3.1 4
13 GB297-84 轴承7308E Bearing 7308E 2
14 BD05-00016 输出齿轮 Output Gear 1
15 BD05-00007 隔套 Sleeve 1
16 BD05L-00003 输出轴 Output shaft 1
17 BD05L-00002 轴承座 Bearing seat 1
18 01010-51235 螺栓M12×35 Bolt M12×35 4
19 ZL15E-00002 制动器支座 Brake bracket 1
20 DFX.2-15A 制动器总成 Brake assembly 1
21 01602-01030 垫圈10 Washer 10 1
22 GB70-85 螺钉M10×30 Bolt M10×30 4
23 BD05K-00001 法兰 Flange 1
24 01010-31025 螺栓M10×25 Bolt M10×25 8

1 BDX05-00001 轴承盖 Bearing cover 2
2 BDX05-00002 垫片 Washer 2
3 BDX05-00003 垫片 Washer 1
4 BDX05-00004 轴承座 Bearing seat 1
5 BDX05-01000 输入法兰盘 Input Flange plate 1
6 BDX05-00006 密封垫 Gasket 1
7 BDX05-00008 调整垫 Regulating shim 1
8 BDX05-00009 输入轴 Input shaft 1
9 BDX05-00010 齿轮 Gear 1
10 BDX05-00011 传动箱壳体 Housing 1
11 BDX05-00012 管接头 Connector 1
12 04050-04030 开口销 Pin 1
13 01010-31230 螺栓M12×30 Bolt M12×30 4
14 01602-11236 垫圈12 Washer 12 4
15 BAU48-70-10 骨架油封 Profile oil seal 1
16 07000-02105 O型圈105×2.5 O-ring 105×2.5 1
17 GB276-82 轴承308 Bearing 308 1
18 GB276-82 轴承106 Bearing 106 1
19 01010-31030 螺栓M10×30 Bolt M10×30 15
20 01602-11030 垫圈10 Washer 10 21
21 01010-31025 螺栓M10×25 Bolt M10×25 6
22 07000-03032 O型圈32×3.5 O-ring 32×3.5 1
23 01643-32260 大垫圈 Washer 1
24 BD05-00010 螺母 Nut 1

1 BD05-00024 弯管接头 Curved tube connector 8
2 BD05-08000 管 Pipe 1
3 BD05-09000 管 Pipe 1
4 BD05-10000 管 Pipe 1
5 BD05-11000 管 Pipe 1
6 BD05-00001 壳体 Casing 1
7 BD05-00013 垫 Washer 1
8 BD05-00012 底板 Scaleboard 1
9 07044-12412 螺塞 Plug screw 1
10 07002-02434 O型圈 O-ring 1
11 01602-11030 垫圈10 Washer 10 22
12 01010-31025 螺栓M10×25 Bolt M10×25 22
13 BD05-03004 垫片 Washer 2
14 BD05-03001 衬套 Bushing 1
15 BD05-03002 盖 gland 1
16 07043-00108 螺塞 Plug screw 5
17 JB982-77 组合垫圈27 Washer 12 7
18 ZL15X-02000 接头 Connector 1 Φ23
BD05N1-03000 接头 Connector 1 Φ21
19 ZL15B-00001 螺栓 Bolt 2
20 BD05L-00006 放水阀 Water drain valve 2
(JB982-77) (组合垫圈10) Washer 10
21 BD05-04002 衬套 Bushing 1
22 BD05-04001 盖 Gland 1
23 BD05-03003 螺钉 Bolt 6
24 BD05-00025 垫 Washer 1
25 ZL15D 变速箱操纵阀 Control valve 1
26 JB982-77 组合垫圈18 Washer 18 2
27 转向器1号GB-4 接头 Connector 1
28 07000-01008 O型圈 O-ring 2
29 JF300-81WWAWI-1250 软管 Pipe 1
30 ZL15A-00015 管接头 tube connector 1
31 ZL15C-00005 接管 Pipe 1
32 ZL15C-30000 接头 connector 1
33 ZL15A-00013 螺母 Nut 1
34 BD05-13000 滤油器 Oil filter 1
35 JB982-77 组合垫圈48 Washer 48 1
36 BD05-00027 螺塞 Plug screw 1
