Description

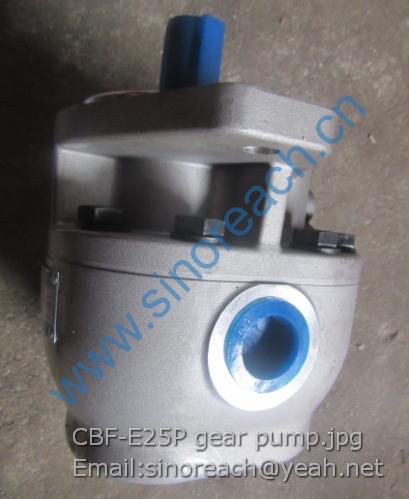

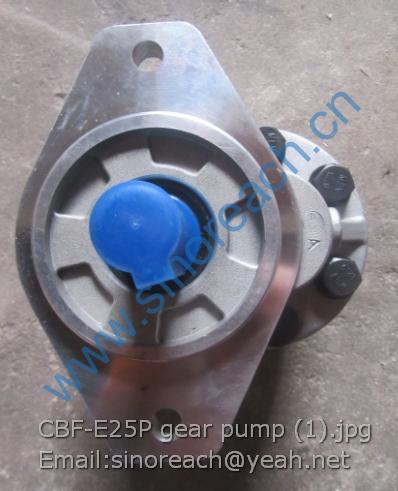

CBF-E25P gear pump
4011000084 BOLT GB5783-M10*30EpZn-8.8
4015000025 WASHER GB93-10-65Mn
29070010401 RIM COVER GB308-17.462-GCr15
4090000006 STEEL BALL GB308-17.462-GCr15
29070009161 LOCK BLOCK
4015000257 CHECK RING GB894.1-38-65Mn
4090000007 STEEL BALL GB308-8-GCr15
29070010421 PLANET PINION SHAFT
3050900042 RING SNAP
4090000001 ROLLER GB309-4*35-GCr15
29070010881 SPECER
29070010441 RIM BOLT
3050900045 O-RING
29070010461 HUB WHEEL
4013000136 NUT GB6171-M18*1.5EpZn-8
4015000029 WASHER GB93-18-65Mn
4011000568 BOLT GB5786-M12*1.25*40EpZn-10.9
29070010131 WASHER
29070010491 BEARING SLEEVE
29070010501 DIFFERENTIAL AXLE
4021000135 BEARING GB297-32017
4021000036 BEARING GB297-32216
4014000118 SCREW GB70-M8*1*20-8.8
29070010511 ROUND NUT
4011000475 BOLT GB16674-M10*30EpZn-8.8
29120014931 WASHER
4011000344 BOLT JB999-M14*1.5*32-35
4041000095 STAIGHT JOINT LGB120-02218
4041000768 O-RING LGB-11524
29120010301 TRANSITION BLOCK
4011000279 BOLT GB16674-M10*60EpZn-8.8
29120007651 JOINT
29120010021 BEARER
4011000474 BOLT GB16674-M10*25EpZn-8.8
29120015671 MOUNTED PLATE
4011000137 BOLT GB16674-M12*20EpZn-8.8
29120015661 MOUNTED PLATE
4015000168 WASHER GB97.1-12EpZn-300HV
4013000011 NUT GB6170-M12 EpZn-8
4011000467 BOLT GB16674-M12*45EpZn-8.8
4011000479 BOLT GB16674-M12*30EpZn-8.8
4041000598 PLUG LGB142-01604
4041000577 STAIGHT JOINT LGB120-03633
29120010461 UNIT ANGLE COUPLING
4030000504 O-RING GB3452.1-25.8*1.80G
29120006551 UNIT ANGLE COUPLING
4041000582 CONNECTOR LGB120-02630
4041000511 PIPE LGB128012112
29120009971 VALVE BLOCK
4041001023 JOINT LGB143-01608
29120015701 HOSE
29120009991 UNIT ANGLE COUPLING
4041000601 SOFT TUBE LGB165-006060
4041000604 JOINT LGB120-01614
29120010011 RETURN BLOCK
4041000774 PLUG LGB13501421
4041000830 JOINT LGB120-01618
29120015221 WASHER
29120015401 FITTING
4041001047 CONNECTOR LGB143-01406
29120009931 CLAMPING PLATE OF CONTROL VALVE
26130001471 PLUG SCREW
4011000169 BOLT GB16674-M8*70EpZn-8.8
4013000033 NUT GB6170-M8EpZn-8
4015000072 WASHER GB97.1-8EpZn-300HV
29120015361 PIPE CLIP
29120015381 PLATE
4041000796 CONNECTOR LGB120-02628
29120007671 CLAMP
4011000461 BOLT GB16674-M8*16EpZn-8.8
4041000133 JOINT LGB120-01414
29120010061 TEE PIPE COUPLING
29190008061 GLAND
4011000481 BOLT GB16674-M8*30Ep.Zn-8.8
4011000314 BOLT GB16674-M10*80EpZn-8.8
29120006611 RUBBER PLATE
29120006601 PRESS PLATE
4013000007 NUT GB6170-M10EpZn-8
4015000162 WASHER GB97.1-10EpZn-300HV
4041000592 PIPE LGB125-004055
29120015081 JOINT
4011000082 BOLT GB5783-M10*25EpZn-8.8
29130006521 TUBE
29130006531 TUBE
29130006541 TUBE
29130006551 TUBE
29130008271 THREE-WAY OIL TUBE
4041000582 CONNECTOR LGB120-02630
29130006561 TUBE
29130009681 PIPE CLIP
4011000461 BOLT GB16674-M8*16EpZn-8.8
29130006571 TUBE
29130006581 TUBE
4041001225 U-BOLT LGB159-11826
4041001226 SOLEPLATE LGB160-1826
4013000028 NUT GB6170-M6EpZn-8
4015000207 WASHER GB97.1-6EpZn-300HV
4011000455 BOLT GB16674-M8*25EpZn-8.8
4011000145 BOLT GB16674-M14*35EpZn-8.8
4013000013 NUT GB6170-M14EpZn-8
