Description

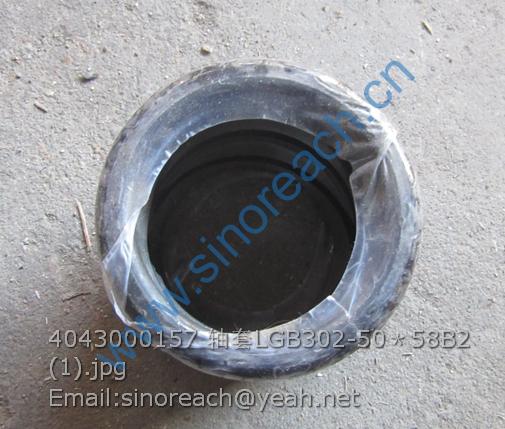

Bushing 4043000157 for LGB680 Excavating loader
1 4011001358 螺栓GB5783-M10*30flZnyc-10.9-480 Screw Y 2
2 4015000384 防松垫圈NASM1312-7-NL10 Washer Y 2
3 29050011161 垫圈 Washer Y 1
4 4030000536 O形圈GB3452.1-122*3.55G O-ring Y 4
5 29050017481 油封座 Sealing retainer Y 2
6 4021000024 滚动轴承GB276-6312 Ball bearing Y 2
7 29050017461 输出轴 Output shaft Y 1
8 3030900121 输出轴齿轮 Drive shaft gear Y 1
9 29050016931 挡圈 Retaining ring Y 2
10 4030000768 密封圈GB13871.1-FB070095-F Sealing ring Y 2
11 29050018381 O型圈 O-ring Y 2
12 4013000066 螺母GB889.2-M33*1.5-8 Lock nut Y 1
13 29070000221 垫圈 Washer Y 1
14 29050012751 调整垫片 Shim Y 2
15 29050012741 调整垫片 Shim Y 2
16 29050012731 调整垫片 Shim Y 2
17 29050017471 密封套 Sealing sleeve
1 4021000020 滚动轴承GB276-6211 Ball bearing Y 1
2 4013000036 螺母GB6171-M10*1EpZn-8 Nut Y 20
3 4015000025 垫圈GB93-10-65Mn Spring washer Y 20
4 29050019581 中间输入轴 Input shaft Y 1
5 4021000055 滚动轴承GB276-6010E Ball bearing Y 1
6 4015000015 挡圈GB893.1-80-65Mn Retaining ring Y 1
7 29050019561 隔离套 Sleeve N 1
8 29050019491 挡环 Retaining ring N 1
9 29050019501 内环凸轮 Cam N 1
10 29050019601 内环凸轮 Cam N 1
11 29050024291 弹簧 Spring Y 40
12 29050024301 柱销 Pin Y 40
13 29050019541 滚柱Φ15*32 Roller Y 20
14 29050019511 挡板 Plate N 1
15 29050019481 螺栓 Screw N 20
16 29050019571 外环齿轮 Gear N 1
17 4021000057 滚动轴承GB276-6210E Ball bearing Y 2
18 29050019551 间隔环 Spacer ring
1 29050028031 LG936L变速箱标牌 Name plate N 1
2 4019000012 铆钉GB827-3*5-BL2 Rivet Y 4
3 29050027231 箱体 Transmission housing Y 1
4 4011000017 螺栓GB21-M10*30EpZn-8.8 Bolt Y 34
5 4015000025 垫圈GB93-10-65Mn Spring washer Y 60
6 4011001127 螺栓GB5783-M14*40-10.9 Screw Y 8
7 4015000358 垫圈GB1230-14EpZn-45 Plain washer Y 8
8 2030900019 四轴总成(2) Shaft N 1
9 29050022981 中盖 Cover Y 1
10 3030900091 端盖 End plate Y 1
11 29050011321 密封垫 Gasket Y 1
12 4030000011 O形圈GB1235-20*2.4 O-ring Y 1
13 3030900102 螺塞 Plug Y 1
14 29050027111 前法兰总成 Flange Y 1
15 29050017451 输出轴总成 Output shaft N 1
16 29050022051 后法兰总成 Flange Y 1
17 29050023122 销 Pin Y 2
18 2030900026 四轴总成（1） Shaft N 1
19 2030900027 三轴总成 Shaft N 1
20 4110002520 变矩器YJSW315-2A Torque converter Y 1
21 4021000019 滚动轴承GB276-6210N Ball bearing Y 2
22 4015000024 挡圈GB894.1-90-65Mn Retaining ring Y 2
23 3030900094 轴齿轮 Drive shaft gear Y 1
24 29050023111 密封垫 Gasket Y 1
25 4021000012 滚动轴承GB276-6012 Ball bearing Y 1
26 29050011363 密封垫 Gasket Y 1
27 4011000855 螺栓GB16674-M10*55EpZn-10.9 Bolt Y 6
28 4120000063 变速泵LG03-BSB Gear pump Y 1
29 29050020551 调整垫片 Shim Y 1
30 29050020561 调整垫片 Shim Y 131 29050020571 调整垫片 Shim Y 1
32 29050020921 调整垫片 Shim Y 1
33 29050025561 调整垫片 Shim Y 1
34 4014000030 吊环螺钉GB825-M20EpZn-20 Screw Y 2
35 29050018031 透气接头 Nipple Y 1
36 4120000345 螺塞Q/ZB286-ZG1/2″-Q235A Plug Y 2
37 4011000174 螺栓GB21-M10*70EpZn-8.8 Bolt Y 18
38 4120000064 变速操纵阀LG03-BSF Control valve Y 1
39 29050011381 密封垫 Gasket Y 1
40 4011000097 螺栓GB5783-M18*40EpZn-8.8 Bolt Y 8
41 4015000029 垫圈GB93-18-65Mn Spring washer Y 8
42 29050000111 连接座 Attachment bracket Y 2
43 2030900065 滤油器总成 Oil filter Y 1
44 4015000036 垫圈GB93-8-65Mn Spring washer Y 6
45 4011000107 螺栓GB5783-M8*30EpZn-8.8 Bolt Y 6
46 3030900230 压盖 Cover Y 1
47 4030000013 O形圈GB1235-32*3.1 O-ring Y 4
48 29050018471 接头体 Nipple Y 4
49 4190000007 环形磁铁LG03-CT70*32*14 Magnet Y 1
50 4015000013 挡圈GB893.1-70-65Mn Retaining ring Y 1
51 3030900232 垫片 Shim Y 2
52 4011001013 螺栓GB5782-M10*80EpZn-10.9 Screw Y 2
53 29050020161 转向泵驱动齿轮 Drive shaft gear Y 1
54 4021000020 滚动轴承GB276-6211 Ball bearing Y 1
55 29050000071 轴承套 Bearing bushing Y 1
56 3030900098 圆柱堵塞 Plug Y 1
57 29230009952 鼓式制动器总成 Brake assembly N 1
