Description

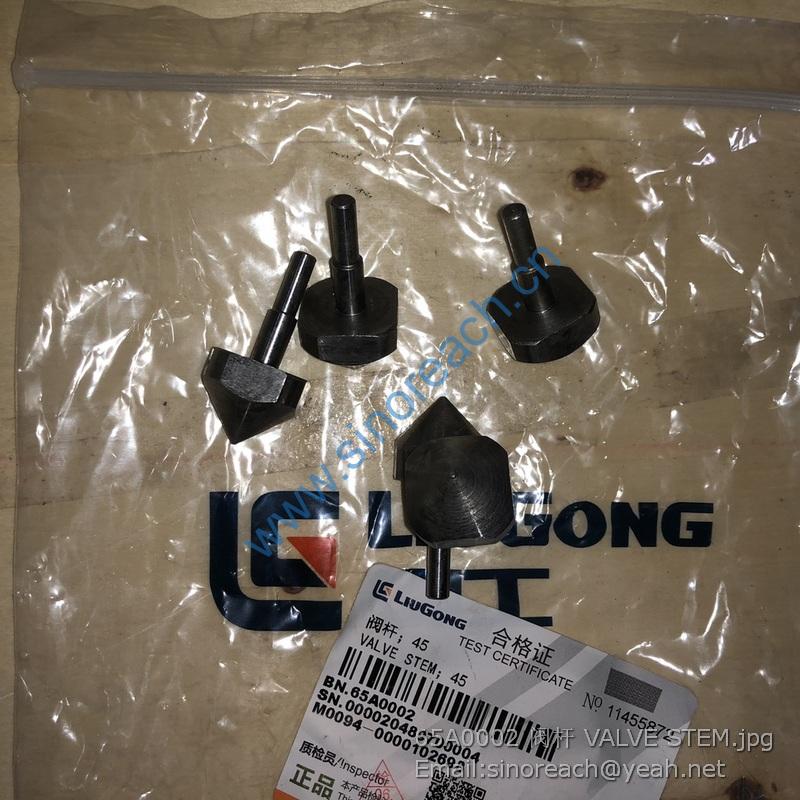

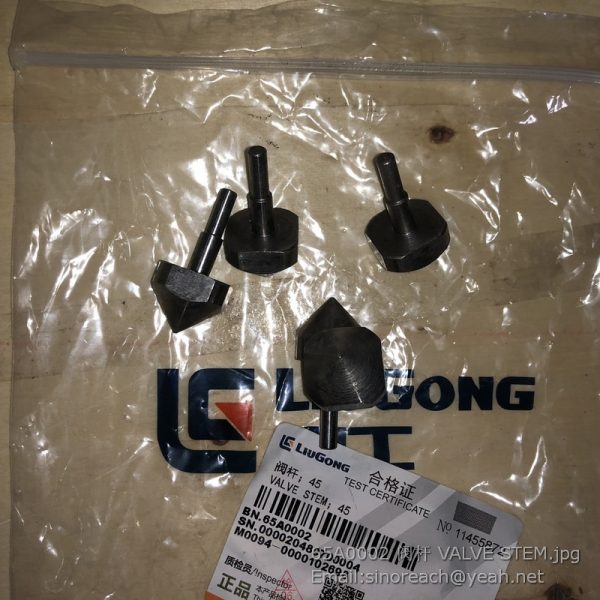

65A0002 VALVE STEM

1 00B0007 000 螺栓 BOLT 8
2 06B0006 000 垫圈 WASHER 8
3 11A0011 001 垫板 PLATE 1
4 82A0004 000 衬垫 GASKET 1
5 70A0001 004 壳体
CONVERTER
HOUSING
1
6 42C0042 000 变矩器 CONVERTER 1
7 00B0012 000 螺栓 BOLT 9
8 06B0002 000 垫圈 WASHER 21
9 03A0019 000 管接头 CONNECTOR 2
10 12B0144 000 O 形密封圈 O-RING 2
11 65A0001 000 阀杆 VALVE STEM 1
12 10B0002 000 弹簧 SPRING 1
13 13A0011 000 压板 PLATE 1
14 10B0001 000 弹簧 SPRING 1
15 21A0005 000 阀盖 COVER 1
16 65A0002 001 阀杆 VALVE STEM 1
17 12B0291 000 O 形密封圈 O-RING 1
18 03B0051 000 螺塞 PLUG 1
19 28C0093 001 调整垫组件
ADJUSTING SHIM
SET
1
20 00B0058 000 螺栓 BOLT 12
21 06B0008 000 垫圈 WASHER 12
22 81A0005 000 衬垫 GASKET 1
23 10A0010 000 弹性板 PLATE 1
24 12D0002 000 弹性板总成 PLATE AS 1 Z
25 05B0004 000 螺柱 STUD 12
26 03B0053 000 螺母 NUT 12
29 09B0002 000 铆钉 RIVET 4
30 74A1168 000 变矩器铭牌 NAMEPLATE 1
31 05A0008 001 堵头 PLUG 1
32 12B0379 000 O 形密封圈 O-RING 1
33 12B0339 000 O 形密封圈 O-RING 1
34 00A0170 000 油温表接头 JOINT 1

1 10A0010 000 弹性板 PLATE 1
2 56A0008 000 垫片 SHIM 6

1 03B0020 000 螺母 NUT 2
2 10B0027 000 钢丝圈 RING 2
3 10D0009 000 弯管 ELBOW 2
4 03A0017 000 管接头 CONNECTOR 2
5 31A0004 000 高压软管 HOSE 1
6 55A0023 000 外套 BUSHING 2

1 00A0114 001 接头 CONNECTOR 2
2 56A0009 000 垫圈 WASHER 4
3 09C0354 000 管夹总成 CLAMP 1
4 00C0001 000 弯管 ELBOW 1
5 53C0085 001 滤油器 OIL FILTER 1
6 07C0558 000
变矩器至散热器软
管
HOSE 1
7 10A0010 000 弹性板 PLATE 1
8 12D0002 000 弹性板总成 PLATE AS 1 Z
9 05B0004 000 螺柱 STUD 12
10 03B0053 000 螺母 NUT 12
11 06B0002 000 垫圈 WASHER 12
12 52C0076 004 变矩器总成
TORQUE
CONVERTER
1
13 07C0185 000
变速箱至滤油器软
管
HOSE 1
14 00C0002 000 变速泵进油管 PIPE 1 Z
15 00B0011 000 螺栓 BOLT 2
16 06B0008 000 垫圈 WASHER 8
17 01A0001 000 弯头 ELBOW 1
18 30A0072 000 Φ25-2P 低压软管 HOSE 1
19 15B0001 000 双钢丝式环箍 CLAMP 2
20 61A0351 000 轴 SHAFT 1
21 01B0142 000 螺栓 BOLT 6
22 07C0836 000
变矩器至散热器软
管
HOSE 1
23 00A0002 000 接头 CONNECTOR 1
