Description

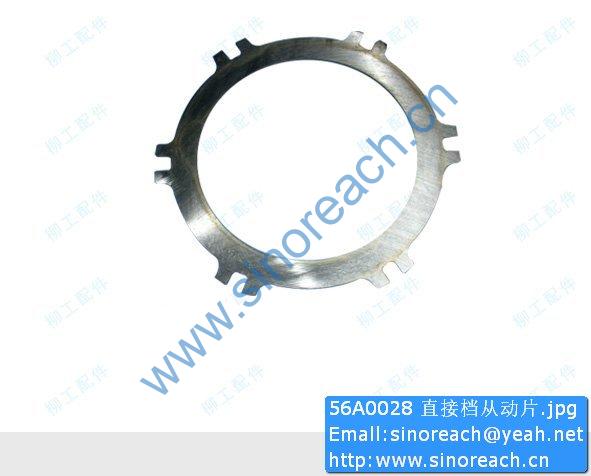

56A0028 DRIVEN PLATE for LIUGONG PART

6 05C3494 Hose assembly ASSY 1

1 00D2034 Handbrake pressure plate WELD 1
2 54K0004 Stretching flexible shaft assembly 1
3 21A2925 Limit switch support plate Q235 1
4 13C0058 Handbrake assembly assembly LYZ-3526010 1
5 88A0023 pull-down ring 45 ZL50.13.2-2 1
6 00D8296 Bracket WELD 1
CLG816G-15E0418 service brake system
Serial number part number name material code quantity
1 11C0555 Motor pump assembly 12MB12CLP17M 1
2 12C0057X0 check valve assembly ZL50E.10.6 1
3 13C0285 Filling valve ASSY 06-463-230 1
4 13C0274 Brake valve assembly 06-466-206 1
5 15C0225 Accumulator ASSY NXQ1-L0.63/31.5-H 2
6 05C3494 Hose assembly ASSY 1
7 05C1658 Hose assembly ASSY 1
8 05C1712 Hose assembly ASSY 1
9 06C3260 Hose assembly assembly 1
10 05C1654 Hose assembly ASSY 1
11 05C1657 Hose assembly ASSY 1
12 05C1656 Hose assembly ASSY 1
13 05C1655 Hose assembly ASSY 1
14 05C1653 Hose assembly ASSY 1
15 06C3248 Hose assembly ASSY 1
16 05C1678 Hose assembly ASSY 1
17 10D2563 Steel pipe assembly WELD 1
18 10D2562 Steel pipe assembly WELD 1

1 13C0004 Air brake valve assembly XM-60C 1
2 34B0010 Air brake light switch assembly JN150-3720010 1
3 13K0006 Tire inflation valve assembly LG-3521002 1
4 13K0001 Air afterburner pump assembly LG40D-3510002 1
5 13K0003 Safety valve assembly HFC1063-3515002 1
6 13C0490 Pressure regulating valve ASSY LG1063A-3512002 1
7 13K0004 Check valve assembly STR-3525002 1
8 05K0004 Brake hose assembly 1
9 04C0184 Hose assembly ASSY 1
10 05C3685 Hose assembly ASSY 1
11 04C0183 Hose assembly ASSY 1
12 04C0185 Bellows ASSY 1
13 03C0101 Nylon tube PA11 2
14 03C0102 Nylon tube PA11 1
15 10D3017 Steel pipe assembly WELD 1
16 13K0012 Gas tank assembly assembly 1
05L0005 Gas storage tank WELD 1
13C0109 Manual drain valve assembly STETR79100360044-010 1
CLG816C-21M0004 parking brake system
Serial number part number name material code quantity
1 03K0010 Nylon tube assembly 1
2 03K0011 Nylon tube assembly 1
3 54K0004 Stretching flexible shaft assembly 1
4 45C0020 Hand brake assembly assembly 1
13C0059 Button valve assembly STR-3524001 1
13C0058 Handbrake assembly assembly LYZ-3526010 1
00D2154 Bracket weldment 1

1 05K0004 Brake hose assembly 1
2 05K0003 Brake hose assembly 1
3 04K0010 Brake air pipe assembly 1
4 04K0009 Brake air pipe assembly 1
5 03K0007 Brake nylon tube assembly 1
6 03K0008 Brake nylon tube assembly 1
7 03K0007 Brake nylon tube assembly 1
8 04C0136 Cooling air pipe assembly 1
9 10L0035 Front axle steel pipe WELD 1
10 13C0004 Air brake valve assembly XM-60C 1
11 34B0010 Air brake light switch assembly JN150-3720010 1
12 13K0006 Tire inflation valve assembly LG-3521002 1
13 13K0001 Air afterburner pump assembly LG40D-3510002 1
14 13K0002 Pressure regulating valve assembly HFC1063-3512002 1
15 13K0003 Safety valve assembly HFC1063-3515002 1
16 13K0004 Check valve assembly STR-3525002 1
17 13K0012 Gas tank assembly assembly 1
05L0005 Gas storage tank WELD 1
13C0109 Manual drain valve assembly STETR79100360044-010 1
CLG816-21M0004 parking brake system
Serial number part number name material code quantity
1 03K0010 Nylon tube assembly 1
2 03K0011 Nylon tube assembly 1
3 13C0058 Handbrake assembly assembly LYZ-3526010 1
4 13C0059 Button valve assembly STR-3524001 1
5 54K0004 Stretching flexible shaft assembly 1
