Description

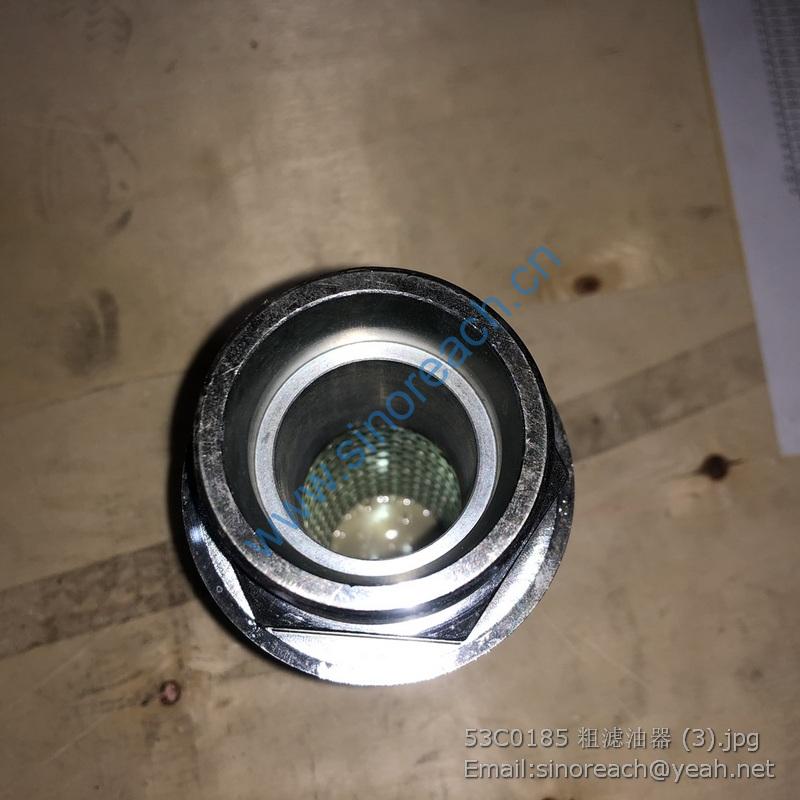

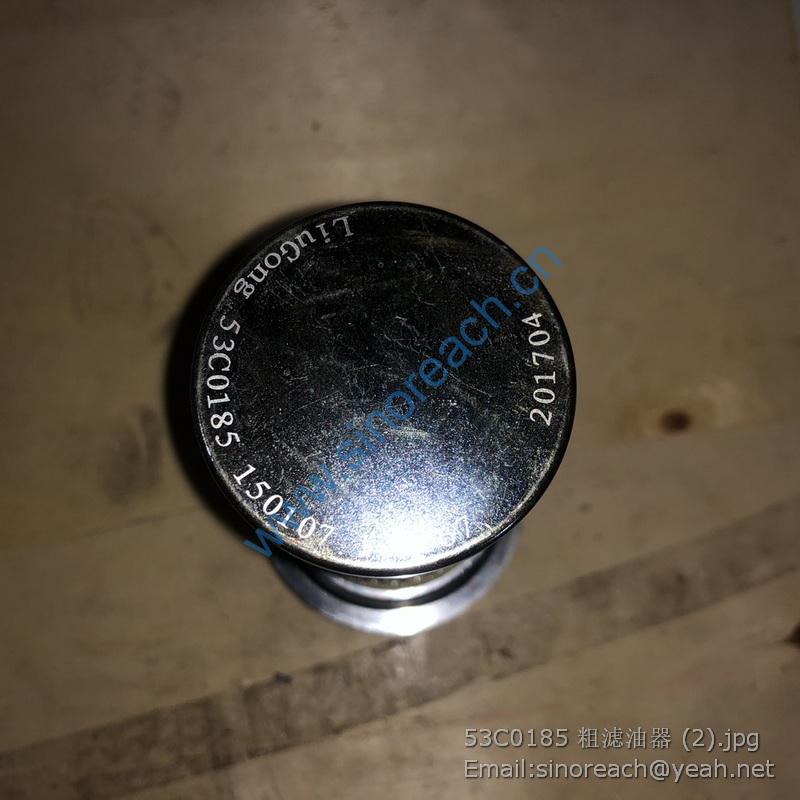

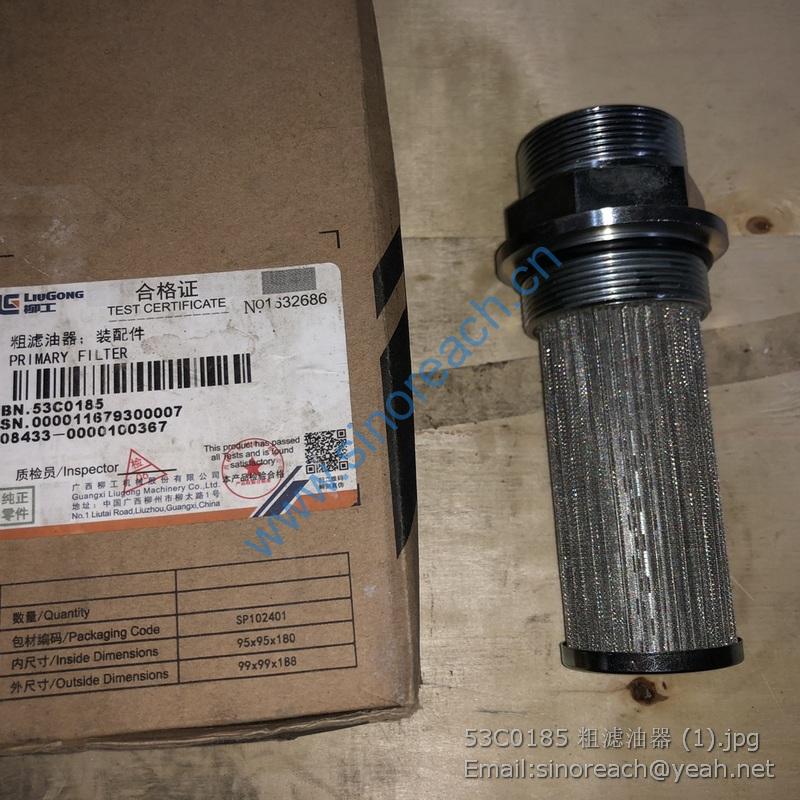

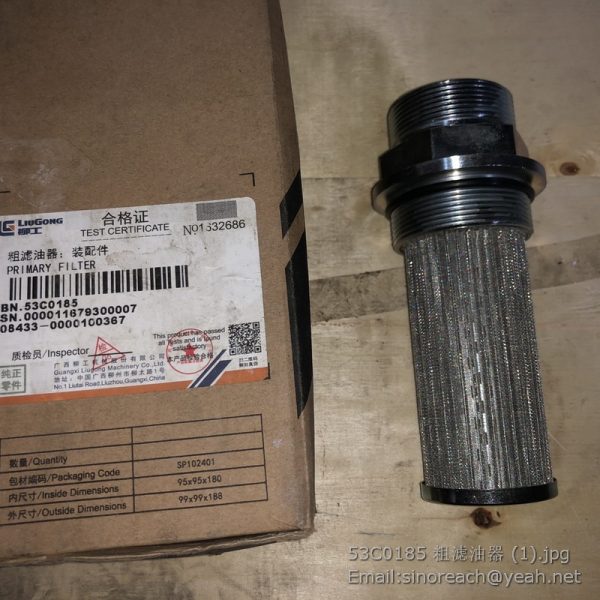

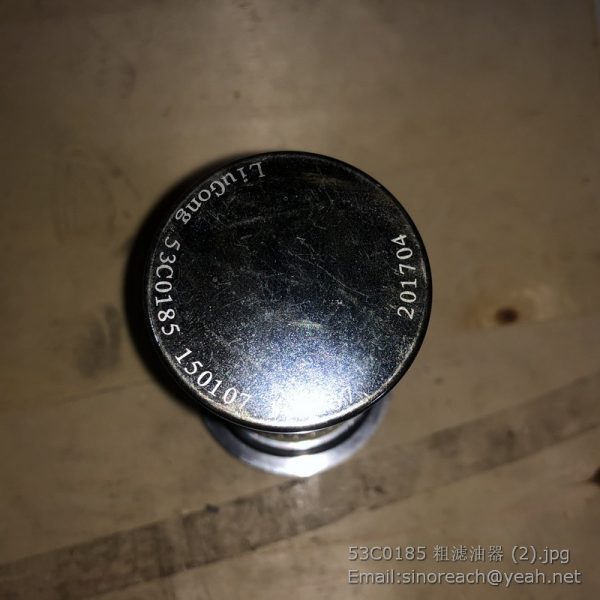

53C0185 primary FILTER

28 10L0024 钢管总成 TUBE AS 1
29 10L0039 钢管总成 TUBE AS 1
30 10L0040 钢管总成 TUBE AS 1
31 10L0041 钢管总成 TUBE AS 1
32 06K0039 软管总成 HOSE AS 1
33 12B0021 GB3452.1-92 O 形圈 O-RING 19×1.8 3
34 06K0021 软管总成 HOSE AS 1
35 06K0020 软管总成 HOSE AS 2
36 06K0019 软管总成 HOSE AS 2
37 06K0027 软管总成 HOSE AS 1
38 27H0003 管夹 CLAMP 2
40 06K0018 软管总成 HOSE AS 1
41 00H0046 接头 CONNECTOR 2
42 12B0198 GB1235-76 O 形密封圈 O-RING 33×3.1 6
43 00H0047 接头 CONNECTOR 4
44 12K0012 ZL20DJL-02 多路阀
CONTROL
VALVE
1
45 00B0087 GB5783-86 螺栓 BOLT
M12×
50-10.9-Zn.D
4
46 03B0003 GB6170-86 螺母 NUT M12-8-Zn.D 4
47 06B0008 GB93-87 垫圈 WASHER 12 4
48 10K0013 动臂油缸
BOOM
CYLINDER
2
49 12C1641
多路换向
阀
CONTROL
VAVLE
1

1 55A0288 ZL15.10.1-1 衬套 BUSHING 1
2 34C0052 ZL15.11.5 防尘圈 DUST RING 2
3 13L0011 缸体
CYLINDER
BODY
1
4 20J0001 GB308-89 钢球 STEEL BALL 4.5 1
5 04J0003 GB70-85 螺钉 SCREW
M6×
14-8.8-Zn.D
1
6 34K0028
孔用组合
封
SEAL RING CKW0800 1
7 80H0013 支承环
SUPPORT
RING
2
8 50H0007 活塞 PISTON 1
9 12B0062 GB3452.1-92 O 形圈 O-RING 40×3.55 1
10 14L0007 活塞杆 ROD AS 1
11 53H0020 缸盖 HEAD 1
12 12B0117 GB3452.1-92 O 形圈 O-RING 73×3.55 1
13 34K0029
轴用组合
封
SEAL RING CKS0450 1
14 80H0018 支承环
SUPPORT
RING
G45×14.8×
2.5
2
15 34K0030 Y 形密封圈 Y-SEAL 45×60×12.5 1
16 12J0009 GB3452.1-92 O 形圈 O-RING 80×2.65 1
17 34K0031 防尘圈 DUST RING FC45×53×5 1

1 55A0421 ZL15.10.2-1 衬套 BUSHING 2
2 34C0034 密封圈 SEAL 4
3 34K0023 防尘圈 DUST RING FC55×65×6 1
4 53H0019 缸盖 HEAD 1
5 12J0010 GB3452.1-92 O 形圈 O-RING 100×2.65 1
6 34K0025 Y 形密封圈 Y-SEAL 55×70×12.5 1
7 34K0026
轴用组合
封
SEAL RING CKS0550 1
8 12B0060 GB3452.1-92 O 形圈 O-RING 92.5×3.55 1
9 80H0016 支承环
SUPPORT
RING
1
10 14L0006 活塞杆 ROD AS 1
11 12B0361 GB3452.1-92 O 形圈 O-RING 54.5×3.55 1
12 34K0027
孔用组合
封
SEAL RING CKW1000 1
13 50H0006 活塞 PISTON 1
14 80H0017 支承环
SUPPORT
RING
S1000×19.5×2.5 1
15 04B0263 GB70-85 螺钉 SREW M8×16-8.8-Zn.D 1
16 20B0035 GB308-89 钢球 BALL 5 1
17 13L0010 缸体
CYLINDER
BODY
1

1 10B0018 GB1153-89 油杯
GREASE
FITTING
90°M10×1 2
2 06B0005 GB97.1-85 垫圈 WASHER 8-140HV-Zn.D 4
3 08B0080 GB91-86 销 PIN 4×20-Zn.D 4
4 60H0031 圆肩销 PIN 4
5 54K0009 推拉软轴
CABLE;
CONTROL
2
6 00B0012 GB5783-86 螺栓 BOLT M10×25-8.8-Zn.D 6
7 06B0002 GB93-87 垫圈 WASHER 10 6
8 00L0037 支架 BRACKET 1
9 00B0007 GB5783-86 螺栓 BOLT M8×16-8.8-Zn.D 4
10 06B0006 GB93-87 垫圈 WASHER 8 4
11 23A0109
ZL50C.10.2
4-1
支座 BRACKET 2
12 16L0009 操纵杆
CONTROL
LEVER
2
13 03B0035 GB6171-86 螺母 NUT M10×1-8-Zn.D 2
14 35C0001
ZL50C.7.2A
.1
捏手 KNOB 2
15 61A0058
ZL50C.10.2
4-3
轴承套 BUSHING 4
16 20B0011 GB309-77 滚针
ROLLING
NEEDLE
2.5×10 84
17 61A0059
ZL50C.10.2
4-4
油封壳
OIL SEAL
HOUSING
4
18 61A0060
ZL50C.10.2
4-5
轴 SHAFT 2
19 80A0043
ZL50C.10.2
4-6
油封 OIL SEAL 4
20 07B0021
ZL50C.10.2
4-7
挡圈 RETAINER 4
21 23H0040
软轴支座
板
BRACKET 1
