Description

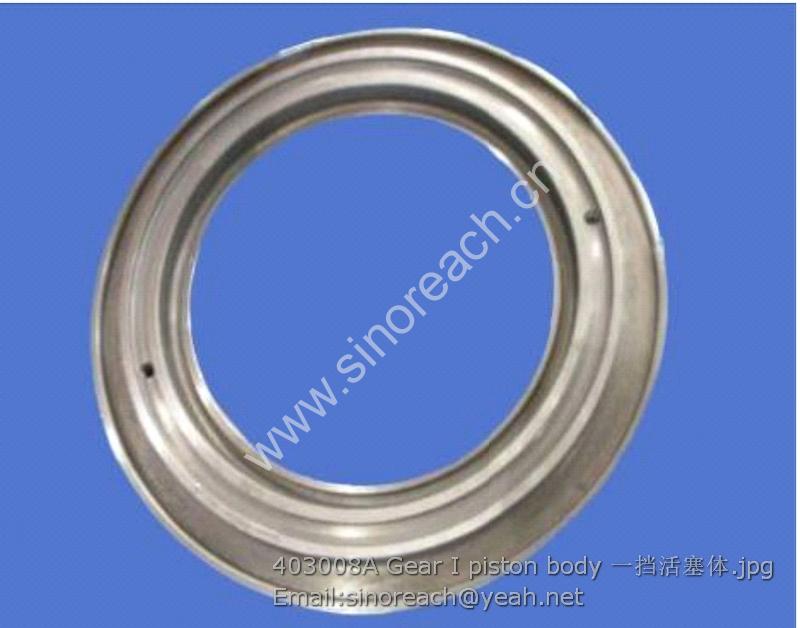

50A0002 403008A Authentic Gear Piston for Xgma Xg932 Xg935 Wheel Loaders
| 1 | 52A0009 | 403003A | 1 | 中盖 | Cover | ||
| 2 | 10B0032 | GB1235-76 | 20×2.4 | 1 | O型圈 | O ring | |
| 3 | 69A0002 | 403004 | 1 |
|
Cylinder body | ||
| 4 | 50A0002 | 403008A | 1 | 活塞体 | Piston | ||
| 5 | 11B0005 | 403006A | 2 |
|
Seal | ||
| 6 | 11B0004 | 403010A | 1 |
|
Seal | ||
| 7 | 55A0013 | 403011 | 8 |
|
Plate | ||
| 8 | 42C0011 | 403012-013 | 8 |
|
Disc assem | ||
| 9 | 66A0003 | 403015 | 8 |
|
Pin | ||
| 10 | 10A0001 | 403023 | 1 |
|
Plate | ||
| 11 | 66A0004 | 403022 | 1 |
|
Pin | ||
| 12 | 71A0017 | 403014 | 1 | 隔离架 | Bracket | ||
| 13 | 00B1119 | GB5783-86 | M14×38 | 8 | 螺栓 | Bolt | |
| 14 | 06B0005 | GB93-87 | 14 | 8 | 垫圈 | Washer | |
| 15 | 60A0013 | 403016 | 15 | 销轴 | Pin | ||
| 16 | 27B0003 | 403017 | 15 | 弹簧 | Spring | ||
| 17 | 11B0006 | 403020A | 1 | 密封圈 | Seal | ||
| 18 | 50A0003 | 403018A | 1 | 活塞 | Piston |
