Description

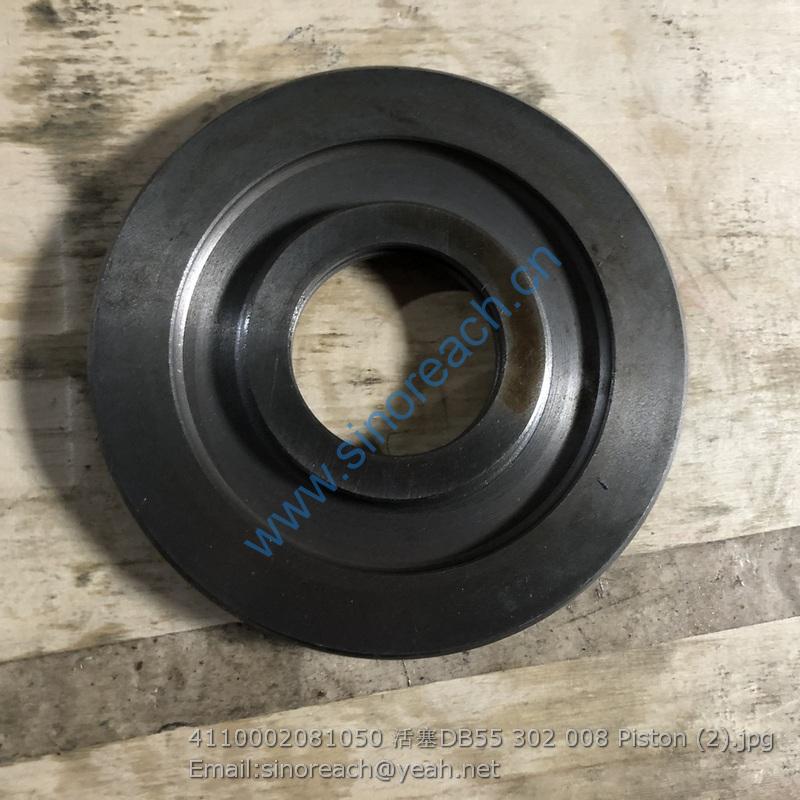

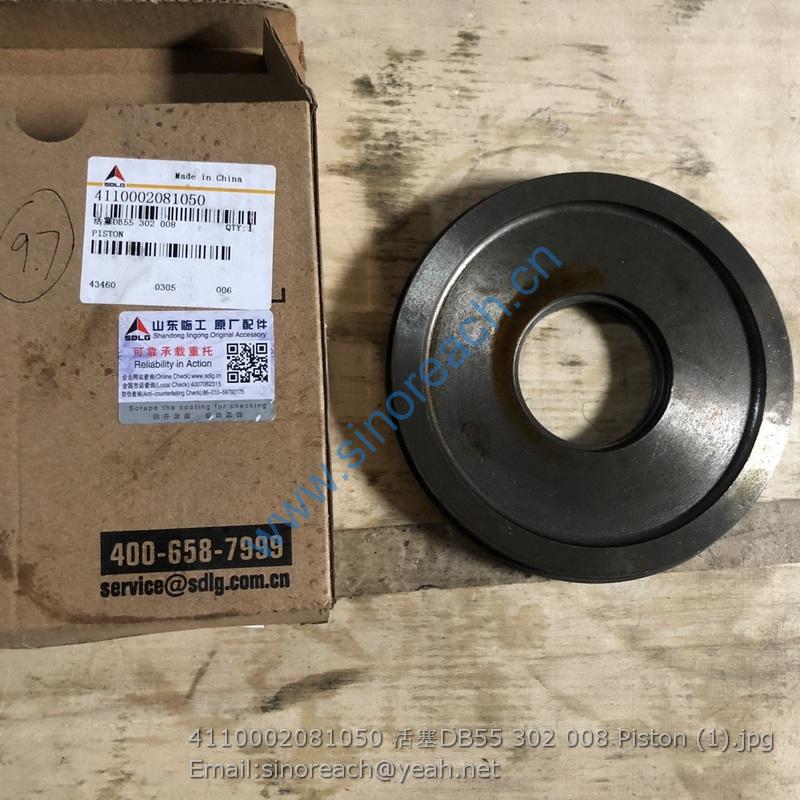

4110002081050 Piston DB55 302 008 SDLG loader parts

1 4013000220 螺母GB810－M20*1.5EpZn－8 Nut Y 1
2 4015000285 垫圈GB858－20 Washer Y 1
3 4110000038171 垫圈 ZL20-032011 20 Washer Y 1
4 4030000178 O形圈GB3452.1-30.0*3.55G O-ring Y 1
5 4110002081040 法兰DB55 302 002 Bearing flange Y 1
6 4110002081041 防尘罩DB55 302 003 Dust cover Y 1
7 4110002081042 输入轴DB55 302 001 Input shaft Y 1
8 4110000499294 唇形密封圈GB9877.1-88 FB45*62*8 Sealing ring Y 1
9 4011000744 P螺栓GB21-M10*30-8.8 Bolt gb21-m10*30-8.8 Y 9
10 4015000025 垫圈GB93-10-65Mn Spring washer Y 9
11 4110000038038 输入轴端盖ZL20-030008 Cover plate Y 1
12 4110000038048 纸垫ZL20-030002 Paper pillow Y 1
13 4110002081043 调整垫片ZL20-032016 Shim Y 1
14 4021000167 P轴承GB297-32207 Bearing Y 2
15 4011000082 螺栓GB5783-M10*25EpZn-8.8 Bolt Y 8
16 4110002081044 止动片DB55 302 016 Retaining plate Y 4
17 4110002081045 圆柱销8m6×22 GB/T119.1-2000 Pin Y 2
18 4110002081046 齿轮DB55 302 004 Gear Y 1
19 4110002081047 离合器外壳座DB55 302 005 Housing Y 1
20 4110002081048 离合器外壳DB55 302 007 Closure Y 1
21 4110000038191 阀座 ZL20-032109 Seat Y 1
22 4090000126 钢球GB308-5-GCr15 Ball Y 1
23 4030001255 P-O形圈GB3452.1-45*2.65G O-ring Y 1
24 4110002081049 封油圈DB55 302 009 Sealing ring Y 1
25 4110002081050 活塞DB55 302 008 Piston Y 1
26 4110002081051 内摩擦片DB55 302 024 Friction disc Y 9
27 4110002081052 外摩擦片DB55 302 023 Friction disc Y 10
28 4110000076190 承压板4642308185 Anchor plate Y 1
29 4110002081054 弹性挡圈0730 513 415 Retaining ring N 1
30 4110002081055 弹簧DB55 302 012 Spring Y 1

31 4110002081056 弹簧挡板DB55 302 011 Baffle Y 1
32 4110002081057 轴用挡圈45DB55 302 019 Retaining ring Y 1
33 4021000009 滚动轴承GB276-6008 Ball bearing Y 2
34 4110002081058 孔用挡圈68 DB55 302 015 Retaining ring Y 1
35 4110002081059 齿轮DB55 302 006 Gear Y 1
36 4110002081060 轴套DB55 302 013 Bushing Y 1
37 4110002081061 调整轴套DB55 302 014 Bushing Y 1
38 4110002081062 内封油环DB55 302 010 Sealing ring Y 1
39 4110002081063 进油端盖总成DB55 202 004 Cover Y 1
40 4110002081064 纸垫DB55 302 018 Sealing ring Y 1
41 4110000038198 活塞环(Φ52)CA10-350914-A Piston ring Y 2
42 4110000038175 闷塞 ZL20-032009 9 Plug Y 1
43 4110000038199 轴端档板 Zl20-032002A Cover plate Y 1
44 4110000038203 止动垫 ZL20-032001 Spacer Y 1
45 4011000102 螺栓GB5783-M8*16EpZn-8.8 Bolt Y 2
46 4110002081096 弹性挡圈A=2,25 0730 513 420 Retaining ring Y 1
47 4110002081097 弹性挡圈A=2,30 0730 513 419 Retaining ring Y 1
48 4110002081098 弹性挡圈A=2,35 0730 513 418 Retaining ring Y 1
49 4110002081099 弹性挡圈A=2,40 0730 513 417 Retaining ring Y 1
50 4110002081100 弹性挡圈A=2,45 0730 513 416 Retaining ring Y 1
51 4110002081101 弹性挡圈A=2,50 0730 513 180 Retaining ring Y 1
52 4110002081102 弹性挡圈A=2,20 0730 513 421 Retaining ring Y 1
53 4110002081103 弹性挡圈A=2,15 0730 513 455 Retaining ring Y 1

1 4011000102 螺栓GB5783-M8*16EpZn-8.8 Bolt Y 4
2 4011000744 P螺栓GB21-M10*30-8.8 Bolt gb21-m10*30-8.8 Y 9
3 4110002081065 压板DB55 302 020 Washer Y 1
4 4015000025 垫圈GB93-10-65Mn Spring washer Y 9
5 4110002081066 调整垫圈DB55 351 004 Shim Y 1
6 4110002081067 端盖DB55 351 003 Cover Y 1
7 4110000038048 纸垫ZL20-030002 Paper pillow Y 1
8 4021000167 P轴承GB297-32207 Bearing Y 2
9 4110002081068 轴DB55 351 001 Clutch shaft Y 1
10 4110002081069 齿轮DB55 351 002 Gear Y 1
11 4110002081045 圆柱销8m6×22 GB/T119.1-2000 Pin Y 2
12 4011000082 螺栓GB5783-M10*25EpZn-8.8 Bolt Y 8
13 4110002081044 止动片DB55 302 016 Retaining plate Y 4
14 4110002081055 弹簧DB55 302 012 Spring Y 1
15 4110002081047 离合器外壳座DB55 302 005 Housing Y 1
16 4110002081048 离合器外壳DB55 302 007 Closure Y 1
17 4110000038191 阀座 ZL20-032109 Seat Y 1
18 4090000126 钢球GB308-5-GCr15 Ball Y 1
19 4030001255 P-O形圈GB3452.1-45*2.65G O-ring Y 1
20 4110002081049 封油圈DB55 302 009 Sealing ring Y 1
21 4110002081050 活塞DB55 302 008 Piston Y 1
22 4110002081051 内摩擦片DB55 302 024 Friction disc Y 9
23 4110002081052 外摩擦片DB55 302 023 Friction disc Y 10
24 4110000076190 承压板4642308185 Anchor plate Y 1
25 4110002081054 弹性挡圈0730 513 415 Retaining ring N 1
26 4110002081056 弹簧挡板DB55 302 011 Baffle Y 1
27 4110002081057 轴用挡圈45DB55 302 019 Retaining ring Y 1
28 4021000009 滚动轴承GB276-6008 Ball bearing Y 2
29 4110002081058 孔用挡圈68 DB55 302 015 Retaining ring Y 1
30 4110002081059 齿轮DB55 302 006 Gear Y 1

31 4110002081060 轴套DB55 302 013 Bushing Y 1
32 4110002081061 调整轴套DB55 302 014 Bushing Y 1
33 4110002081062 内封油环DB55 302 010 Sealing ring Y 1
34 4110000038198 活塞环(Φ52)CA10-350914-A Piston ring Y 2
35 4110002081070 进油端盖DB55 302 017 Cover Y 1
36 4110000038145 外封轴套 ZL20-035002 Bushing Y 1
37 4110002081071 内六角螺塞1/8″ Q20-02 Plug Y 2
38 4110002081064 纸垫DB55 302 018 Sealing ring Y 1
39 4110000038175 闷塞 ZL20-032009 9 Plug Y 1
40 4110000038199 轴端档板 Zl20-032002A Cover plate Y 1
41 4110000038203 止动垫 ZL20-032001 Spacer Y 1
42 4110002081096 弹性挡圈A=2,25 0730 513 420 Retaining ring Y 1
43 4110002081097 弹性挡圈A=2,30 0730 513 419 Retaining ring Y 1
44 4110002081098 弹性挡圈A=2,35 0730 513 418 Retaining ring Y 1
45 4110002081099 弹性挡圈A=2,40 0730 513 417 Retaining ring Y 1
46 4110002081100 弹性挡圈A=2,45 0730 513 416 Retaining ring Y 1
47 4110002081101 弹性挡圈A=2,50 0730 513 180 Retaining ring Y 1
48 4110002081102 弹性挡圈A=2,20 0730 513 421 Retaining ring Y 1
49 4110002081103 弹性挡圈A=2,15 0730 513 455 Retaining ring Y 1

1 4110002081080 圆螺母M33×1.5 DB55 303 017 Round nut Y 2
2 4015000396 P-垫圈GB858-33 Washer Y 2
3 4110002081081 压板DB55 303 007 Washer Y 2
4 4030000237 O形圈GB3452.1-34.5*3.55G O-ring Y 1
5 4110002081082 法兰DB55 303 002 Bearing flange Y 1
6 4011000107 螺栓GB5783-M8*30EpZn-8.8 Bolt Y 6
7 4015000036 垫圈GB93-8-65Mn Spring washer Y 6
8 4110002081083 唇形密封圈FB60×80×8/F GB/T13871.1- Sealing ring Y 2
9 4110002081084 纸垫DB55 303 016 Sealing ring N 1
10 4110002081085 油封座DB55 303 009 Sealing retainer Y 1
11 4110002081086 调整垫片DB55 303 010 Shim Y 1
12 4021000171 P轴承GB297-30308 Roller bearing Y 2
13 4110002081087 齿轮DB55 303 006 Gear Y 1
14 4110002081088 轴套DB55 303 004 Bushing Y 1
15 4110002081089 输出轴DB55 303 001 Output shaft Y 1
16 4110002081090 轴套DB55 303 005 Bushing Y 1
17 4030000030 O形圈GB3452.1-40.0*2.65G O-ring Y 2
18 4110002081091 纸垫DB55 303 015 Sealing ring Y 1
19 4014000134 螺钉GB70.1-M10*30EpZn-8.8 Screw Y 8
20 4015000525 E-垫圈GB93-10flZnyc-480 Washer Y 8
21 4110002081092 唇形密封圈FB50×70×8 GB/T13871.1- Sealing ring Y 2
22 4110002081093 油封盖DB55 303 008 Cover Y 1
23 4110002081094 法兰DB55 303 003 Bearing flange Y 1

1 4110002567 变速操纵机构LG918 Control mechanism Y 1
2 4011000807 螺栓GB16674-M8*12EpZn-8.8 Bolt Y 2
3 29060009891 支架 Bracket Y 1
4 29060009331 感应块 Block Y 1

1 4190002767001 换挡手球LGH9180001 Handle ball Y 1
2 4190002767002 高低速手球LGH9180002 Handle ball Y 1
3 4110002149001 换挡手柄焊合LGH9180003 Connecting rod Y 1
4 4190002767004 高低速手柄焊合LGH9180004 Connecting rod Y 1
5 4120000084073 垫圈6 GB/T93-1987 Washer 6 gb/t93-1987 Y 2
6 4190002767006 M6×1-25螺栓LGH9330007 Bolt N 1
7 4190002767007 M6×1-30螺栓LGH9180005 Bolt N 1
8 4110002567001 齿轮轴组合件4110002567-01 Shaft Y 1
9 4190002767009 连接颈LGH9180007 Link Y 1
10 4110001119010 M6-7沉头螺栓GB/T819.2 Screw Y 3
11 4110002567002 换挡盒焊合件4110002567-02 Box Y 1
12 4190002767011 齿条LGH9180009 Gear rack Y 2
13 4190002767016 φ8钢珠GZ-001 Ball N 2
14 4110002149005 弹簧LGH93300010 Spring Y 2
15 4190002767018 M12×1.25螺母RM-008-01 Nut rm-008-01 m12×1.25 N 2
16 4190002767019 M12×1.25-15螺栓LGH9330009 Bolt N 2
17 4110002567003 高低速软轴总成LGHR9180003 Control cable Y 1
18 4110002567004 前进后退软轴总成LGHR9180004 Control cable Y 1
