Description

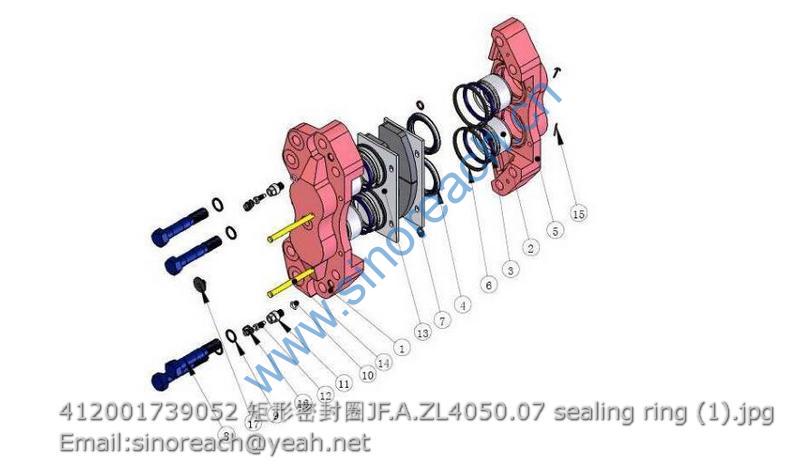

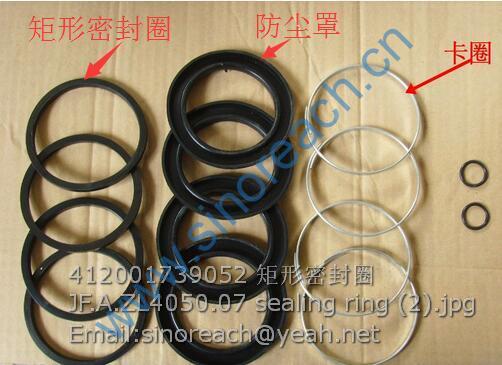

412001739052 sealing ring JF.A.ZL4050.07
| 29100001021 | 液压油箱 | HYDRAULIC TANK |
| 4030000130 | O形圈GB3452.1-47.5*3.55G | O-RING GB3452.1-47.5*3.55G |
| 4011000479 | 螺栓GB16674-M12*30EpZn-8.8 | BOLT GB16674-M12*30EpZn-8.8 |
| 29100001361 | 回油钢管 | STEEL TUBE |
| 29100001041 | 法兰盖 | PLANGED CAP |
| 4030000234 | O形圈GB3452.1-212*5.30G | O-RING GB3452.1-212*5.30G |
| 4041000192 | 螺塞LGB135-03341 | THREAD PLUG LGB13503341 |
| 4030000265 | O形圈GB3452.1-28.0*3.55G | O-RING GB3452.1-28.0*3.55G |
| 4190000008 | 环形磁铁LG03-CT76*32*15 | ANNULAR MAGNET 76*32*15 |
| 4011000082 | 螺栓GB5783-M10*25EpZn-8.8 | BOLT GB16674-M10*25EpZn-8.8 |
| 4015000130 | 挡圈GB894.1-25-65Mn | RING SNAP GB894.1-25-65Mn |
| 29020001071 | 垫圈 | WASHER |
| 29020001051 | 合页 | JOIN LEAF |
| 29020001061 | 销轴 | PIN |
| 4030000065 | 油杯JB7940.1-M10*1 | GREASE FITTING JB7940.1-M10*1 |
| 4030000232 | O形圈GB3452.1-170*3.55G | O-RING GB3452.1-170*3.55G |
| 29100000041 | 回油法兰盖 | PLANGED CAP |
| 29100000051 | 弹簧 | SPRING |
| 29100001051 | 回油滤芯 | STRAIN CORE |
| 4011000458 | 螺栓GB16674-M8*20EpZn-8.8 | BOLT GB16674-M8*20EpZn-8.8 |
| 4030000303 | O形圈GB3452.1-195*3.55G | O-RING GB3452.1-195*3.55G |
| 4041000156 | 停用-螺塞LGB135-01421 | THREAD PLUG LGB13501421 |
| 4030000238 | O形圈GB3452.1-11.2*2.65G | O-RING GB3452.1-11.2*2.65G |
| 29100001061 | 吸油法兰 | FLANGE |
| 4120001088 | 换气过滤器L1.0807-31 | GAS-EXCHANGE FILTER L1.0807-31 |
| 29100007691 | 法兰盖 | PLANGED CAP |
| 4030000233 | O形圈GB3452.1-65.0*3.55G | O-RING GB3452.1-65.0*3.55G |
| 4120000093 | 液位计YWZ-200 | OIL LEVEL YWZ-200 |
| 4011000148 | 螺栓GB16674-M16*40EpZn-8.8 | BOLT GB16674-M16*40EpZn-8.8 |
| 4011000137 | 螺栓GB16674-M12*20EpZn-8.8 | BOLT GB16674-M12*20EpZn-8.8 |
| 29020001301 | 下踏板 | DOWN FOOTPLATE |
| 4120000452 | 加油滤芯SFM-323M | OIL-SUPPLYING STRAIN SFM-323M |
| 4011000461 | 螺栓GB16674-M8*16EpZn-8.8 | BOLT GB16674-M8*16EpZn-8.8 |
| 29100001091 | 法兰 | PLANGE |
