Description

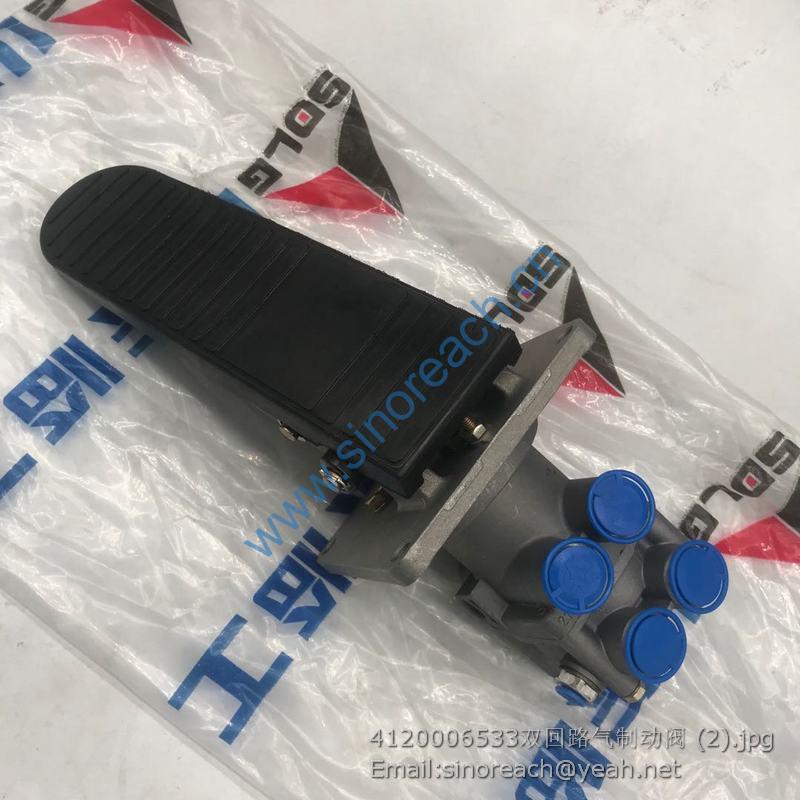

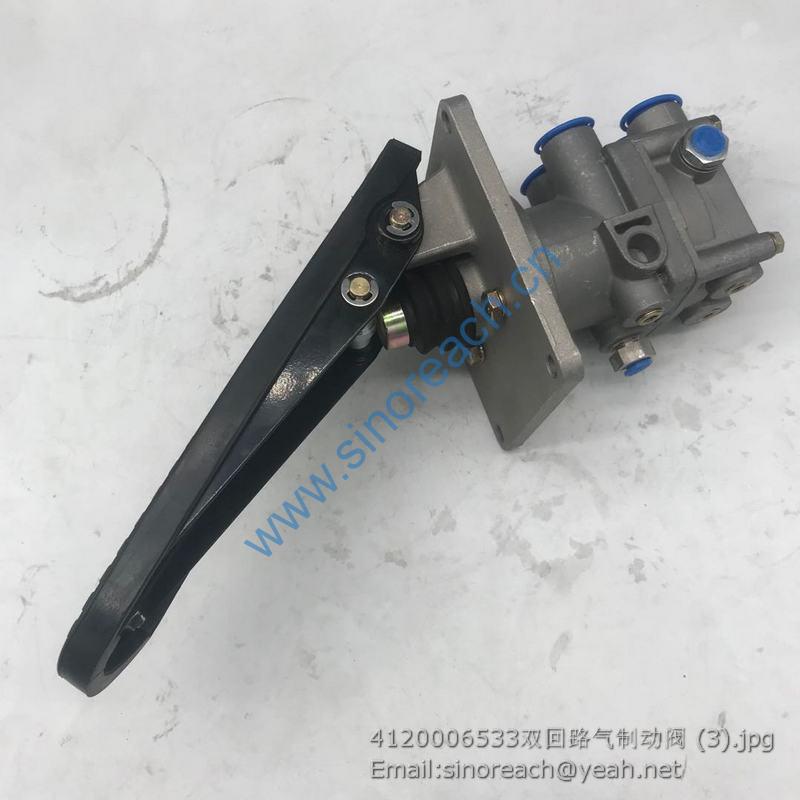

4120006533 Air brake valve

29040007711 OIL TUBE
4015000026 WASHER GB93-12-65Mn
4011000091 BOLT GB5783-M12*40EpZn-8.8
29040007581 OIL TUBE
kongbai
kongbai
4011000475 BOLT GB16674-M10*30EpZn-8.8
4030000024 O-RING GB3452.1-26.5*2.65G
29040007741 COVER
29040007531 PIPE
4011000527 BOLT GB16674-M8*45EpZn-8.8
4011000481 BOLT GB16674-M8*30Ep.Zn-8.8
4030000279 O-RING GB3452.1-25*3.55G
4110000160 TORQUE CONVERTER YJSW315-2A
4120000125 JOINT BODY GB3733.2-G28EpZn-35
4030000013 O-RING GB1235-32*3.1
B2-4110000160 TORQUE CONVERTER
4110000011081 STATOR SEAT YB315Z5-13A
4110000011082 SEAL RING YB315Z5-33
4110000011083 SEAL RING YB315Z5-12
4110000011084 SPRING WASHER YB315Z5-25
4110000011085 HOUSING YB315Z5-08A
4110000011086 BOLT M8*16 01010-50816
4110000011087 WASHER 801602-10825
4110000011088 FILLER YB315Z5-06A
4110000011089 SPACER YB315Z5-07
4110000011090 GEAR YB315Z5-11B
4021000076 BEARING GB276-6017
4110000160075 BOLT M8*35 01010-50835
4110000160046 PUMP WHEEL 1YJSW315-2A-00007
4110000518002 NUT 01580-00806 M8
4110000011094 COMPRESSING SHIM YB315Z5-22A
4110000160040 GUIDING WHEEL 1YJSW315-2A-00006
4110000518004 RETAINER RING 04064-08530 85
4110000160076 Ⅱ TURBINE HUB YJSW315-2A-11001-2
4110000160077 Ⅱ TURBINE YJSW315-2A-11001-1
4110000011096 ADJUSTING SHIM YB315Z5-30/31/32
4110000160078 ⅠTURBINE YJSW315-2A-10001
4110000011125 RETAINER RING 52 YB315Z5.1-5
4021000155 BEARING 6013
4011000663 BOLT GB21-M10*25EpZn-8.8
4110000011097 WASHER 10 01602-11030
4110000359052 JOINT 1YB315Z5-10L
4110000011098 PIPE JOINT YB315Z5-14L
4015000209 WASHER JB982-30
4110000359015 PLUG SCREW 1YB315Z5-15L①
4110000011100 VALVE CAP YB315Z5-17A
4110000011107 ADJUSTING SHIM YB315Z5-28.29
4110000011101 SPRING YB315Z5-18A
4110000011102 ADJUSTING SHIM YB315Z5-16.21
4110000011103 VALVE ROD YB315Z5-26A
4110000011105 PRESS PLATE YB315Z5-19A
4110000011106 SPRING YB315Z5-20
4110000011129 PIPE JOINT YB315Z5-24K
4110000518010 TURBINE HUB YJSW315-6C-12001
4110000160079 TURBINE CAP YJSW315-6C-12002
4021000018 BEARING GB276-6210
4110000011134 PIN YB315Z5.1-4A
4030000465 O-RING GB3452.1-355*3.55
4110000194001 CAP WHEEL YJSW315-2A-00002
4110000194007 BOLT M12*70-01010-51270
4110000194006 NUT M12-01580-11210
4110000217060 WASHER 01602-11236 12
4110000160056 MEDIUM KNOT 1YJSW315-2A-00001
4110000194008 COVER PLATE YJSW315-2A-00004
4110000194009 PAD YJSW315-2A-00005
4110000160059 TRANSITION SHAFT 1YJSW315-2A-20000
4110000160080 BOLT M12*45 01010-61245
4110000011113 ADJUSTING SHIM YB315Z5-34
4110000011114 ELASTIC PLATE ASSEMBLY YJSW315-20000
4110000011115 ELASTIC PLATE
4110000011116 RING PALLET YB315Z5-04
4110000160081 BOLT M12*30 01010-61230
7200000846 RIVET 3*6 04418-03060
4110000160082 NAME PLATE YJSW315-2A-BP01
4110000011118 MAT YB315Z5-05
4110000160072 TURBINE UNIT 1YJSW315-2A-10000
B4-4110000507 CLEANER QF60M33G-1（410708）
4110000507002 UPPER SHELL PYQ120A-001
4110000507003 VALVE SFM360-300
4110000507004 CUSHION RUBBER PYQ120A-002W
4110000508 FILTER CORE
4110000507005 LOWER SHELL PYQ120A-200
4014000128 SCREW GB70-M8*25EpZn-8.8
4015000036 WASHER GB93-8-65Mn
C1-2905001074 TRANSMISSION ASSEMBLY
4011000174 BOLT GB21-M10*70EpZn-8.8
4015000025 WASHER GB93-10-65Mn
4120000064 SHIFT CONTROL VALVE LG03-BSF
29050011381 GASKET
4120000125 JOINT BODY GB3733.2-G28EpZn-35
4030000013 O-RING GB1235-32*3.1
4120000345 PLUG SCREW Q/ZB286-ZG1/2″-Q235A
4014000030 SCREW GB825-M20EpZn-20
29050000061 PERMEABILITY CELL
29050000051 COVER ASSEMBLY
29050011361 GASKET
29050011371 GASKET
3030900207 FULCRUM BEARING
3030900098 BOTT
4011000048 BOLT GB5782-M10*50EpZn-8.8
4011000052 BOLT GB5782-M10*75EpZn-8.8
