Description

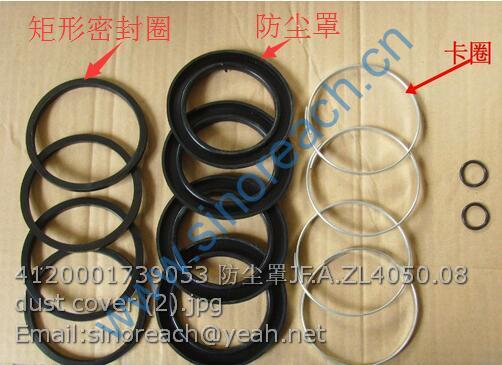

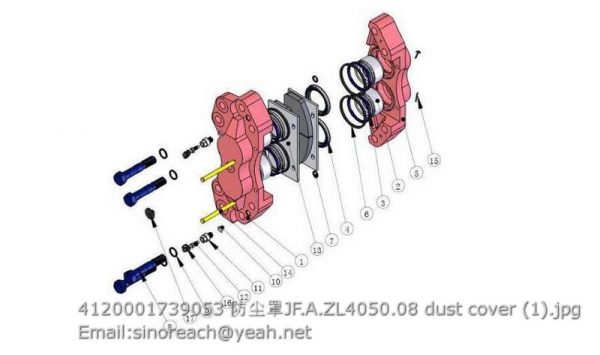

4120001739053 DUST COVER JF.A.ZL4050.08
| 4011000431 | 螺栓 GB5785-M12*1.25*50EpZn-8.8 | BOLT GB5785-M12*1.25*50EpZn-8.8 |
| 4015000026 | 垫圈 GB93-12-65Mn | WASHER GB93-12-65Mn |
| 2908000002 | 前传动轴 | FRONT DRIVE SHAFT GROUP |
| 4011000241 | 螺栓 GB5785-M14*1.5*55EpZn-8.8 | BOLT GB5785-M14*1.25*50EpZn-8.8 |
| 4013000073 | 螺母 GB889.2-M14*1.5EpZn-8 | NUT GB889.2-M14*1.5EpZn-8 |
| 4015000177 | 垫圈 GB97.1-14EpZn-300HV | WASHER GB97.1-14EpZn-300HV |
| 2908000003 | 中间支承 | MIDDLE BRAKET |
| 2908000004 | 中间传动轴 | MIDDLE DRIVE SHAFT GROUP |
| 2908000005 | 后传动轴 | REAR DRIVE SHAFT GROUP |
1 4019000025 铆钉GB827-3*10-BL2 Rivet Y 2
2 29050014191 保护板 Guard plate Y 1
3 29050014781 盖板 Cover plate Y 1
4 29050016141 透气管 Tube Y 11 29050014812 取力器壳 Gear housing Y 1
2 4021000156 轴承6014 Bearing Y 2
3 29050014881 齿轮 Gear Y 1
4 29050014891 轴 Shaft Y 1
5 29050014831 盖塞 Cap plug Y 1
6 4030000807 O形圈GB3452.1-109*3.55G-FPM O-ring Y 1
7 29050014841 喷嘴 Jet Y 1
8 4030000056 垫圈JB1002-12-T2 Washer Y 1
9 29050014861 盖 Cover Y 1
10 29050013611 垫片 Shim Y 4
11 4011000082 螺栓GB5783-M10*25EpZn-8.8 Bolt Y 41 29050013801 KFR轴 Clutch shaft Y 1
2 29050014061 挡圈54 Retaining ring Y 2
3 29050013811 止推垫片 Shim Y 2
4 4110000628 轴承NTA-3446 Bearing Y 4
5 29050014041 止推垫片 Shim Y 4
6 4110000625 轴承WJ-344016 Bearing Y 4
7 29050013821 齿轮总成R11 Gear Y 1
8 29050013931 止推垫片 Shim Y 2
9 29050013951 隔离环 Spacer ring Y 2
10 29050013881 活塞 Piston Y 2
11 29050013991 卡环 Retaining ring Y 2
12 29050013891 隔离架 Separator Y 1
13 29050014001 活塞环 Piston ring Y 2
14 29050013971 活塞环 Piston ring Y 2
15 29050013861 主动摩擦片 Friction disc Y 18
16 29050013871 从动摩擦片 Friction disc Y 6
17 29050015511 从动摩擦片 Friction disc Y 12
18 29050013851 受压盘 Pressure disc Y 2
19 29050013841 卡环 Retaining ring Y 2
20 29050013831 卡环 Retaining ring Y 2
21 29050013901 齿轮总成R12 Gear Y 1
22 4030000820 O形圈GB3452.1-82.5*3.55G-FPM O-ring Y 1
23 29050013241 调整垫片 Shim Y 2
24 29050013251 调整垫片 Shim Y 4
25 29050013261 调整垫片 Shim Y 6
26 29050014201 直接头 Nipple Y 1
27 4040000019 O形圈LGB168-21324 O-ring Y 1
28 4041000132 直接头LGB120-02220 Nipple Y 2
29 4041001270 O形圈LGB168-21724 O-ring Y 2
30 4041000775 O形圈LGB168-21124 O-ring Y 2
