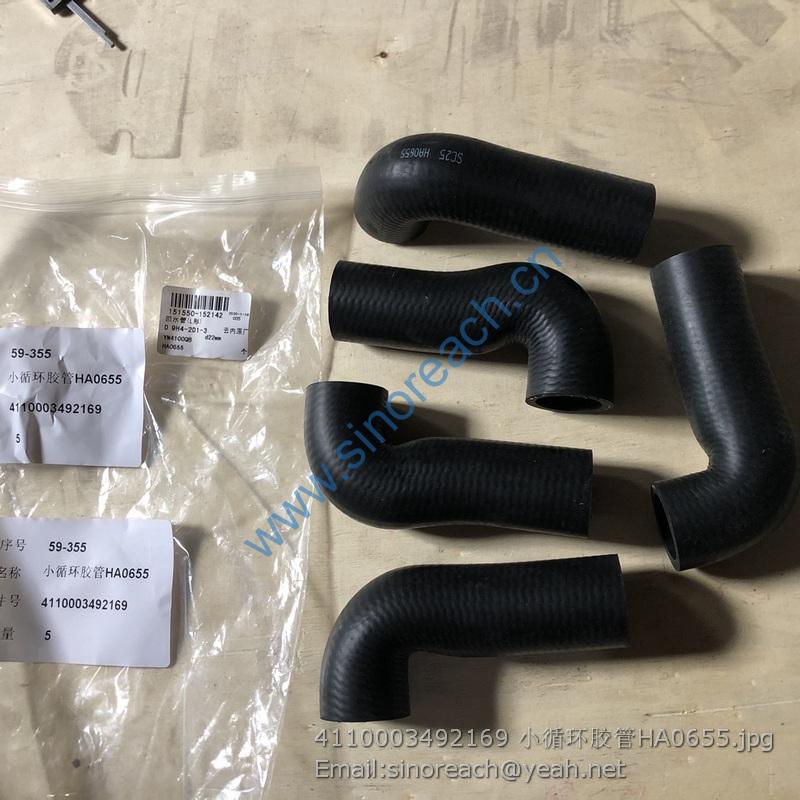

4110003492169 HA0655 hose

1 29090013331 轮边减速器 Hub reduction N 2
2 4011001319 螺栓GB5786-M20*1.5*50flZnyc-8.8-480 Screw Y 20
3 4015000030 垫圈GB93-20-65Mn Spring washer Y 20
4 29070001071 制动盘 Brake disc Y 2
5 29090008481 半轴 Shaft half Y 2
6 29090011401 后桥标牌 Name plate N 1
7 4019000012 铆钉GB827-3*5-BL2 Rivet Y 4
8 29070021441 磁性螺塞 Plug Y 2
9 29090013342 桥壳总成 Axle casing Y 1
10 29090013352 主传动总成 Final drive Y 1
11 4011001452 螺栓GB5786-M16*1.5*45flZnyc-10.9-480 Bolt Y 18
12 29070009511 垫圈 Washer Y 18
13 29050023122 销 Pin Y 2
14 29070023071 透气嘴 Breather cap Y 1
15 29070021631 螺栓 Screw Y 16
16 29070011121 垫圈 Washer Y 16
17 4120001739 制动钳 Brake caliper Y 4
18 4120001740 放气嘴 Nipple Y 8
19 29070021431 轮辋螺母M20 Nut Y 20
20 4013000425 螺母GB6173-M10*1flZnyc-05-480 Nut Y 1

1 29070021481 锁紧螺母M33 Lock nut Y 1
2 29070000221 垫圈 Washer Y 1
3 29070000231 输入法兰 Connection flange Y 1
4 4030001002 密封圈GB13871.1-FB08010010-D Sealing ring Y 1
5 4030000789 密封圈GB13871.1-FB08010012-F Sealing ring Y 1
6 4011001318 螺栓GB5782-M14*55flZnyc-8.8-480 Screw Y 7
7 29090007961 垫圈 Washer Y 7
8 29070000251 密封盖 Sealing cover Y 1
9 4021000030 滚动轴承GB297-31313 Roller bearing Y 1
10 29070000271 轴承座 Bearing seat Y 1
11 4021000032 滚动轴承GB297-31314 Roller bearing Y 1
12 29070023342 托架总成 Centre housing Y 1
13 4021000036 滚动轴承GB297-32216 Roller bearing Y 2
14 29070000351 调整螺母 Nut Y 2
15 29070019611 差速器总成 Differential spider Y 1
16 29070000401 锁紧片 Lock washer Y 2
17 4011000597 螺栓GB5786-M10*1*20EpZn-8.8 Bolt Y 2
18 4015000025 垫圈GB93-10-65Mn Spring washer Y 2
19 4021000027 滚动轴承GB283-NUP2307 Roller bearing Y 1
20 4015000020 挡圈GB894.1-35-65Mn Retaining ring Y 1
21 29070009501 螺栓 Bolt Y 12
22 4013000198 螺母GB6176-M16*1.5-10 Nut Y 12
23 29070009511 垫圈 Washer Y 18
24 29090008841 主动螺旋伞齿轮（右） Crown wheel N 1
25 29070022561 隔套 Sleeve Y 1
26 29070022481 调整垫片 Shim Y 1
27 29070026211 调整垫片 Shim Y 1
28 29070022501 调整垫片 Shim Y 1
29 29070026221 调整垫片 Shim Y 1
30 29070022521 调整垫片 Shim Y 1

31 29070022531 调整垫片 Shim Y 1
32 29070022541 调整垫片 Shim Y 1
33 29070026231 调整垫片 Shim Y 1
34 29070000151 调整垫片 Shim Y 3
35 29070000161 调整垫片 Shim Y 4
36 29070000171 调整垫片 Shim Y 5
37 29070000261 密封垫 Gasket Y 1
38 4011001281 螺栓GB5782-M12*55flZnyc-8.8-480 Screw Y 1
39 29070015981 垫圈 Washer Y 1
40 4030000035 O形圈GB3452.1-53.0*5.30G O-ring Y 1
41 29070000241 挡圈 Retaining ring Y 1
42 29090008511 从动螺旋伞齿轮（左） Crown wheel N 1
43 29070000641 油封压盖 Cover Y 1
44 29070000631 输入法兰 Connection flange Y 1
45 29070000331 锥齿轮垫片 Thrust washer Y 4
46 29070000341 锥齿轮 Differential pinion Y 4
47 29070000431 差速器左壳 Differential housing N 1
48 29070013221 半轴齿轮 Differential side gear Y 2
49 29070000381 半轴齿轮垫片 Shim Y 2
50 29070009491 螺栓 Bolt Y 8
51 4013000198 螺母GB6176-M16*1.5-10 Nut Y 8
52 29070009511 垫圈 Washer Y 8
53 29070000411 十字轴 Spider Y 1
54 29070000361 差速器右壳 Differential housing N 1
55 29070000461 固定销 Pin Y 4
56 29070026241 调整垫片 Shim Y 1
57 29070026251 调整垫片 Shim Y 1

1 4011001321 螺栓GB5782-M8*45flZnyc-8.8-480 Screw Y 6
2 29050015471 垫圈8 Washer Y 6
3 29070001231 油封端盖 Sealing cover Y 1
4 29070001261 隔套 Spacer sleeve Y 1
5 29070001241 轮毂 Hub Y 1
6 29070021471 轮辋螺栓 Screw Y 10
7 4013000382 螺母GB6171-M20*1.5flZnyc-10-480 Nut Y 10
8 4015000030 垫圈GB93-20-65Mn Spring washer Y 10
9 4041000020 O形圈LGB308-440*3.5 O-ring Y 1
10 29070013111 内齿圈 Gear ring Y 1
11 29070021441 磁性螺塞 Plug Y 1
12 4011001249 螺栓GB5783-M10*30flZnyc-8.8-480 Screw Y 10
13 29050013611 垫片 Shim Y 10
14 29070007621 盖 Cover Y 1
15 29070009161 定位块 Block Y 1
16 4090000006 钢球GB308-17.462-GCr15 Ball Y 1
17 4015000022 挡圈GB894.1-52-65Mn Retaining ring Y 1
18 29070012671 太阳轮 Sun gear Y 1
19 29090010871 行星轮架总成 Planet gear kit Y 1
20 29070015581 圆螺母 Round nut Y 1
21 4014000016 螺钉GB70-M10*1*20EpZn-8.8 Screw Y 2
22 4021000037 滚动轴承GB297-32221 Roller bearing Y 1
23 4021000033 滚动轴承GB297-32024 Roller bearing Y 1
24 29070001271 垫片 Shim Y 1
25 4030000047 骨架油封HG4-692-PD150*180*16 Sealing ring Y 1
26 29070018192 防尘罩 Dust cap Y 1
27 29070012681 行星轮垫片 Shim Y 6
28 29070012701 挡环 Retaining ring Y 6
29 29070012711 行星齿轮 Planet gear Y 3
30 4090000158 滚针GB309-P6*54-GCr15 Needle roller Y 81
