Description

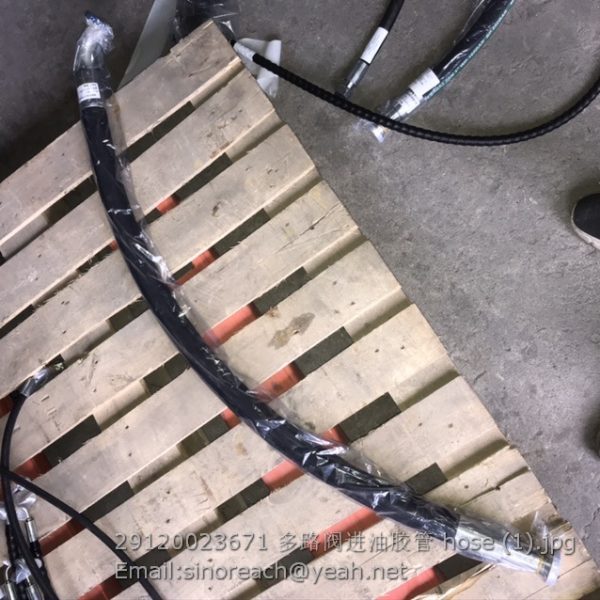

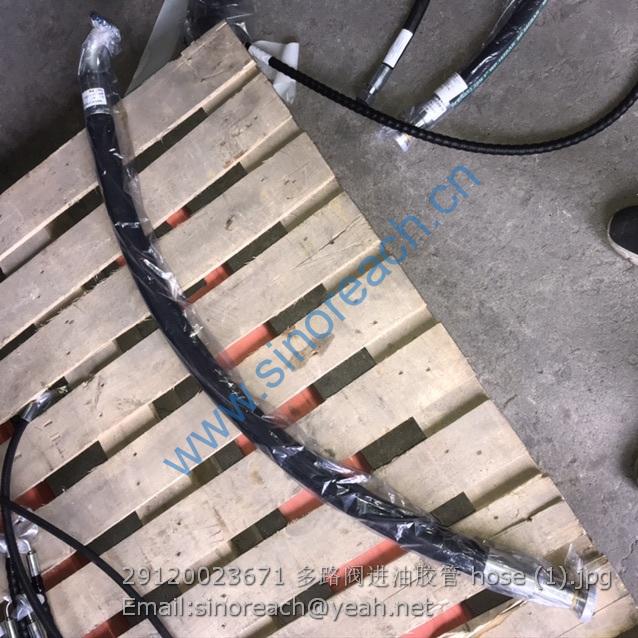

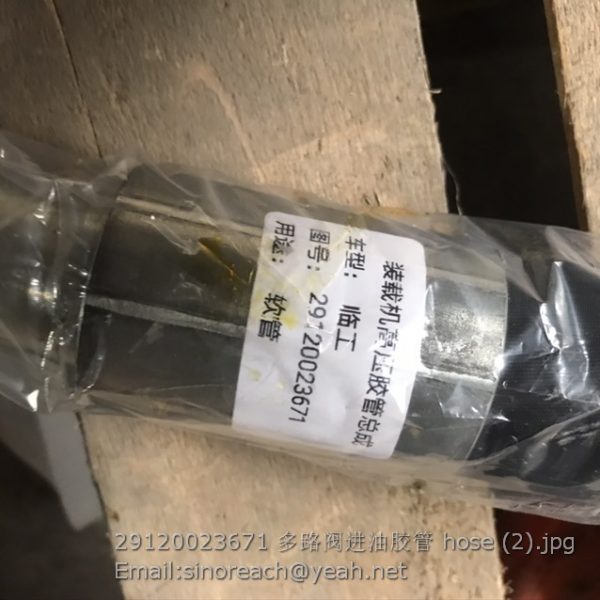

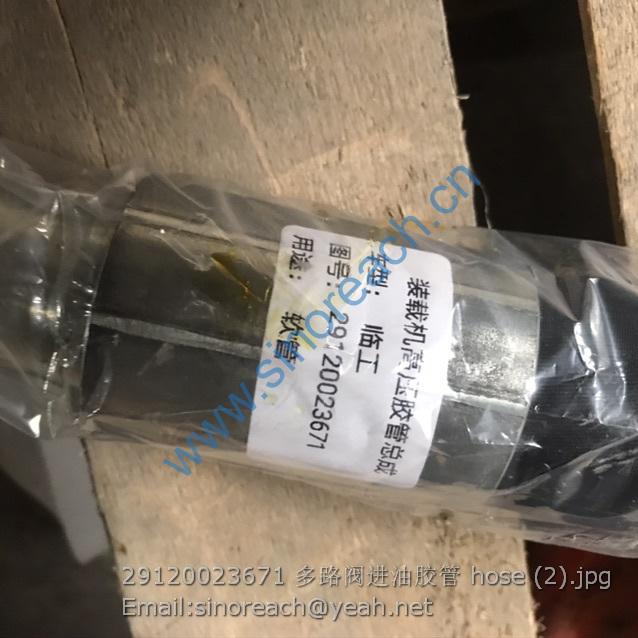

29120023671 hose SDLG

1 29120019601 管夹 Clamp Y 1
2 4011000447 螺栓GB16674-M10*20EpZn-8.8 Bolt Y 2
3 29120019611 固定板 Plate Y 1
4 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 10
5 29120020001 多路阀回油钢管 Pipe Y 1
6 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 4
7 4011000333 螺栓GB5783-M12*75EpZn-8.8 Screw Y 4
8 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 4
9 29120019561 多路阀固定板 Valve plate Y 1
10 4011000145 螺栓GB16674-M14*35EpZn-8.8 Bolt Y 4
11 4011001013 螺栓GB5782-M10*80EpZn-10.9 Screw Y 3
12 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 9
13 29120019991 进油钢管 Pipe Y 1
14 4011000478 螺栓GB16674-M12*55EpZn-8.8 Bolt Y 2
15 4011000793 螺栓GB16674-M12*65EpZn-8.8 Screw Y 2
16 29120019981 橡胶块支架 Bracket Y 1
17 4011000082 螺栓GB5783-M10*25EpZn-8.8 Bolt Y 5
18 4015000197 垫圈GB96.1-10EpZn-300HV Washer Y 4
19 29120022901 油路块总成 Block Y 1
20 4041000774 螺塞LGB135-01422 Plug Y 1
21 4041000767 O形圈LGB168-11124 O-ring Y 1
22 4041001899 软管LGB163-014098 Hose assembly Y 1
23 4011000477 螺栓GB16674-M12*35EpZn-8.8 Bolt Y 20
24 4041000011 分体法兰LGB117-314650 Flange half Y 4
25 4030000130 O形圈GB3452.1-47.5*3.55G O-ring Y 4
26 4013000007 螺母GB6170-M10EpZn-8 Nut Y 5
27 4120006566 多路阀KM300-II-21 Control valve Y 1
28 29120019571 多路阀支架 Bracket Y 1
29 29120019511 橡胶管夹-50 Clamp Y 2
30 29120019531 压板 Plate Y 1

31 4011000053 螺栓GB5782-M10*90EpZn-8.8 Bolt Y 2
32 29120023671 多路阀进油胶管 Hose assembly Y 1
33 4041000056 分体法兰LGB117-312550 Flange half Y 2
34 4041001957 软管LGB161-014159 Hose assembly Y 1

1 29190017231 转向泵吸油胶管 Hose Y 1
2 4017000013 喉箍JB8870-d90 Clamp Y 4
3 29190016171 转向泵吸油钢管 Pipe Y 1
4 4030000482 O形圈GB3452.1-50.0*3.55G O-ring Y 1
5 4011001375 螺栓GB16674.1-M12*30flZnyc-8.8-480 Bolt Y 4
6 4120005081 齿轮泵HGP3100/1016RC Gear pump Y 1
7 29110007541 泵用密封垫 Gasket Y 1
8 4012000082 螺柱GB898-M12*35flZnyc-8.8-480 Stud Y 4
9 4013000368 螺母GB6170-M12flZnyc-8-480 Nut Y 4
10 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 4
11 29190012151 接头 Nipple Y 1
12 4030000279 O形圈GB3452.1-25.0*3.55G O-ring Y 1
13 4011001277 螺栓GB16674.1-M8*35flZnyc-8.8-480 Screw Y 2
14 4011001279 螺栓GB16674.1-M8*50flZnyc-8.8-480 Screw Y 2
15 4041002852 软管LGB128-005185 Hose assembly Y 1
16 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 4
17 4041001063 组合接头LGB143-01810 Nipple Y 1
18 4120007563 接头GE25S15/8UNOMDCF Nipple Y 1
19 29190015001 三通接头 Three-way nipple Y 1
20 4041000041 堵塞LGB142-02208 Plug Y 1
21 4030000242 O形圈GB3452.1-12.5*1.80G O-ring Y 1
22 29190017221 优先阀进油胶管 Hose assembly Y 1
23 4041000056 分体法兰LGB117-312550 Flange half Y 1
24 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 1

1 4120005082201 前盖163A002T Cover N 1
2 4120005081201 HPT3/124E类泵体163E375T Pump body N 1
3 4120005081202 一级主齿163F390T Drive shaft N 1
4 4120005081203 一级从齿163G027T Shaft N 1
5 4120005081204 接轴163H004T Shaft N 1
6 4120005082209 侧板163J002T Side board N 2
7 4120005082210 孔用弹性挡圈565C-00016 Retaining ring N 1
8 4120005082211 外置轴承W58-48 Beaing N 1
9 4120005082212 油封W62-26-10 Sealing ring N 1
10 4120005082213 滑动轴承002B005T Plain bearing N 4
11 4120005082214 堵油螺钉S-0280 Screw N 1
12 4120005082215 圆柱销008A0006 Pin N 2
13 4120005082216 O型密封圈001E0006 O-ring N 1
14 4120005082217 E型密封圈006E003T Sealing ring N 2
15 4120005082218 E型挡圈007E002T Retaining ring N 2
16 4120005081205 双头螺柱002A0016 Stud N 4
17 4120005082220 螺母004A0004 Nut N 4
18 4120005082221 垫圈W033-2 Washer N 4
19 4120005081206 后盖592C-01122-2035 Cover N 1
20 4120005081207 泵体577-01109-07 Pump body N 1
21 4120005081208 二级主齿996C-L0039-07DR Drive shaft N 1
22 4120005081209 二级从齿996-01103-071D Shaft N 1
23 4120005081210 侧板947-01105 Side board N 2
24 4120005081211 滑动轴承921-01108 Plain bearing N 4
25 4120005081212 圆柱销280-1971-071 Pin N 4
26 4120005081213 方型密封圈TA-2995-152 Sealing ring N 2
27 4120005081214 Ｅ型密封圈947-01107 Sealing ring N 2
28 4120005081215 Ｅ型挡圈947-01106 Retaining ring N 2
29 4120005081216 螺栓W1-11 Screw N 4
30 4120005081217 垫圈W033-1 Washer N 4
