Description

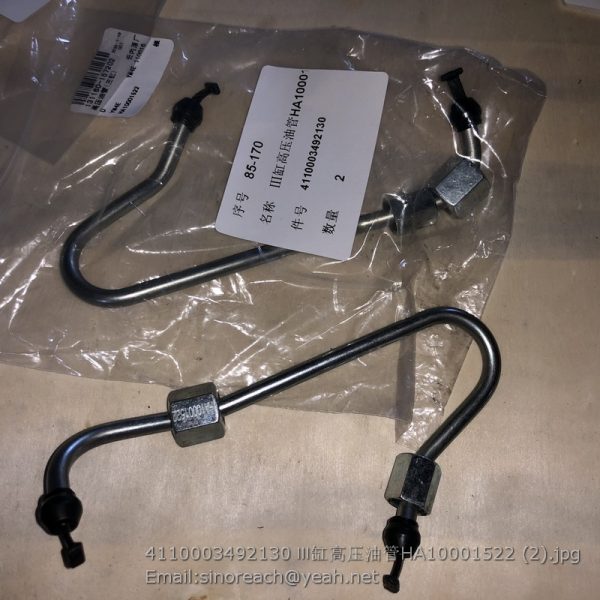

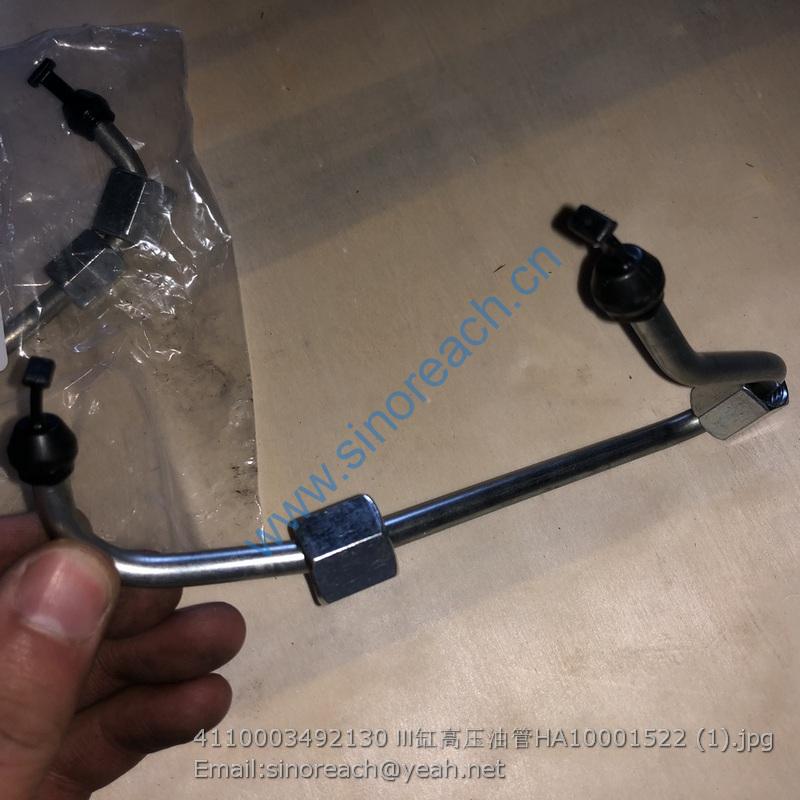

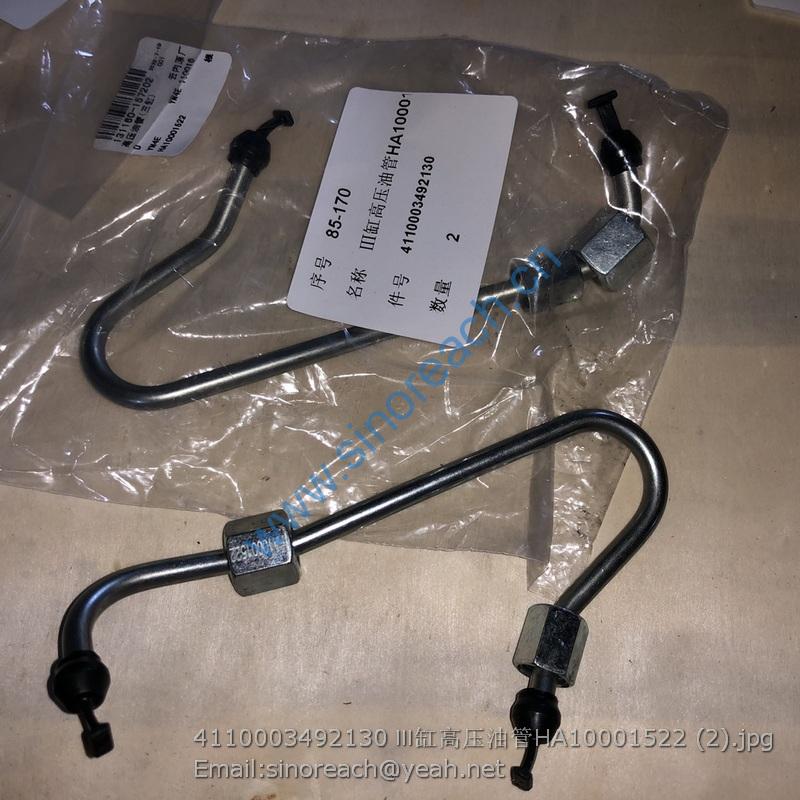

4110003492130 Ⅲ High-pressure pipeline HA10001522
1 4110000924066 六角头螺栓90003802438 Screw Y 4
2 4110000556056 观察孔盖61567G3-5010001 Inspection cover Y 1
3 4110000556205 橡胶密封垫61567G3-5010002 Gasket Y 1
4 4110000556046 飞轮壳螺栓61500010062 Screw Y 7
5 4110000556047 飞轮壳螺栓61500010101 Screw Y 6
6 4110000924067 方头锥形螺塞90017010007 Plug Y 1
7 4110001015010 飞轮壳612600012851 Flywheel housing Y 1
8 4110000591039 圆柱销90003901604 Pin Y 2
9 4110000924006 螺塞612600012744 Plug Y 1
1 4110000556136 密封圈61000010134 Sealing ring Y 1
2 4110000556009 O型密封圈288730061 O-ring Y 1
3 4110001015016 正时齿轮室612600011783 Timing gear casing Y 1
4 4110000924061 六角法兰面承面带齿螺栓90011430008 Screw Y 3
5 4110000924062 六角法兰面承面带齿螺栓612600013483 Screw Y 5
6 4110001015115 六角螺塞90003962051 Plug Y 2
7 4110000556052 复合垫圈612600010735 Washer Y 2
8 4110000557022 前油封61500010037 Sealing ring Y 1 4090000363 胶管HG2491-16*3000 Hose Y 1
2 4090000169 胶管HG2491-16*2800 Hose Y 1
3 4017000024 环箍QC390-D26 Clamp Y 6
4 4013000007 螺母GB6170-M10EpZn-8 Nut Y 8
5 4015000025 垫圈GB93-10-65Mn Spring washer Y 8
6 4012000021 螺柱GB899-AM10*1-M10*35-8.8 Stud Y 8
7 4110004071 发动机总成 Engine Y 1
8 29030010811 管夹 Clamp Y 2
9 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 2
10 4017000010 喉箍JB8870-d20 Clamp Y 4
11 29010059971 上盖板 Cover plate Y 1
12 4011001238 螺栓GB5783-M10*20flZnyc-8.8-480 Screw Y 10
13 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 6
14 4110001754 排气尾管 Pipe Y 1
15 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 4
16 4041002384 管夹LGB169-A25*12.5 Clamp Y 2
17 4011000137 螺栓GB16674-M12*20EpZn-8.8 Bolt Y 2
18 4120000067 暖风机水阀LG12-NFJSF Valve Y 2
19 29010024431 垫圈124 Washer Y 2
20 4013000160 螺母GB889.2-M20*1.5EpZn-8 Lock nut Y 2
21 4015000176 垫圈GB97.1-20EpZn-300HV Washer Y 2
22 4011000918 螺栓GB5785-M20*1.5*125EpZn-8.8 Bolt Y 2
23 4110001528 减震器CBB120 Absorber Y 4
24 4043002350 软管LGB334-13*1200E Hose Y 1
25 4041002412 管夹LGB169-A20*10 Clamp Y 1
26 4011000488 螺栓GB16674-M10*16EpZn-8.8 Bolt Y 1
27 4043002683 软管LGB334-13*1800E Hose Y 1
28 29220000171 垫圈 Washer Y 2
29 4120000750 金属软管 Tube Y 1
30 29010067451 发动机放油模块 Block N 1
1 29330074231 上盖 Cover Y 1
2 29330074251 盖板 Cover Y 1
3 4013000230 螺母GB62.1-M8EpZn Wing nut Y 1
4 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 1
5 4013000189 螺母GB889.1-M10EpZn-8 Lock nut Y 1
6 26330005521 弹簧 Spring Y 1
7 4011001479 螺栓GB5783-M10*50flZnyc-8.8-480 Screw Y 1
8 4015000197 垫圈GB96.1-10EpZn-300HV Washer Y 3
