Description

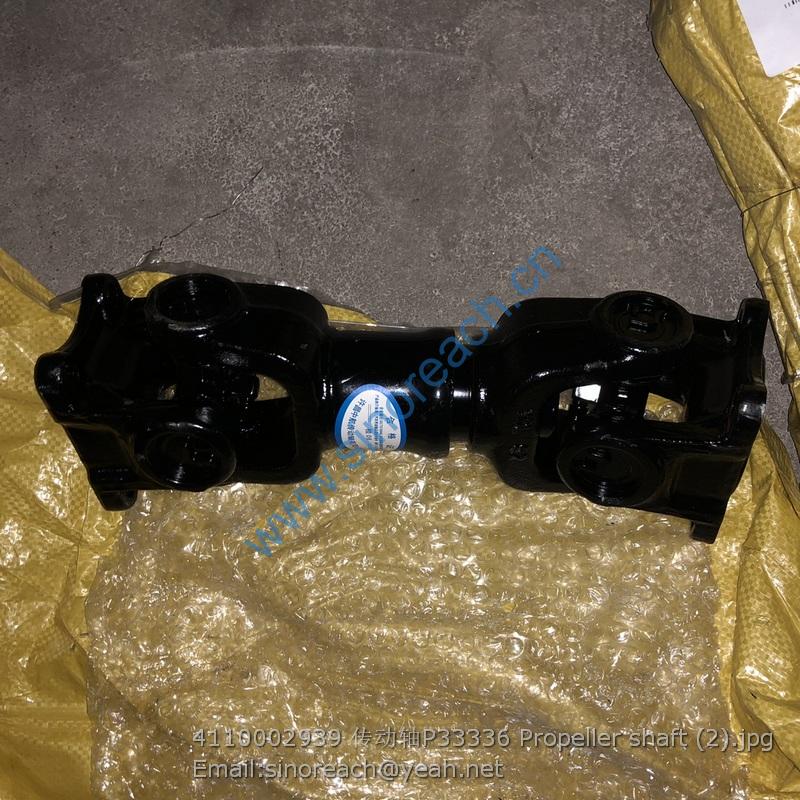

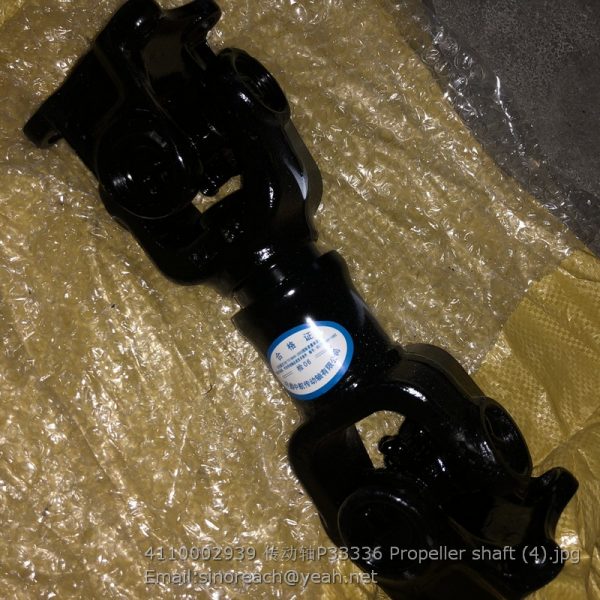

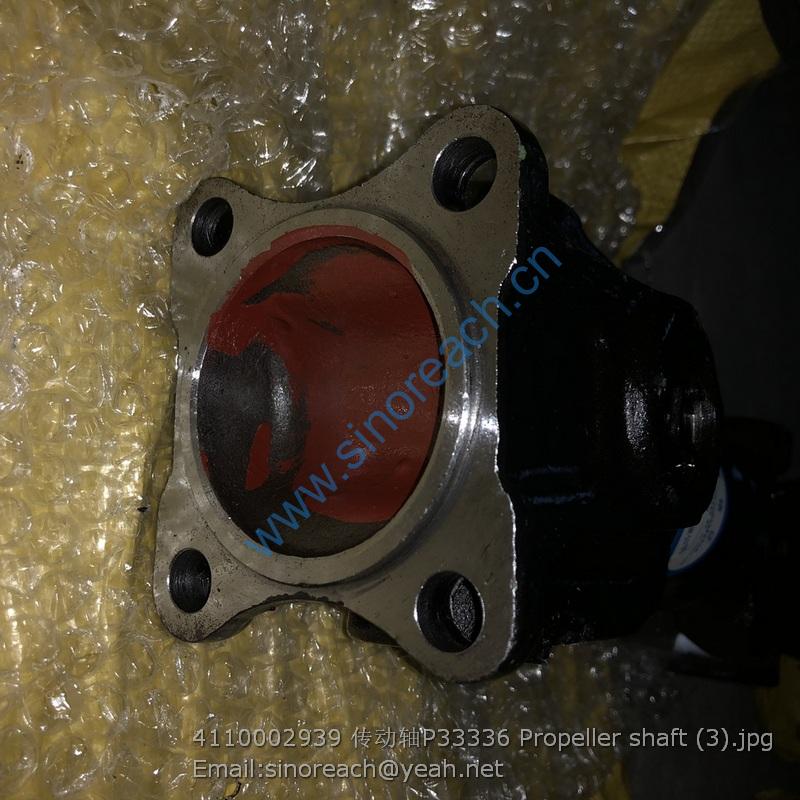

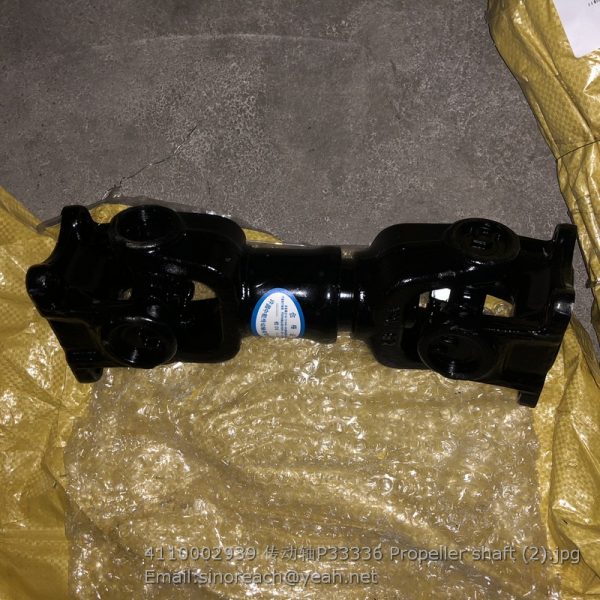

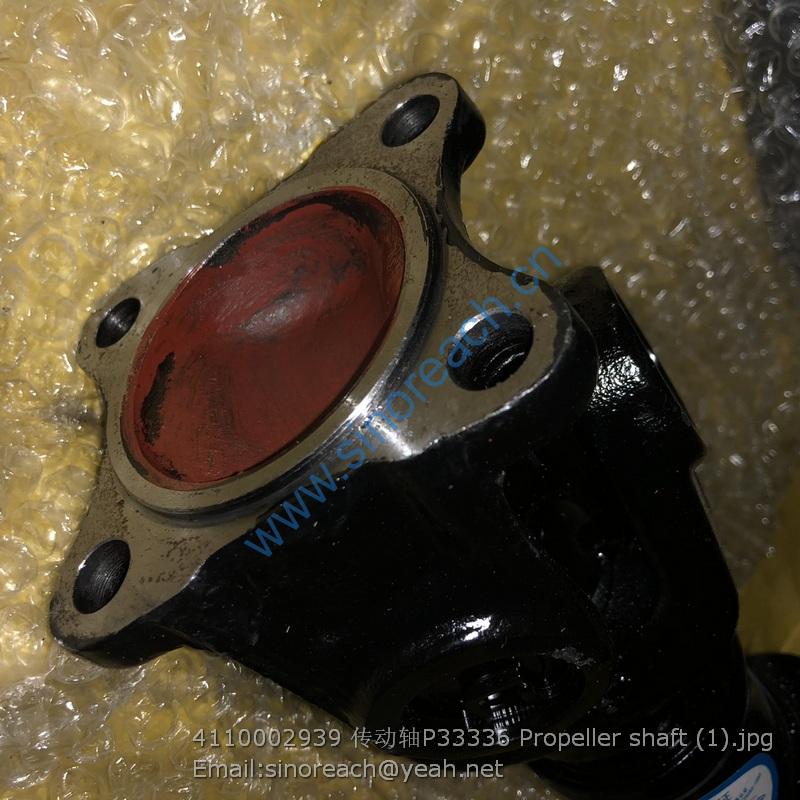

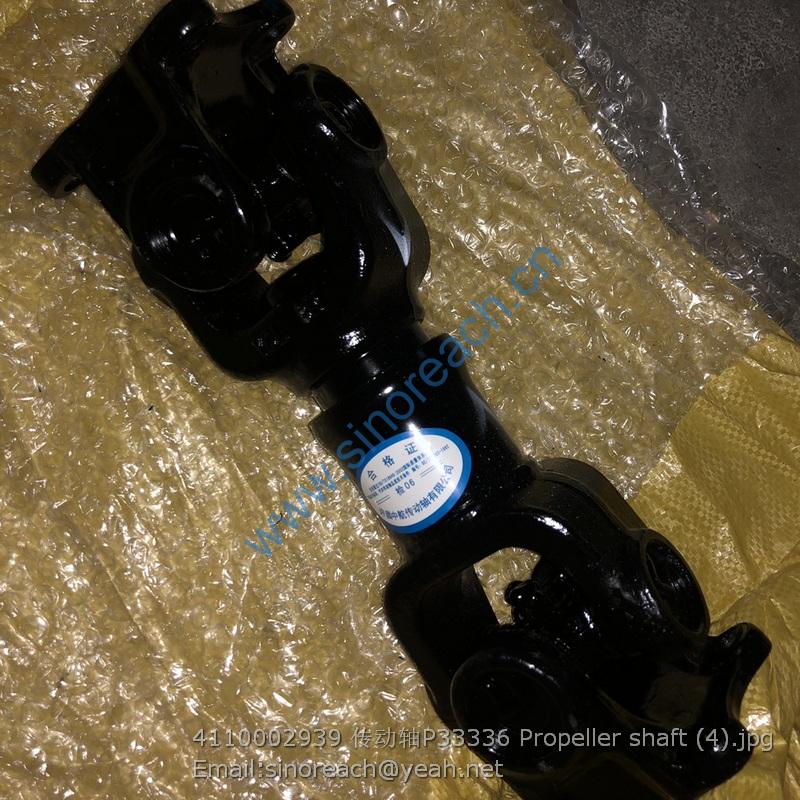

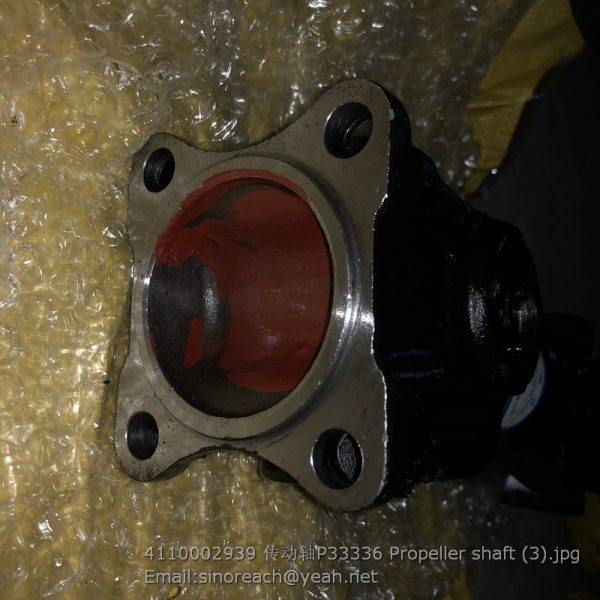

4110002939 Propeller shaft P33*336 SDLG PARTS

1 29050006521 螺栓 Screw Y 4
2 4013000072 螺母GB889.2-M12*1.25EpZn-10 Lock nut Y 8
3 4110002939 传动轴P33*336 Propeller shaft Y 1
4 29050006541 螺栓 Screw Y 4
5 4110002900 变速箱BD06 Transmission N 1
6 29050006551 橡胶垫 Rubber plate Y 2
7 4011000499 螺栓GB5785-M16*1.5*70EpZn-8.8 Bolt Y 4
8 4015000181 垫圈GB97.1-16EpZn-300HV Washer Y 4
9 4013000129 螺母GB889.2-M16*1.5EpZn-8 Lock nut Y 4
10 29050006562 加油管 Hose assembly Y 1
11 29050006571 压盖 Cover Y 1
12 4011000481 螺栓GB16674-M8*30EpZn-8.8 Bolt Y 4
13 4030000152 O形圈GB3452.1-25.0*2.65G O-ring Y 1
14 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 2
15 29050006581 管夹 Clamp Y 1

1 4021000171 P轴承GB297-30308 Roller bearing Y 2
2 4110000218029 挡圈BD05-01012 Retaining ring Y 1
3 4110002900034 深沟球轴承GB276-6209NR Ball bearing Y 2
4 4110002900035 挡圈BD06-01001 Retaining ring Y 1
5 4110000217073 挡圈04064-05020 50 Washer Y 2
6 4110002900036 齿轮BD06-01002 Gear Y 1
7 4110000218023 弹簧支承座BD05-01010 Spring seat Y 2
8 4110000218077 离合器弹簧BD05-01005 Spring Y 2
9 4110000960001 挡圈04065-01503 Ring Y 2
10 4110002900037 离合器活塞压板BD06-01003 Plate Y 2
11 4110000218036 垫板BD05-01004 Washer Y 12
12 4110000218095 磨擦片BD05-01300 Friction disc Y 12
13 4030000035 O形圈GB3452.1-53.0*5.30G O-ring Y 2
14 4110002900038 活塞BD06-01101 Piston Y 2
15 4110000218094 密封环BD05-01103 Spacer ring Y 2
16 4110002900043 前进离合器壳体BD06-01200 Clutch body Y 1
17 4110000960002 螺塞07043-70108 Plug Y 2
18 4110000218093 密封环BD05-01008 Spacer ring Y 3
19 4021000010 滚动轴承GB276-6009 Ball bearing Y 2
20 4110000499081 孔用挡圈04065-07525 Snap ring Y 2
21 4110002900040 挡圈BD06-01007 Retaining ring Y 1
22 4110002900044 齿轮BD06-01006 Gear Y 1
23 4110002900045 挡圈BD06-01009 Retaining ring Y 1

1 4110000960005 螺栓01010-81025 Screw Y 6
2 4110000004001 弹性垫圈01602-21030 Retaining ring Y 6
3 4110000218048 端盖BD05-00018 Cover plate Y 1
4 4110002900027 O型圈07000-12085 O-ring Y 1
5 4021000171 P轴承GB297-30308 Roller bearing Y 2
6 4110002900028 齿轮BD06-00017-04 Gear Y 1
7 4110002900029 齿轮BD06-00002 Gear Y 1
8 4110002900030 中间轴BD06-00003 Shaft Y 1
9 4110002900024 隔套BD06-00020 Spacer Y 1
10 4110002900031 密封垫BD06-00006 Sealing washer Y 1
11 4110002900032 调整环BD06-00029 Adjusting ring Y 1
12 4110002900033 端盖BD06-00004 Cover Y 1
13 4110000499027 止动片1BD08-00003 Retaining ring Y 1
14 4110001984058 六角螺栓M6*6 BD08-00050 Screw Y 1
15 4110000499029 调整螺丝1BD08-00005 Adjuster bolt Y 1

1 4110002900017 开口销04050-14030 Split pin Y 2
2 4110000218080 螺母BD05-00010 Nut Y 2
3 4110000218022 大垫圈01643-32260 Washer Y 2
4 4110000960011 O形圈07000-13032 O-ring Y 2
5 4110000218050 法兰盘BD05K-03000 Flange Y 1
6 4110002900021 骨架油封07012-00050 Sealing ring Y 2
7 4110000960006 螺栓 M12X25 01010-81225 Screw Y 4
8 4110000160054 垫圈01602-21236 Gasket Y 8
9 4110000218110 轴承座BD05-00008 Seat Y 1
10 4110002900022 O型圈105*3.1 07000-12105 O-ring Y 4
11 4021000171 P轴承GB297-30308 Roller bearing Y 2
12 4110002900023 输出齿轮BD06-00016-04 Gear Y 1
13 4110002900024 隔套BD06-00020 Spacer Y 1
14 4110002900025 隔套BD06-00019 Spacer Y 1
15 4110000218100 输出轴BD05L-00003 Output shaft Y 1
16 4110000218111 轴承座BD05L-00002 Seat Y 1
17 4110000960007 螺栓 M12X35 01010-81235 Screw Y 4
18 4110000218105 制动器支座ZL15E-00002 Seat Y 1
19 4110000013028 制动器总成BD05-14000C Brake system Y 1
20 4110000004001 弹性垫圈01602-21030 Retaining ring Y 12
21 4110002900026 螺钉01252-71030 Screw Y 4
22 4110000218049 法兰BD05K-00001 Flange Y 1
23 4110000960005 螺栓01010-81025 Screw Y 8
