Description

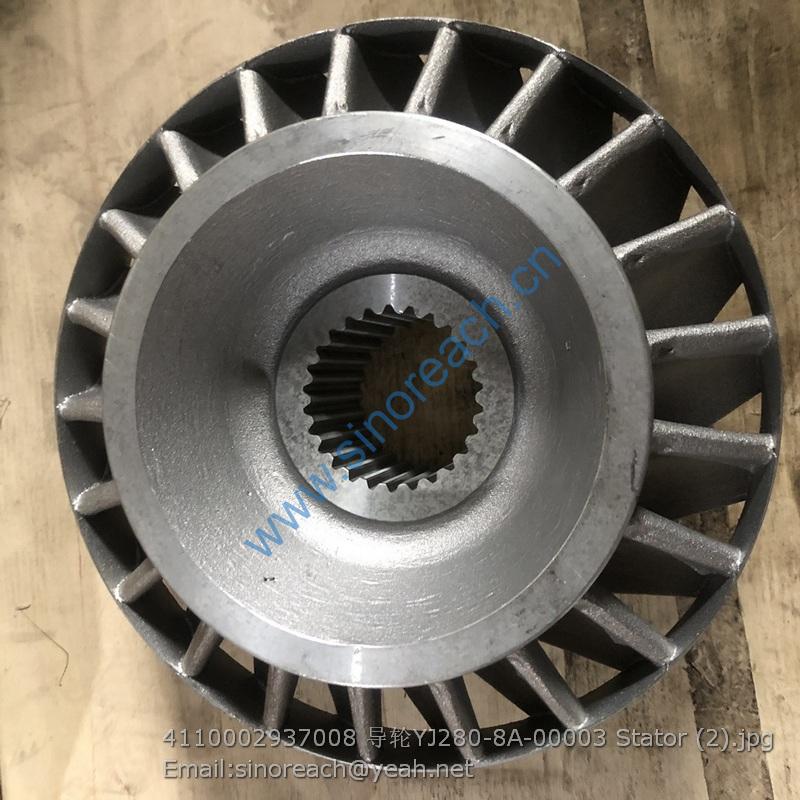

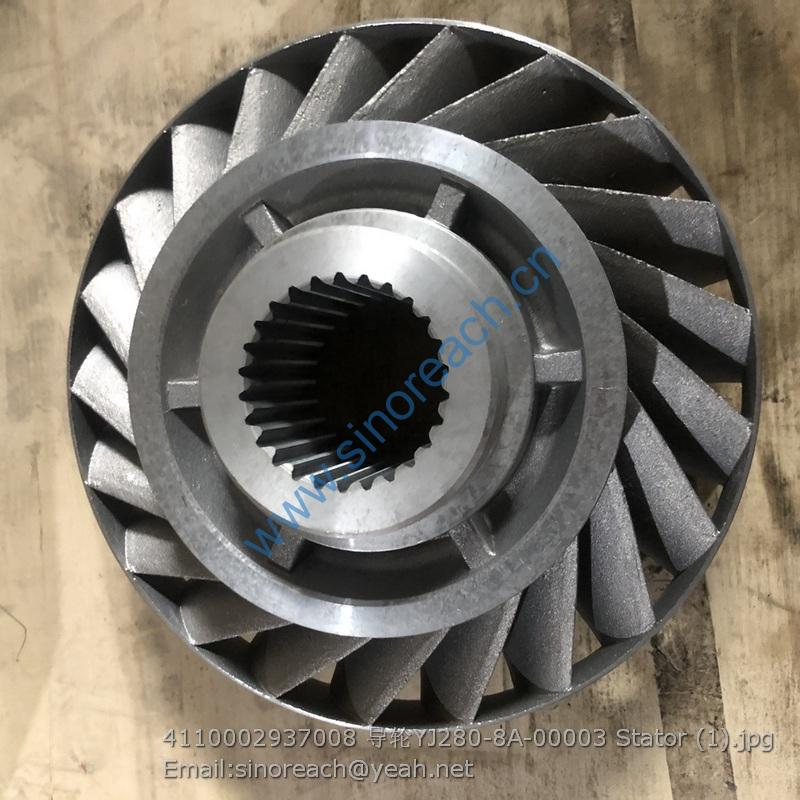

4110002937008 Stator YJ280-8A-00003 SDLG

1 4110000960006 螺栓 M12X25 01010-81225 Screw Y 15
2 4110000160054 垫圈01602-21236 Gasket Y 16
3 4110000011116 圆垫板YB315Z5-04 Shim Y 1
4 4110000217071 弹性板YJ265-00002 Plate Y 1
5 4110000217072 弹性板总成YJ265-10000 Plate Y 1
6 4110000518002 螺母01580-00806 M8 Nut Y 24
7 4110000084130 垫圈8 01602-20825 Washer Y 40
8 4110000194006 螺母M12-01580-11210 Nut Y 9
9 4110002937006 罩轮YJ280-8A-00001 Cover Y 1
10 4110000217073 挡圈04064-05020 50 Washer Y 3
11 4021000011 滚动轴承GB276-6010 Ball bearing Y 5
12 7200000804 垫板YJ280-4A-10002 Plate N 1
13 4110002937012 涡轮YJ280-8A-20001 Turbine rotor N 1
14 4110000217062 挡圈04064-03818 38 Washer Y 2
15 7200000807 涡轮毂YJ280-4A-10001 Turbo housing kit N 1
16 7200000809 铆钉8*2004400-00820 Rivet N 10
17 4110000217064 挡圈04064-05520 55 Washer Y 1
18 4110002937008 导轮YJ280-8A-00003 Stator Y 1
19 4030000616 O形圈GB3452.1-300*3.55G O-ring Y 1
20 4110002937004 泵轮YJ280-7A-00004 Impeller Y 1
21 4110000011097 垫圈10 01602-11030 Washer Y 3
22 4110002525001 螺栓01010-80835 M8*35 Screw Y 24
23 4110000004016 O 型圈 130×3.1 07000-E2130 O-ring Y 1
24 4110000084106 挡圈04065-01104 Retaining ring Y 1
25 4021000113 滚动轴承GB276-6212 Ball bearing Y 1
26 4110002937009 泵轮座YJ280-8A-00005 Seat Y 1
27 4110000084064 定位销ZL30D-11-22 Pin Y 4
28 4110000004019 螺栓 M8×22 01010-80822 Screw Y 8
29 4110002937011 盖板YJ280-8A-10001 Cover plate N 2
30 4110002525003 螺栓01010-80816 M8*16 Screw Y 8

31 4110002937010 中节YJ280-8A-10000 Flange N 1
32 4110000217084 密封垫YJ280-4A-00016 Gasket Y 1
33 4110000217052 骨架油封ZL30D-11-54 100*120*13 Sealing ring Y 1
34 4110000004001 弹性垫圈01602-21030 Retaining ring Y 38
35 4110000960010 螺栓Bolt M10X30 01010-81030 Screw Y 21
36 4110000004020 螺栓 M10×40 01010-81040 Screw Y 12
37 4110000217095 挡圈20 04064-02010 Washer N 1
38 4110000004014 油泵轴YJ280-4A-00017 Pump shaft Y 1
39 4110000217065 挡圈04064-08025 80 Washer Y 1
40 4110000004013 轴套YJ280-4A-00009 Bushing Y 2
41 4110000217046 齿轮YJ280-4DL-00002 Gear Y 2
42 4110000217049 呼吸器YJ320-20000 Breather cap Y 1
43 4110000217067 吊环螺钉04530-11222 M12×22 Screw Y 1
44 4110002937001 齿轮箱YJ280-1C-00001 Gear housing Y 1
45 7200000836 挡圈3004065-03012 Retaining ring Y 1
46 4110000217043 油泵轴YJ280-4A-00010X Shaft N 1
47 4110000217045 齿轮YJ280-4DL-00001 Gear Y 1
48 4110000217061 挡圈04064-01030 100 Washer Y 1
49 4110000217051 密封环ZL30D-11-19 Spacer ring Y 2
50 4110000004023 导轮座 YJ280-4A-00014 Seat Y 1
51 7200000842 分油套YJ280-4A-00011 Sleeve Y 1
52 4110000217033 螺塞07043-00312 Plug Y 1
53 4110000218006 O 形圈07002-02434 O-ring Y 1
54 4110000218083 螺塞07044-12412 Plug Y 1
55 4110002937005 标牌YJ280-7A-BP04 Name plate N 1
56 7200000846 铆钉3*6 04418-03060 Rivet Y 4
57 4110000217069 密封环YJ265-00014 Sealing ring Y 1
58 4110002937003 接头YJ280-4C-00007 Connection piece Y 1
59 4110002937007 涡轮轴YJ280-8A-00002 Turbine shaft Y 1
60 4110000217001 减压阀YJ320-10000 Pressure reducing valve Y 1

61 4110000960005 螺栓01010-81025 Screw Y 4
62 4021000021 滚动轴承GB276-6308 Ball bearing Y 1
63 4110000217066 挡圈04065-09030 90 Washer Y 1
64 4110000217097 O型圈 07000-02125 O-ring Y 1
65 4110000217037 纸垫YJ265-00012 Gasket Y 1
66 4110000217099 回油阀YJ265-40000 Oil valve Y 1
67 4110002937002 油封座YJ280-1C-00003 Seat Y 1
68 4110002580011 骨架油封07012-70055 Sealing ring Y 1
69 4110000217057 螺栓01010-81095 M10*95 Screw Y 4
70 4110000217047 输出法兰YJ315D-00020B Flange Y 1
71 4110000217048 垫片1YJ315D-00021B Rubber washer Y 1
72 4110000217036 O形圈YJ315D-00022B O-ring Y 1
73 4110000217038 垫片1YJ280-1C-00004 Rubber washer Y 1
74 4110000960007 螺栓 M12X35 01010-81235 Screw Y 1

1 4011000568 螺栓GB5786-M12*1.25*40EpZn-10.9 Bolt Y 4
2 4013000072 螺母GB889.2-M12*1.25EpZn-10 Lock nut Y 8
3 4110002939 传动轴P33*336 Propeller shaft Y 1
4 29050006541 螺栓 Screw Y 4
5 4110002081 变速箱总成DB55 022 001 Transmission assembly Y 1
6 29050006551 橡胶垫 Rubber plate Y 2
7 4011000499 螺栓GB5785-M16*1.5*70EpZn-8.8 Bolt Y 4
8 4015000181 垫圈GB97.1-16EpZn-300HV Washer Y 4
9 4013000129 螺母GB889.2-M16*1.5EpZn-8 Lock nut Y 4
10 29050006562 加油管 Hose assembly Y 1
11 29050006571 压盖 Cover Y 1
12 4011000481 螺栓GB16674-M8*30EpZn-8.8 Bolt Y 4
13 4030000152 O形圈GB3452.1-25.0*2.65G O-ring Y 1
14 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 2
15 29050006581 管夹 Clamp Y 1
16 29050006591 加油弯管 Pipe N 1
17 4017000008 喉箍JB8870-d40 Clamp Y 2
18 4090000072 胶管JB8406-B25*200 Hose Y 1
19 29050006601 上加油管 Pipe N 1
20 29050006611 油盖 Cap plug Y 1
21 2908000653001 突缘叉130-2201023B Link yoke Y 2
22 2908000653002 卡簧2201061N Lock ring Y 8
23 2908000652002 万向节十字轴总成6700-33093 Spider Y 2
24 4110002086003 油杯M6 JB/T7940.1-1995 Grease cup N 1

1 4110002081001 箱体DB55 301 001 Transmission housing Y 1
2 4110002081002 箱体纸垫DB55 301 003 Sealing ring Y 1
3 4011000085 螺栓GB5783-M10*35EpZn-8.8 Bolt Y 29
4 4015000025 垫圈GB93-10-65Mn Spring washer Y 47
5 4110002081003 端盖组件DB55 201 003 End cover N 1
6 4110002081004 圆柱销M12*40GB/T119.1-2000 Pin N 2
7 4110000184209 气孔帽Q/S29-06A-400 Breather cap Y 1
8 4110002081005 透气帽接头DB55 301 033A Breather cap N 1
9 4011000777 螺栓GB5783-M10*30-8.8 Screw Y 10
10 4110002081006 手制动器DB55 109 001 Parking brake Y 1
11 4011000993 螺栓GB5783-M10*25EpZn-10.9 Bolt Y 8
12 4110002081007 A型密封垫圈22 Q20-08 Sealing washer Y 1
13 4110002081008 螺塞M22×1.5Q21-15B Plug N 1
14 4110002081009 加油口法兰DB55 301 016 Flange Y 1
15 4110002081010 加油口法兰纸垫DB55 301 017 Sealing ring Y 1
16 4011000724 螺栓GB5783-M8*25-8.8 Bolt Y 10
17 4015000036 垫圈GB93-8-65Mn Spring washer Y 14
18 4110002081011 螺塞DB55 301 034 Plug Y 1
19 4110002081012 右连接座DB55 301 020 Attachment bracket N 1
20 4110002081013 左连接座DB55 301 026 Attachment bracket N 1
21 4011001001 螺栓GB5783-M18*45-10.9 Screw Y 8
22 4015000029 垫圈GB93-18-65Mn Spring washer Y 8
23 4110002081014 操纵阀DB55 159 001X2 Control valve Y 1
24 4110002081015 操纵阀纸垫DB55 301 005A Sealing ring Y 1
25 4110002081016 操纵阀过渡板DB55 301 004B Bulkhead plate N 1
26 4110002081017 操纵阀过渡板纸垫DB55 301 006B Sealing ring Y 1
27 4110002081018 操纵阀隔板DB55 301 035A Bulkhead plate N 1
28 4110002081019 操纵阀隔板纸垫DB55 301 036A Sealing ring Y 1
29 4014000402 螺钉GB70.1-M10*25-8.8 Screw Y 5
30 4110002081020 螺塞M27*1.5DB55 301 040 Plug Y 1
