Description

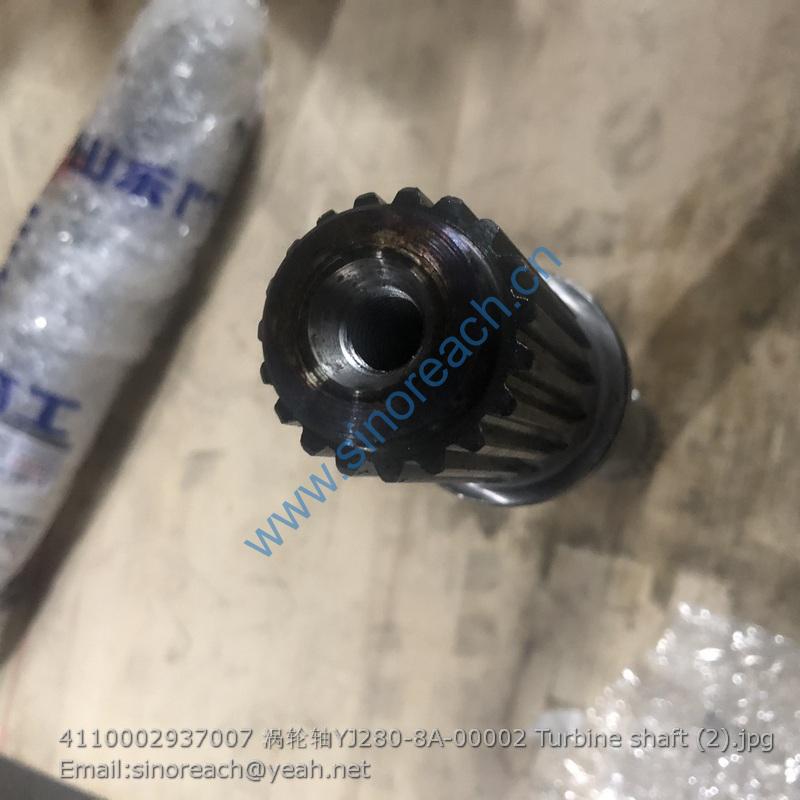

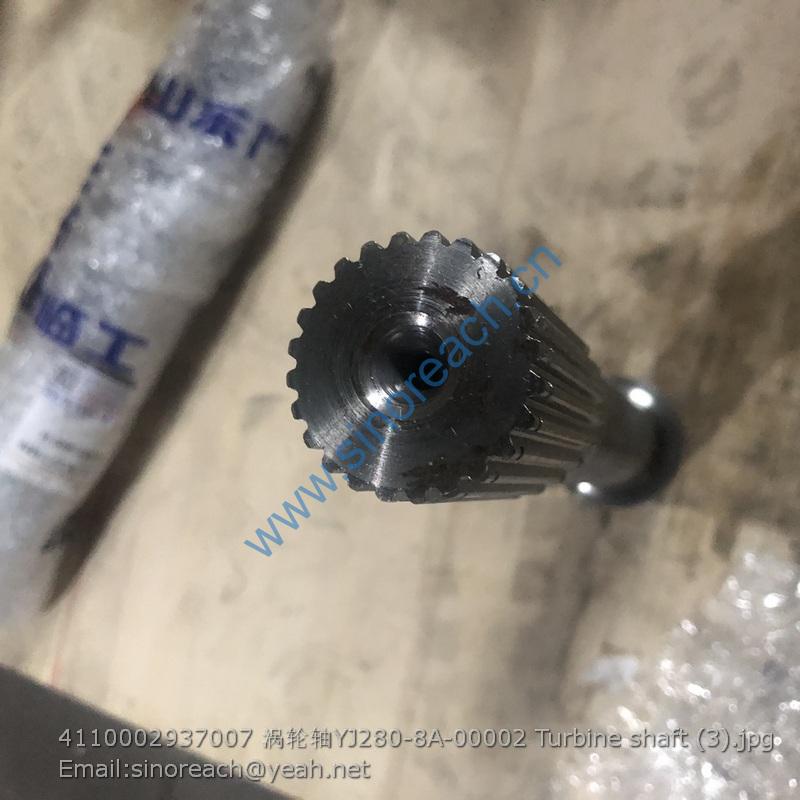

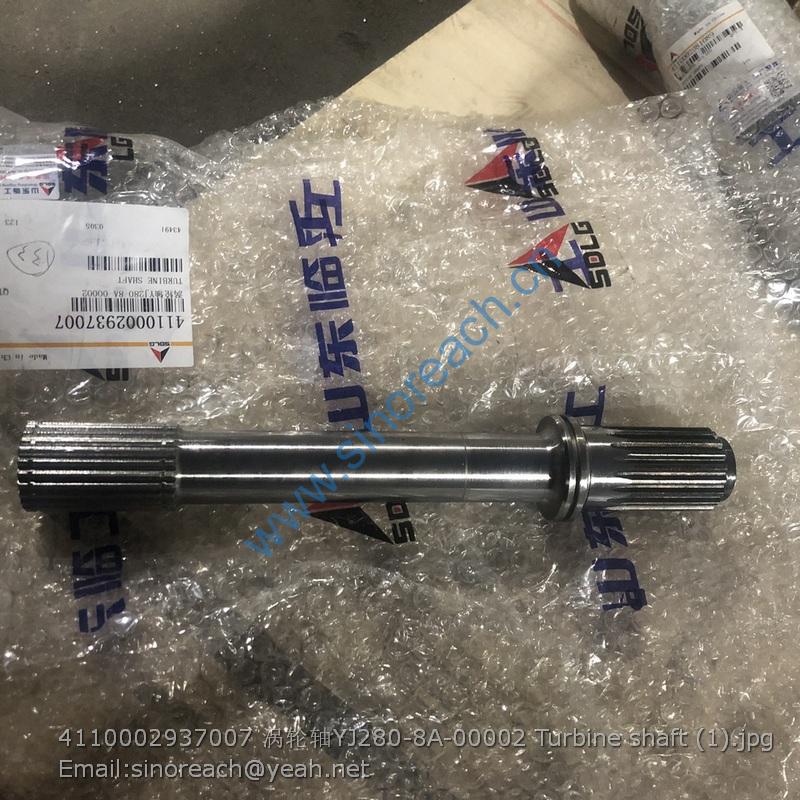

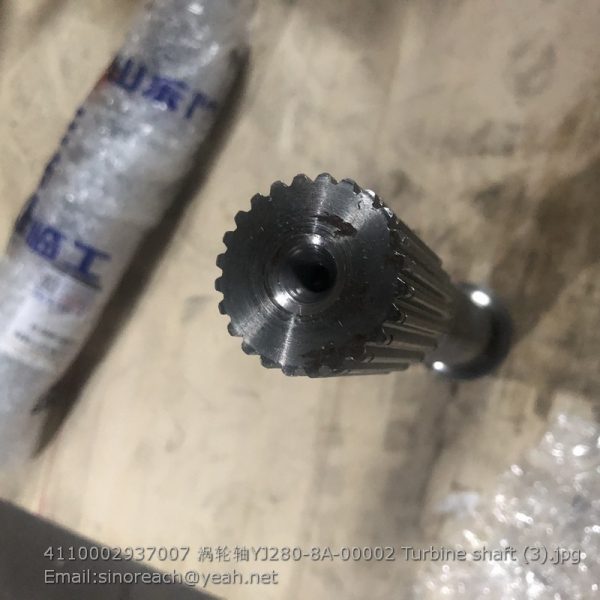

4110002937007 Turbine shaft YJ280-8A-00002 SDLG LOADER PARTS

1 4120006960002 缸筒总成24A139400 Cylinder tube Y 1
2 4120006960003 活塞杆总成24A114350 Piston rod Y 1
3 4120006539003 缸盖24C105130 Cover Y 1
4 4120006442004 衬套24S255251 55*60*25 Bushing Y 1
5 4120006539004 钢丝挡圈-孔用24C090120 Retaining ring Y 1
6 4120006960004 密封件-缓冲24H005504 Sealing N 1
7 4120006960001 密封件包24A103210S Sealing kit Y 1
8 4120006960005 挡圈-U型圈24E005515 Retaining ring Y 1
9 4120006960001 密封件包24A103210S Sealing kit Y 1
10 4120006539006 钢丝挡圈-孔用24C090160 Retaining ring Y 1
11 4120006960001 密封件包24A103210S Sealing kit Y 1
12 4120006960001 密封件包24A103210S Sealing kit Y 1
13 4120006960001 密封件包24A103210S Sealing kit Y 1
14 4120006539007 活塞24C106120 Piston Y 1
15 4120006960001 密封件包24A103210S Sealing kit Y 1
16 4120006960001 密封件包24A103210S Sealing kit Y 1
17 4120006960001 密封件包24A103210S Sealing kit Y 1
18 4120006960001 密封件包24A103210S Sealing kit Y 2
19 4090000168 钢球GB308-5-GCr6 Ball Y 1
20 4120005872008 螺钉-内六角凹端紧定24T908161 Screw Y 1
21 4120006960006 轴套24C116340 Bushing Y 2
22 4120006960007 固定座24A154270 Anchor plate Y 1
23 4120006442009 垫圈-标准型弹簧24T401001 10 Washer Y 2
24 4120006442010 螺栓-六角头全螺纹24TB10253 M10*25L Screw Y 2

14 4014000579 P-螺钉GB78-M12*25 Screw Y 1
15 4120000979105 活塞HSGL-100/55*404-4 Piston Y 1
16 4120006960102 油口护帽1-HSGL-100/55*404-5 Cover Y 1
17 4120000553115 轴套HSGL-90/50*424-2 Bushing Y 2
18 4120006960103 油口护帽2-HSGL-100/55*404-6 Cover Y 1
19 4120006960104 连接板HSGL-100/55*404-1.3 Connecting plate Y 1
20 4120006960105 螺栓GB5875-2000-M10*25 Screw Y 2
21 4015000025 垫圈GB93-10-65Mn Spring washer Y 2
22 4120006960106 光孔护盖HSGL-100/55*404-7 Cover Y 4

1 29180007631 快换支架 Quick attachment Y 1
2 29180014331 快换装置液压总成 Quick-change equipment hydraulic system N 1

1 29180014311 过渡钢管 Pipe Y 2
2 4011001288 螺栓GB16674.1-M10*50flZnyc-8.8-480 Screw Y 2
3 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 2
4 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 2
5 29180013981 固定压板 Plate Y 4
6 29180014301 电磁阀固定板 Bracket Y 1
7 4011001295 螺栓GB16674.1-M8*25flZnyc-8.8-480 Screw Y 4
8 4120000368 电磁阀4WE6E61B/CG24NZ4B08 Solenoid valve Y 1
9 4014000513 螺钉GB70.1-M8*30flZnyc-8.8-480 Screw Y 4
10 29180007862 电磁阀座 Valve seat Y 1
11 4041000997 软管LGB127-004040 Hose Y 2
12 4041001023 组合接头LGB143-01608 Nipple Y 3
13 4041000627 软管LGB128-004055 Hose assembly Y 1
14 4041000592 软管LGB125-004055 Hose assembly Y 1
15 4041000604 直接头LGB120-01614 Nipple Y 6
16 4041000767 O形圈LGB168-11124 O-ring Y 8
17 4041002892 软管LGB127-404082 Hose Y 2
18 4011001405 螺栓GB5783-M8*40flZnyc-8.8-480 Screw Y 2
19 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 2
20 29180007961 固定压板 Plate Y 4
21 29180007971 快换联钢管 Pipe Y 2
22 4041000608 软管LGB128-204110 Hose assembly Y 2
23 4120001741 液压锁BQ2201-7E Check valve Y 1
24 4014000615 螺钉GB70.1-M8*55flZnyc-8.8-480 Screw Y 2
25 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 2
26 29180008001 直接头 Nipple Y 2
27 29180008011 液压锁至油缸大腔油管 Hose assembly Y 1
28 29180008041 接头体 Nipple Y 2
29 4030000058 垫圈JB1002-18-T2 Washer Y 2
30 29180008071 液压锁至油缸小腔油管 Hose assembly Y 1
